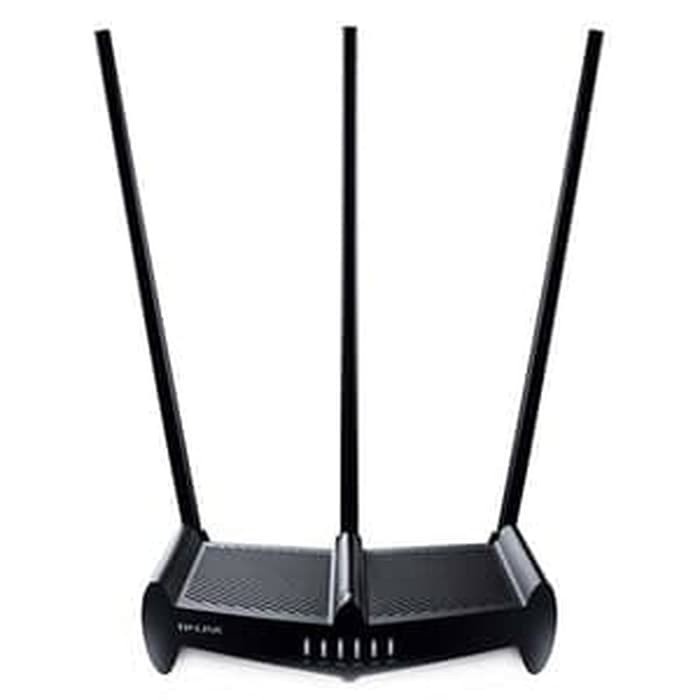

TP-Link TL-WR941HP 450Mbps High Power Wireless N Router M10

Detail TP-Link TL-WR941HP 450Mbps High Power Wireless N Router M10

Overview Of TP-Link TL-WR941HP 450Mbps High Power Wireless N Router
Superior Range High power amplifiers and high-gain antennas provide enhanced wireless range up to 10,000 sq ft.
Wall-Penetrating Wi-Fi Enhanced Wi-Fi signal cuts through walls and obstacles, eliminating dead zones
3 Modes Functionality Offers three wireless modes, including Router, Range Extender, and Access Point
450Mbps Wireless Speed Ideal for video streaming, online gaming and VoIP
HARDWARE FEATURES
Interface 4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
Button Wireless On/Off Button, RE Button, WPS Button
Reset Button, Power On/Off Button
Antenna 3*9dBi Detachable Omni Directional Antenna
(RP-SMA)
External Power Supply 12VDC / 1.5A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 9.0 x 7.5 x 1.9 in. (227.5 x 190 x 48.3mm)
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 450M: -71dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -91dBm@8% PER
6M: -89dBm@10% PER
1M: -97dBm@8% PER
Transmit Power CE: 20dBm (2.4GHz)
FCC: 30dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge,
WMM, Wireless Statistics
Wireless 64/128/152-bit WEP / WPA / WPA2,
WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond
Management Access Control
Local Management
Remote Management
DHCP Server, Client, DHCP Client List,
Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control,
Host List, Access Schedule, Rule Management
