TP-LINK TL-WN781ND : 150Mbps Wireless PCI Express Adapter

Detail TP-LINK TL-WN781ND : 150Mbps Wireless PCI Express Adapter

Mematuhi standar IEEE 802.11n, TL-WN781ND dapat dengan mudah membangun jaringan nirkabel dan mendapatkan hingga 9X kecepatan dan 4X jangkauan produk konvensional 11g. Dibandingkan dengan produk warisan 54M, TL-WN781ND memberikan peningkatan kinerja, memungkinkan Anda untuk memiliki pengalaman berselancar yang lebih menyenangkan, termasuk file sharing, menonton streaming media
SPESIFIKASI:
Interface PCI Express
Dimensions ( W x D x H ) 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)
Antenna Type Detachable Omni Directional (RP-SMA)
Antenna Gain 2dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.400-2.4835GHz
Signal Rate 11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power <20dBm(EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Adapter
Detachable Omni directional antenna
Resource CD
Quick Installation Guide
System Requirements Windows 8.1/8(32/64bits), Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

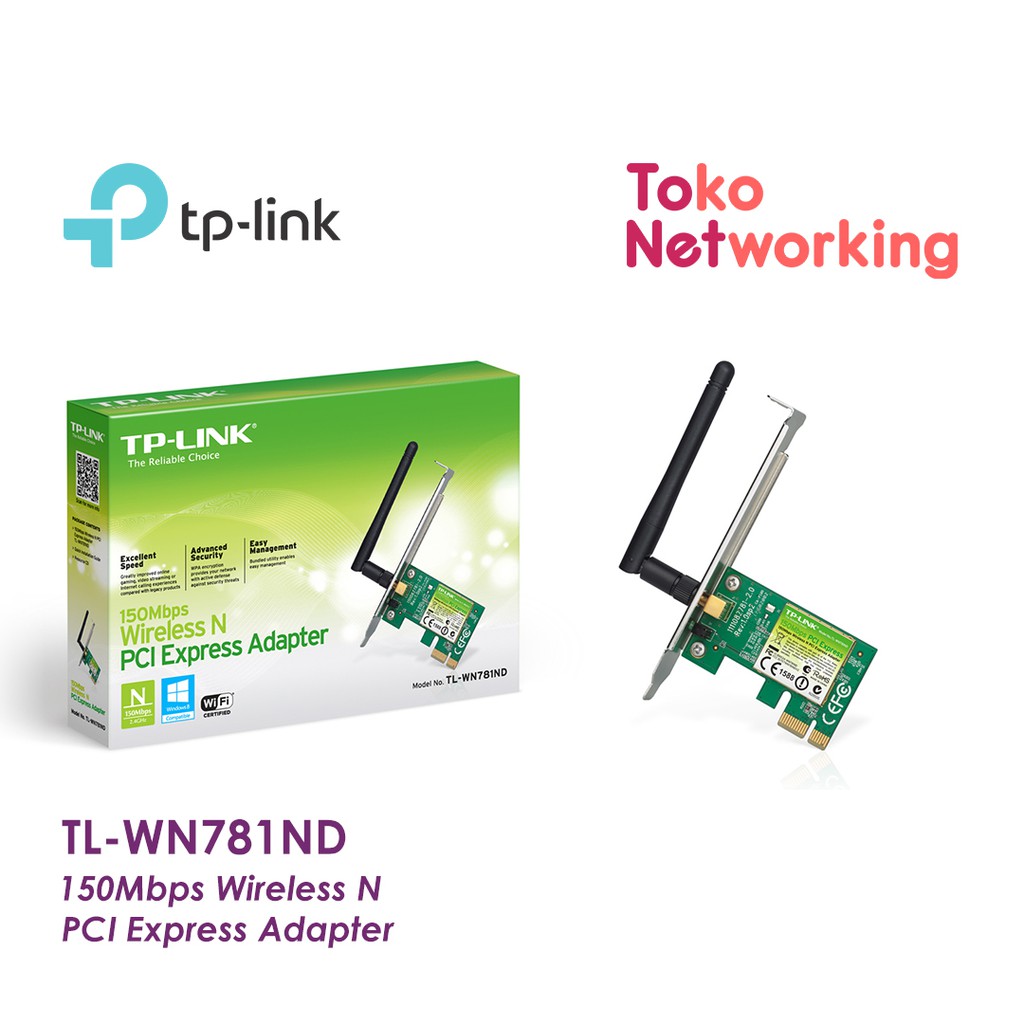

Gambar produk
