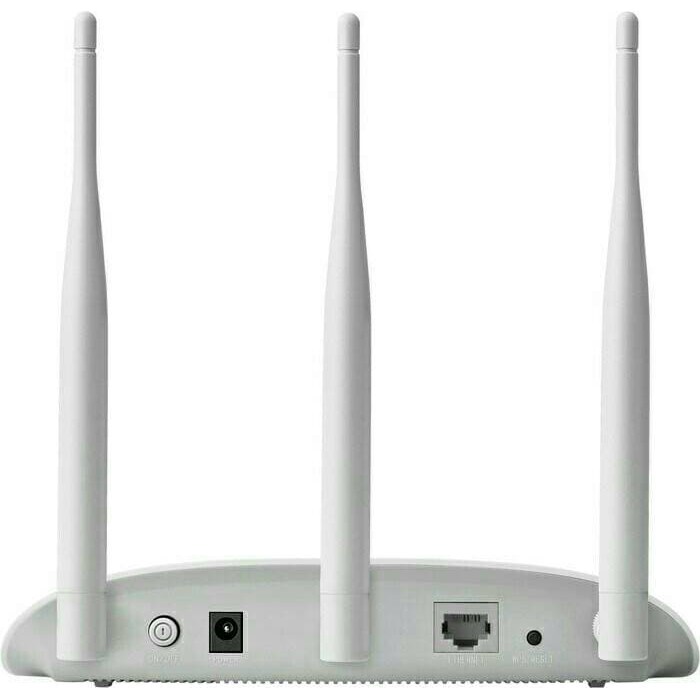

Detail TP-LINk TL-WA-901ND Wireless Access Point Wifi Adapter
TP-LINk TL-WA-901ND Wireless Access Point Wifi Adapter
-Kecepatan nirkabel hingga 300Mbps, ideal untuk video streaming, game online
-Mendukung mode operasi: Access Point, Client, Universal / WDS Repeater, Wireless Bridge
-Kemudahan setup enkripsi keamanan WPA dengan menekan tombol QSS
-Kemampuan Power over Ethernet sampai 30 meter di atas untuk penyebaran fleksibel
HARDWARE FEATURES
Interface : One 10/100M Ethernet Port(RJ45), Support Passive PoE
Button : WPS/Reset, Power On/Off
Power Consumption : 5.8W
External Power Supply : 12VDC/1A
Wireless Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ): 7.67*5.12*1.43 in.( 194.82*129.93*36.2mm)
Antenna Type : 3*5dBi Detachable Omni Directional (RP-SMA)
WIRELESS FEATURES
Frequency : 2.4-2.4835GHz
Signal Rate : 11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power : upto 20dBm(EIRP)
Wireless Modes : Access Point /Repeater (Range Extender)/ Bridge with AP/ Client/Multi-SSID/
Wireless Functions : Enable/Disable Wireless Radio; WMM (Wi-Fi Multimedia), Wireless MAC Address Filtering, Wireless Statistic, Domain Login Function
Wireless Security : 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Package Contents : Wireless Access Point TL-WA901ND
3 Detachable Omni Directional Antennas
Power Supply Unit
PoE Power Injector
Resource CD
Quick Installation Guide
RJ-45 Ethernet Cable
System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8
