TP-LINK TL-SG3428MP JetStream L2 Managed 24Port Gigabit

Detail TP-LINK TL-SG3428MP JetStream L2 Managed 24Port Gigabit

JetStream 24-Port Gigabit L2 Managed PoE+ Switch with 4 SFP Slots

- Supports 24 802.3at/af-compliant POE+ ports with a total power supply of 384W
- L2+ feature——Static Routing, helps route internal traffic for more efficient use of network resources
- IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
- L2/L3/L4 QoS and IGMP snooping optimize voice and video application
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
- Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies

Standards and Protocols :
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface :
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 1000Mbps SFP Slots
1 Console Port
1 Micro-USB Console Port

Network Media :
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF

Power Supply :
100~240VAC, 50/60Hz

PoE+ Ports(RJ45) :
Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 384W

Max Power Consumption :
29.02W (220V/50Hz with no PD connected)
468.7W (110V/60Hz with 384W PD connected)

Max Heat Dissipation :
99.02 BTU/h (with no PD connected)
1599.20 BTU/h (with 384W PD connected)

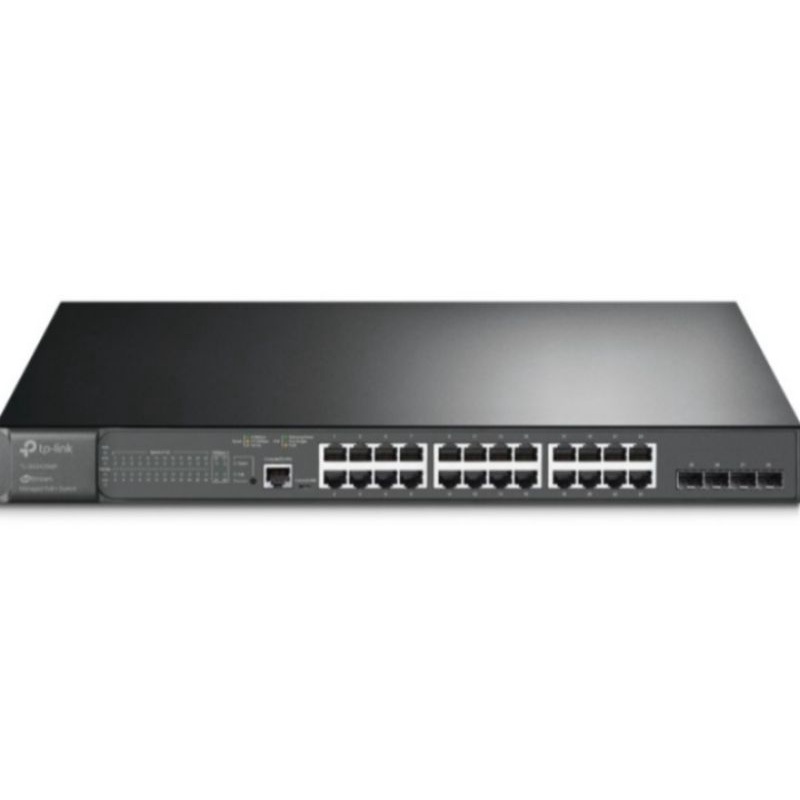

Gambar produk
