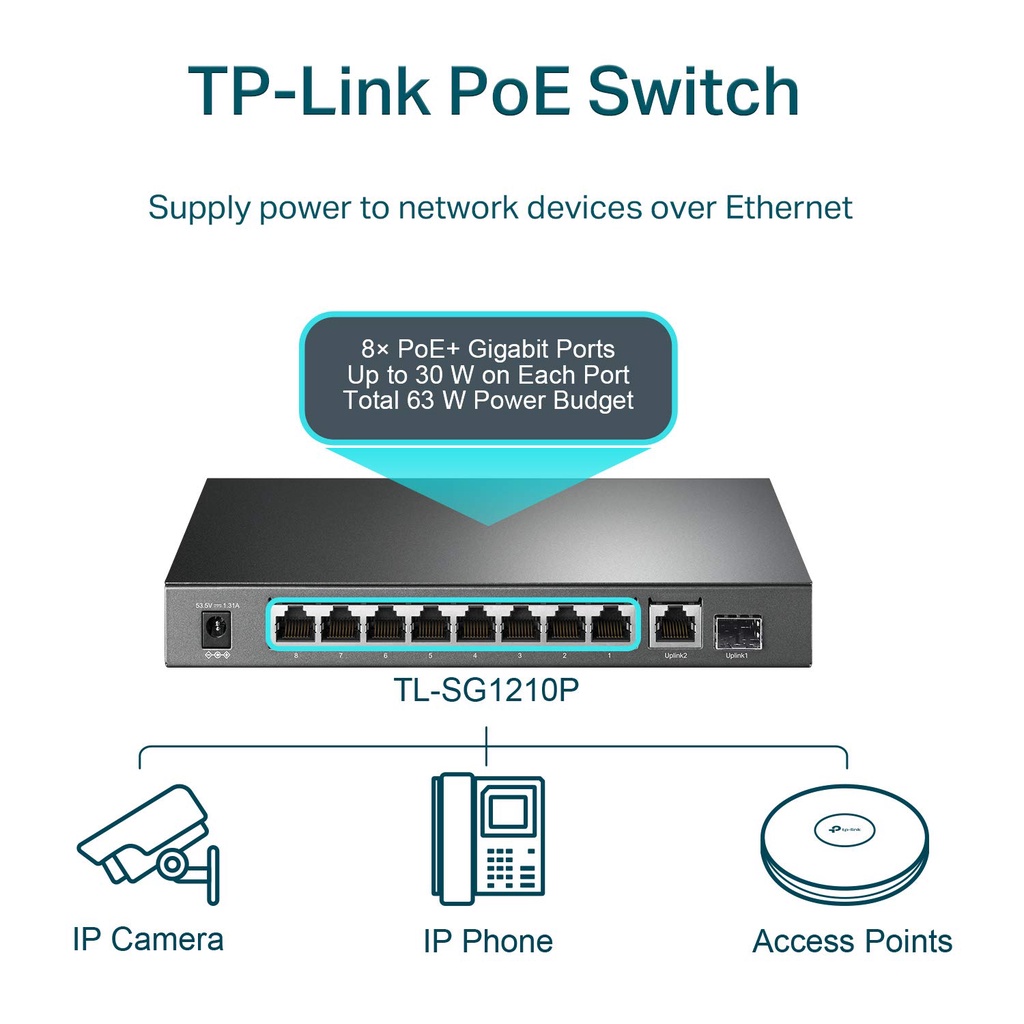

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+ N

Detail TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+ N

9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
With 8 PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs and expands office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
Easy to use, with no configuration and installation needed
HARDWARE FEATURES
Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate 14.88 Mpps
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W
Mac Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 20 Gbps
Dimensions ( W x D x H ) 209 × 126 × 26 mm
Max Power Consumption 7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected)
Max Heat Dissipation 24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG1210P, Power Adapter, Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
