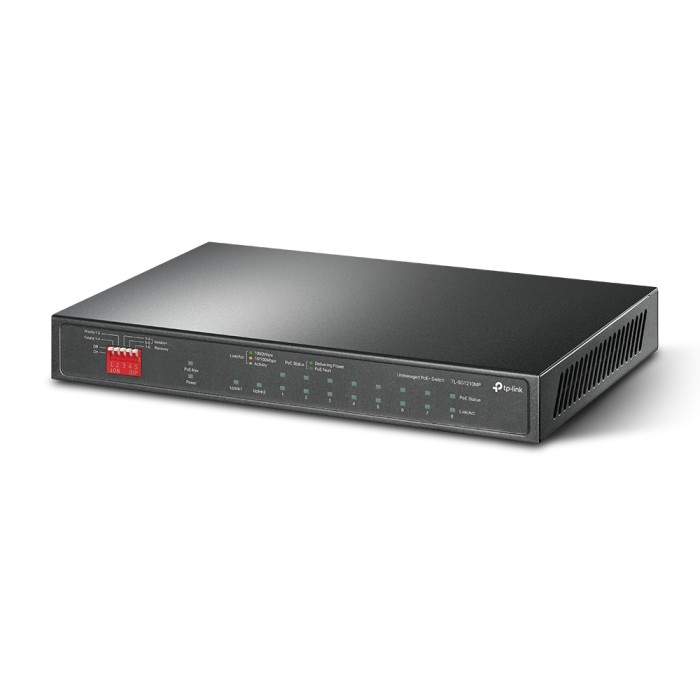

TP-LINK TL-SG1210MP 10-Port Gigabit Desktop Switch With 8-Port PoE+

SPESIFICATION :
HARDWARE FEATURES
Interface
• 9× 10/100/1000 Mbps RJ45 Ports
• 1× 1000 Mbps Combo SFP/RJ45 Port
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate
14.88 Mpps
PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 123 W
Mac Address Table
4K
Jumbo Frame
16 KB
Switching Capacity
20 Gbps
Dimensions ( W x D x H )
8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption
• 7.93 W (220V / 50Hz with no PD connected)
• 141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation
• 27.04 BTU/h (220V / 50Hz with no PD connected)
• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)

SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs

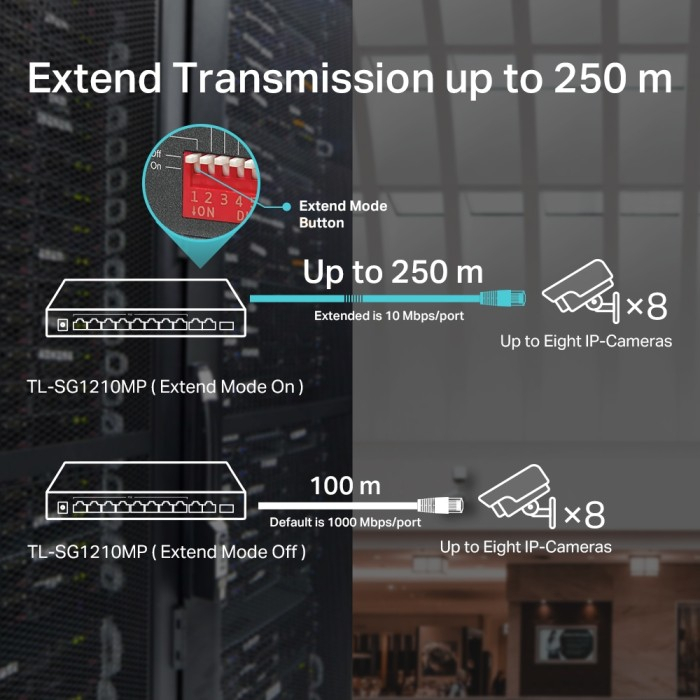

• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–4 / 5-8)
• PoE Auto Recovery (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Certification
FCC, CE, RoHS
Package Contents
• TL-SG1210MP
• Power Adapter
• Installation Guide
