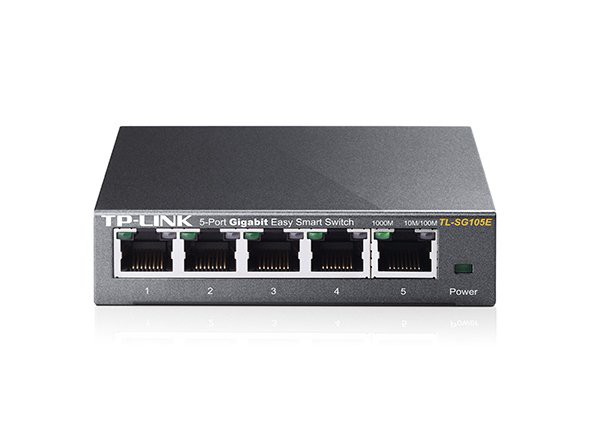

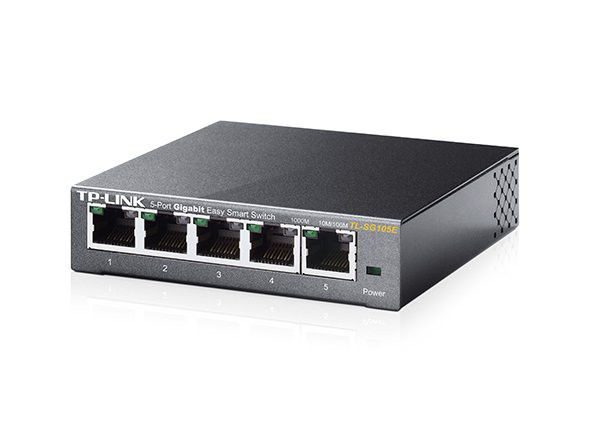

TP-Link TL-SG105E 5 Port Gigabit Smart Switch

Detail TP-Link TL-SG105E 5 Port Gigabit Smart Switch

TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged
switch, designed for Small and Medium Business networks that require simple
network management. Network administrators can effectively monitor traffic via
Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize
traffic on your business network, TL-SG105E offers Port-based/802.1p/DSCP QoS2
to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally,
port-based, tag-based and MTU VLAN can improve security and meet more network
segmentation requirements. Moreover, with its innovative energy-efficient
technology, the TL-SG105E can save up to 57% of power consumption, making it an
eco-friendly solution for your business network.
SPESIFIKASI:
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE
802.1q, IEEE 802.1p
Interface 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 2.49W (220V/50Hz)
Dimensions ( W x D x H ) 3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)
PERFORMANCE
Packet Forwarding Rate 7.4Mpps
MAC Address Table 2K
Packet Buffer Memory 1.5Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority 2
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG105E
Power Cord
Installation Guide
Resource CD
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
