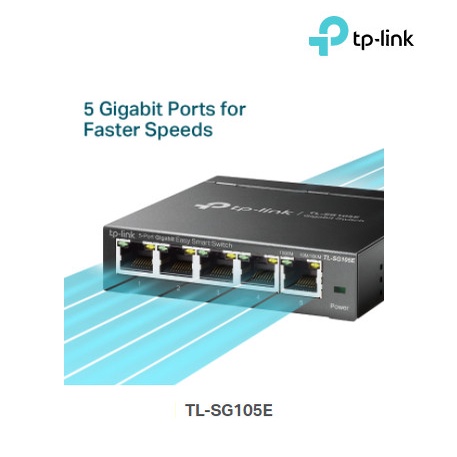

TP-Link TL-SG105E 5-port Gigabit Easy Smart Switch

Detail TP-Link TL-SG105E 5-port Gigabit Easy Smart Switch

TP-LINK TL-SG105E

5-Port Gigabit Easy Smart Switch

- 5 10/100/1000Mbps RJ45 ports

- Plug and play, with no configuration required

- Durable metal housing for physical robustness

- Easy management through the web interface or standalone Windows utility

- Green technology reduces power consumption

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface 5 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

Fan Quantity Fanless

Power Supply 100-240VAC, 50/60Hz

Dimensions (W X D X H) 3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)

PERFORMANCE

Packet Forwarding Rate 7.4Mpps

MAC Address Table 2K

Packet Buffer Memory 1.5Mb

Jumbo Frame 15KB

SOFTWARE FEATURES

Quality of Service Support Port-based/802.1p/DSCP priority 2

Support 4 priority queues

Rate Limit

Storm Control

L2 Features IGMP Snooping V1/V2/V3

Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Transmission Method Store-And-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents TL-SG105E

Power Cord

Installation Guide

Resource CD

Rubber Feet

System Requirements Microsoft Windows for running Utility

Environment Operating Temperature: 0~40 (32~104)

Storage Temperature: -40~70 (-40~158)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Contents :

- TL-SG105E

- Power Adapter

- Installation Guide

- Rubber Feet
