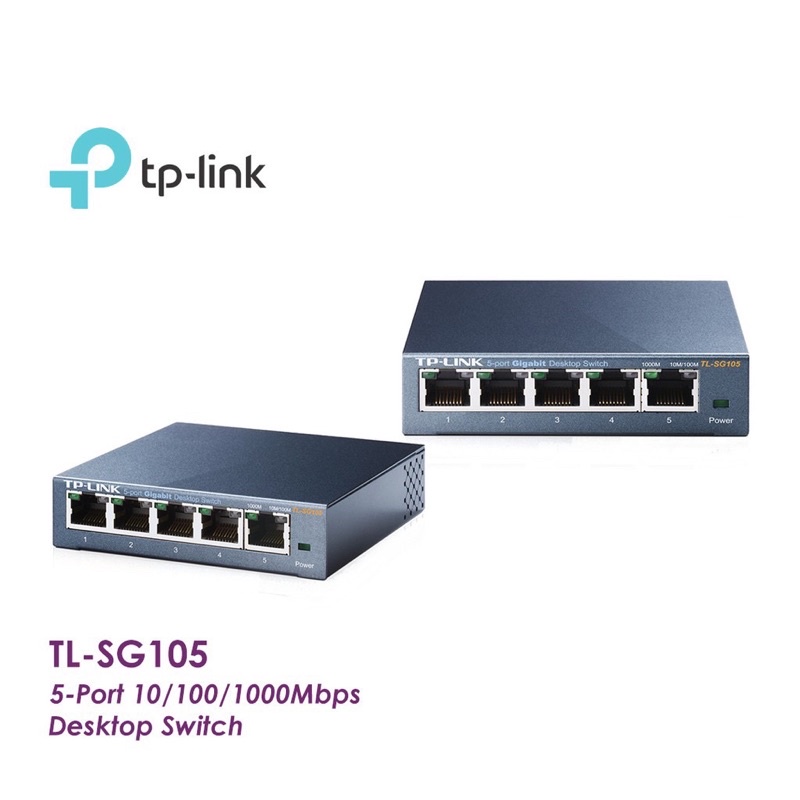

TP-LINK TL-SG105: 5-Port 10/100/1000Mbps Desktop Switch

Detail TP-LINK TL-SG105: 5-Port 10/100/1000Mbps Desktop Switch

5 port RJ45 10/100/1000Mbps Auto-Negotiation mendukung Auto-MDI/MDIX
Teknologi Green Ethernet menghemat daya hingga 65%
Kontrol aliran IEEE 802.3x menyediakan transfer data yang dapat diandalkan
Desain perumahan berbaja, desktop atau dinding
Mendukung fungsi QoS (IEEE 802.1p) dan IGMP snooping
Plug and play, tidak ada konfigurasi yang diperlukan

SPESIFIKASI:
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
Power Consumption Maximum: 3.2W (220V/50Hz)
External Power Supply External Power Adapter (Output: 9VDC / 0.6A)
LED Indicator System Power
Link, Speed and activity indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
PERFORMANCE
Packet Forwarding Rate 7.4Mpps
MAC Address Table 2K
Packet Buffer Memory 1Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Advanced Features Green Technology, saving power up to 84%
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

Gambar produk
