TP-Link TL-SG1008P 8 Gigabit RJ45 ports including 4 PoE ports, 53W PoE

Detail TP-Link TL-SG1008P 8 Gigabit RJ45 ports including 4 PoE ports, 53W PoE

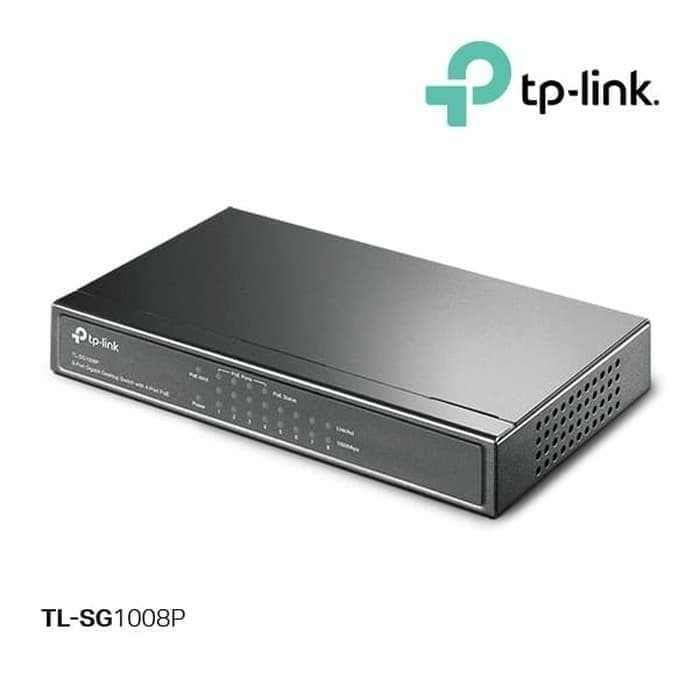

TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE

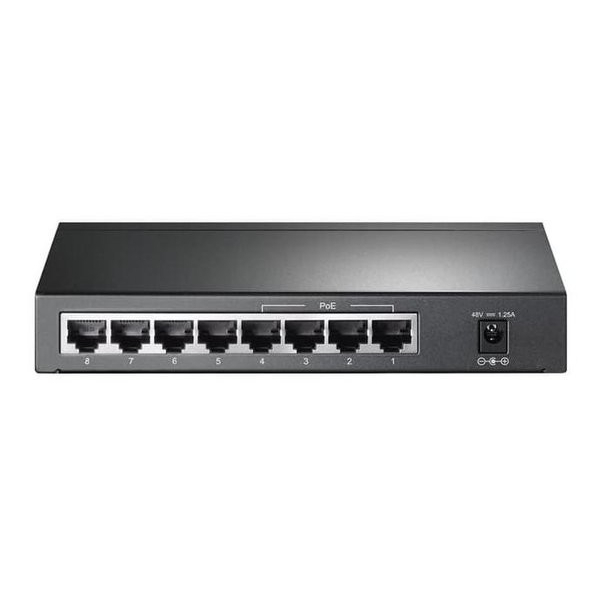

8× 10/100/1000 Mbps RJ45 ports.
4× PoE+ ports transfer data and power on individual cables.
Works with IEEE 802.3af/at compliant PDs.
Plug and Play, no configuration and installation required.
802.1p/DSCP QoS enable smooth latency-sensitive traffic.
Supports PoE power up to 30 W for each PoE port.
Supports PoE power up to 64 W for all PoE ports*.

HARDWARE FEATURES
Interface • 8× 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate 11.904 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 64 W
Mac Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 16 Gbps
Dimensions ( W x D x H ) 6.7×3.9×1.1 in (171×98×27 mm)
Max Power Consumption • 5.39 W (220/50 Hz no PD connected)
• 75 W (220/50 Hz with 64 W PD connected)
Max Heat Dissipation • 18.38 BTU/h (no PD connected)
• 225.75 BTU/h (with 64 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
• IGMP Snooping
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS
