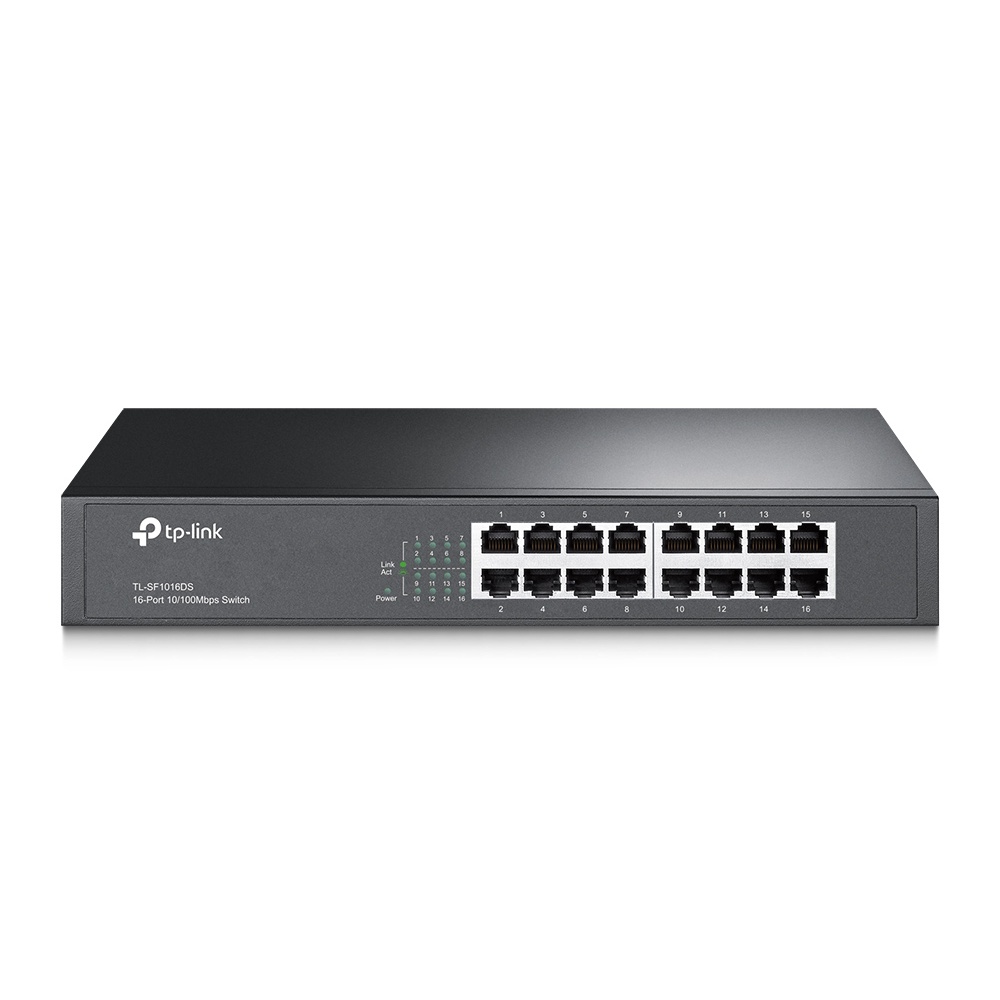

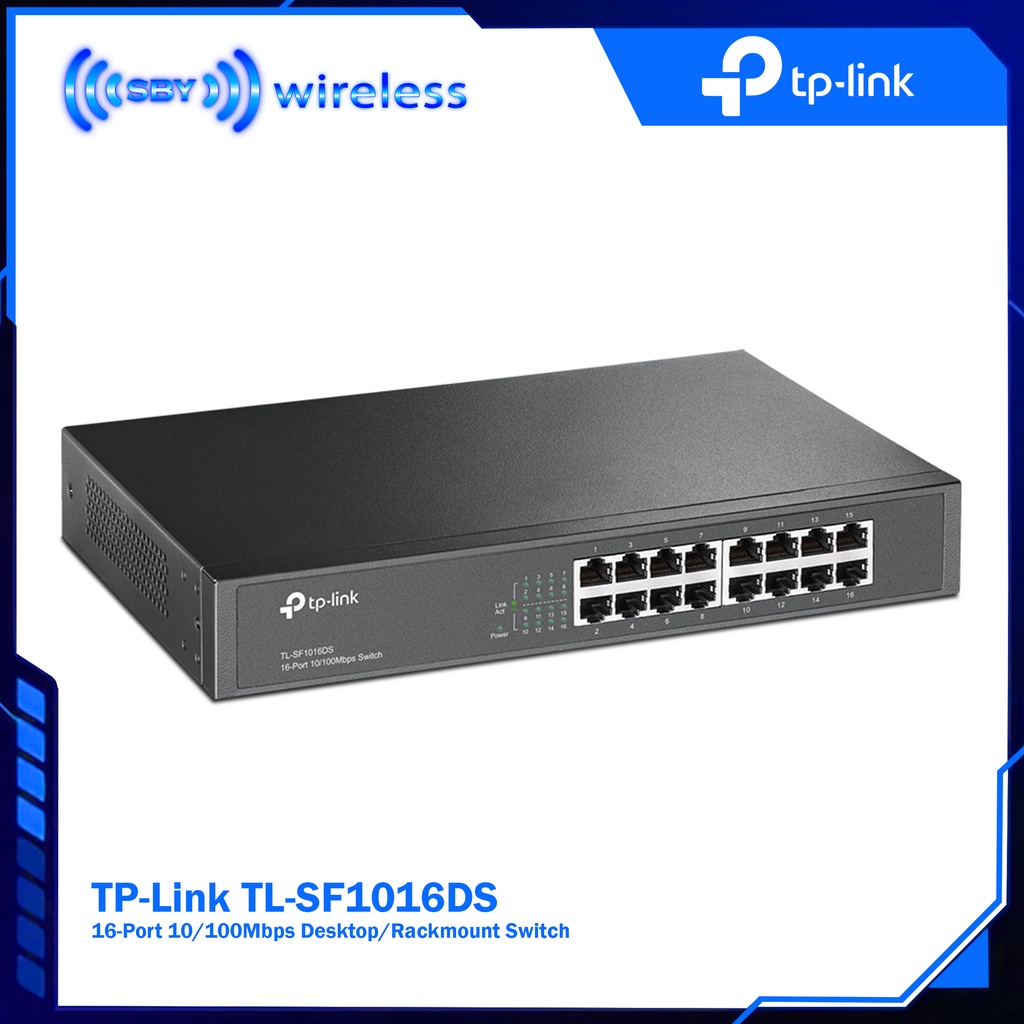

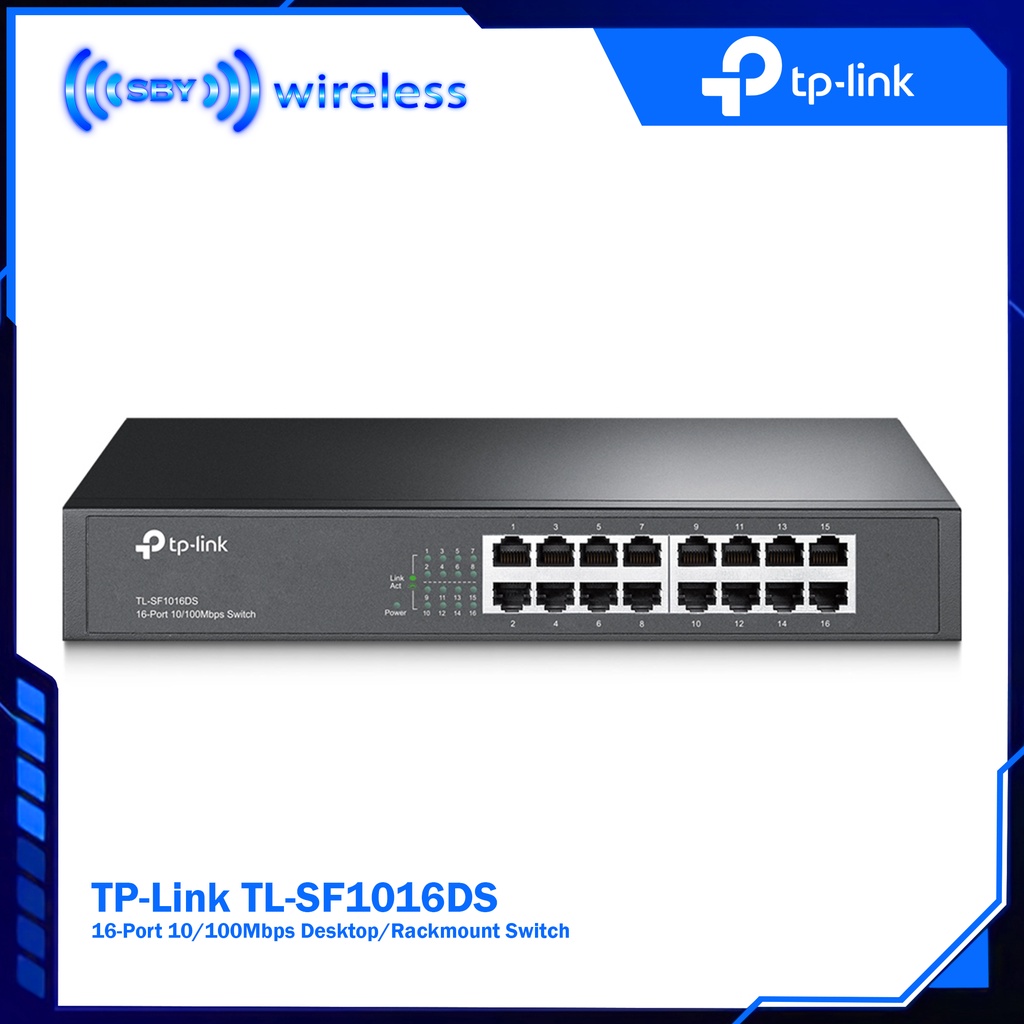

TL-SF1016DS 16-Port 10/100Mbps Desktop/Rackmount Switch
- 16 10/100M RJ45 ports.
- Green Ethernet technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX.
- Standard 13-inch steel case.

HARDWARE FEATURES
Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface : 16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media : 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity : Fanless
Physical Security Lock : Yes
Power Supply : 100-240VAC, 50/60Hz
Power Consumption : Maximum: 2.1W
Dimensions ( W x D x H ) : 11.6×7.1×1.7 in. (294×180×44 mm)
Mounting : Rack Mountable
Max Power Consumption : 2.06W(220V/50Hz)
Max Heat Dissipation : 7.03BTU/h

PERFORMANCE
Switching Capacity : 3.2Gbps
Packet Forwarding Rate : 2.38Mpps
MAC Address Table : 8K
Buffer Memory : 2Mb
Advanced Functions : Green Technology
802.3X Flow Control
Green Technology : Innovative energy-efficient technology saves power up to 75%
Transfer Method : Store-and-Forward

OTHERS
Certification : FCC, RoHS
Package Contents : 16-Port 10/100Mbps Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Environment : Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
