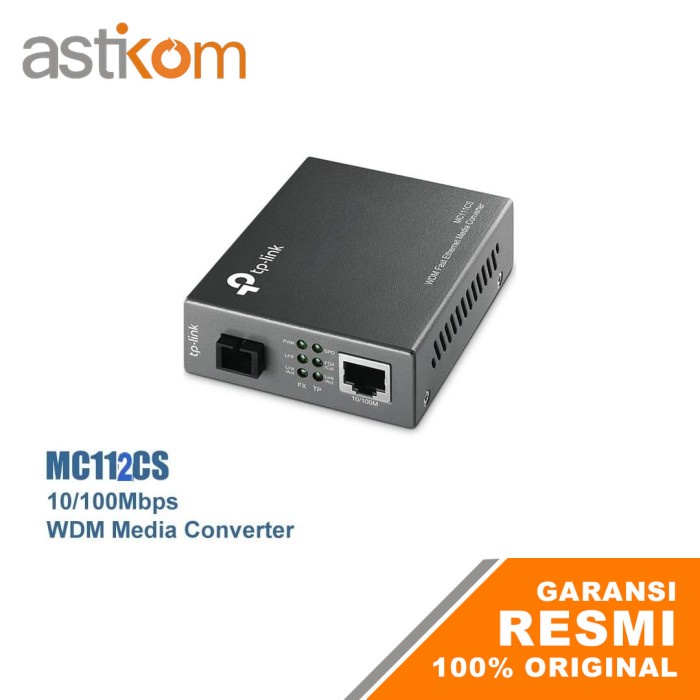

TP-Link TL-MC112CS 10/100Mbps WDM Media Converter

Detail TP-Link TL-MC112CS 10/100Mbps WDM Media Converter

HARAP MEMASTIKAN STOK TERLEBIH DAHULU SEBELUM MELAKUKAN TRANSAKSI

Untuk pengiriman ke luar kota, Wajib tambahkan packing untuk keamanan pengiriman dengan link berikut ini,
untuk dus :
https://shopee.co.id/PACKING-KARDUS-i.75752086.11869241633?sp_atk=ccda4f9e-a299-446e-adbd-275a77480277
Buble wrap :
https://shopee.co.id/PACKING-BUBBLE-WARP-BUNGKUS-BARANG-ANTI-SHOCK-i.75752086.13345605923?sp_atk=8ddf707c-bf89-41ab-93ab-fe05fadd109a


The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

Gambar produk
