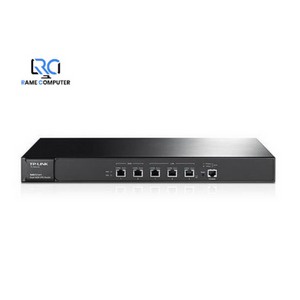

TP-Link TL-ER6120 SafeStreamGigabit Multi-WAN VPN Router

Detail TP-Link TL-ER6120 SafeStreamGigabit Multi-WAN VPN Router

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE802.3u, IEEE802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Interface 2 Gigabit WAN ports
2 Gigabit LAN ports
1 Gigabit LAN/DMZ port
1 Console Port (RJ-45 On RS232)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100 STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100 STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply Internal Universal Power Supply
AC100-240V~ 50/60Hz Input
Flash 8MB
DRAM DDRII 128MB
LED PWR, SYS, Link/Act, Speed, DMZ
Dimensions ( W x D x H ) 17.3x8.7x1.7 in.(440x220x44 mm)
19-inch Standard Rack-Mount Width, 1U Height
PERFORMANCE
Concurrent Session 60000
NAT Throughput 350Mbps
IPsec VPN Throughput (3DES) 130Mbps
BASIC FUNCTIONS
WAN Connection Type Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond
DHCP DHCP Server/Client
DHCP Reservation
MAC Clone Modify WAN/LAN/DMZ MAC Address
Switch Setting Port Mirror
Rate Control
Port Config
Port VLAN
ADVANCED FUNCTIONS
Load Balance Intelligent Load Balance
Policy Routing
Protocol Binding
Link Backup (Timing, Failover)
Online Detection
NAT One-to-One NAT
Multi-nets NAT
Virtual Server, DMZ Host, Port Triggering, UPnP
FTP/H.323/SIP/IPsec/PPTP ALG
Routing Static Routing
Dynamic Routing (RIP v1/v2)
System Mode NAT, Non-NAT, Classical Routing
Traffic Control IP-based Bandwidth Control
Guarantee & Limited Bandwidth
Time-scheduled Policy
IP-based Session Limit
VPN
IPsec VPN 100 IPsec VPN Tunnels
LAN-to-LAN, Client-to-LAN
