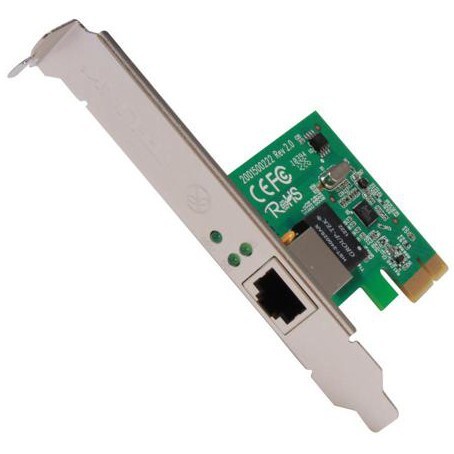

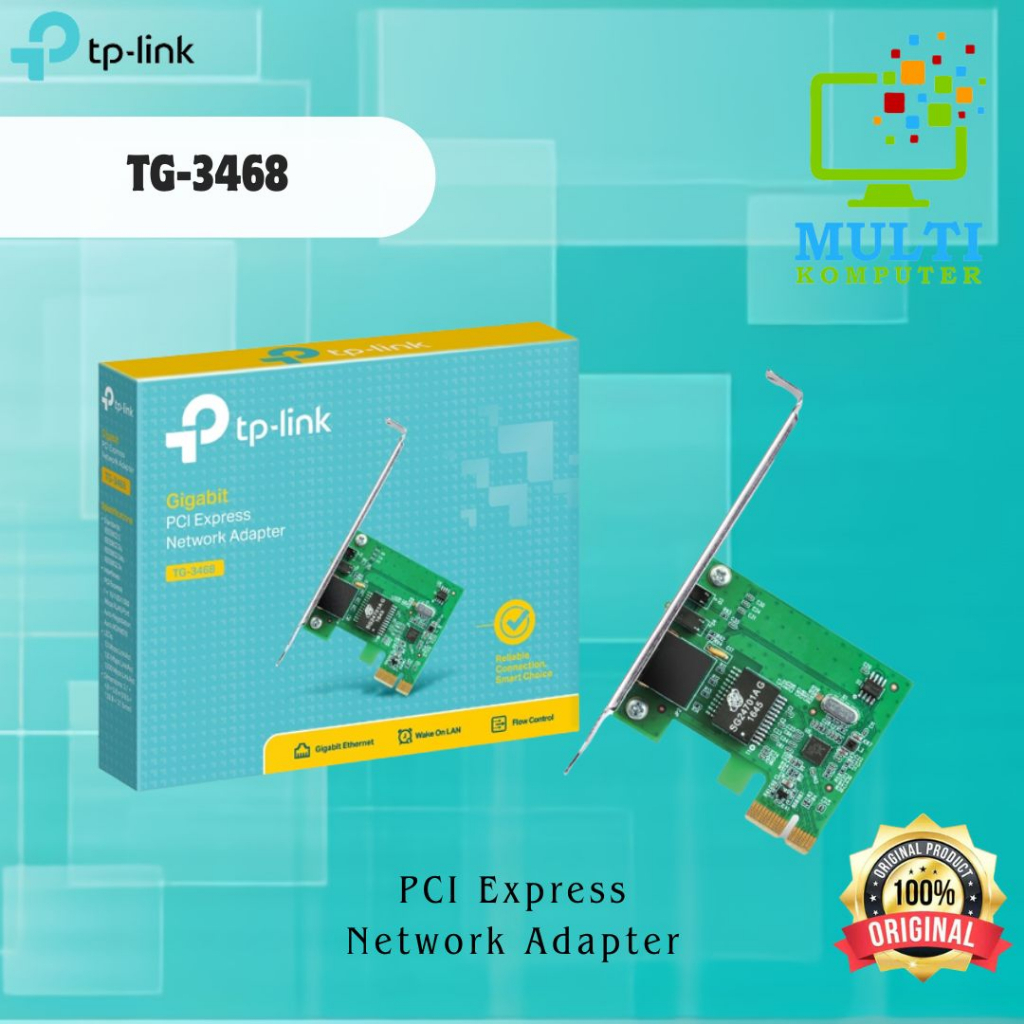

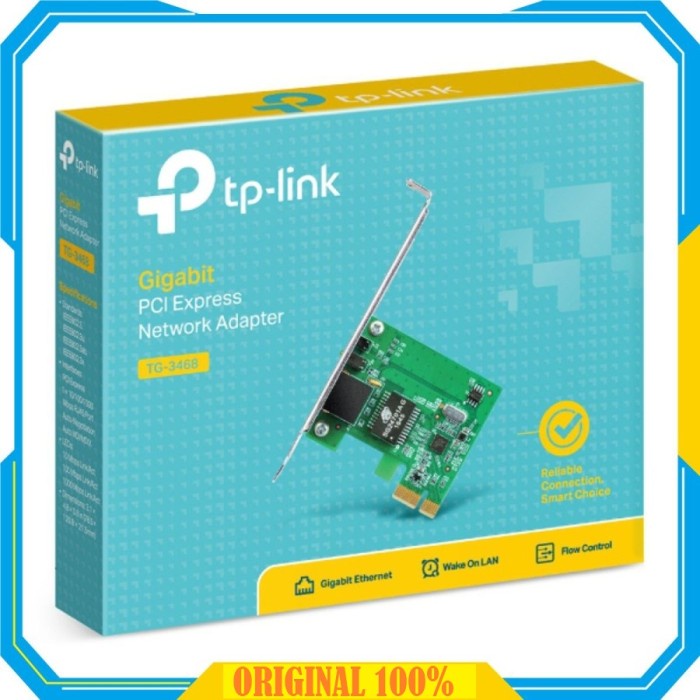

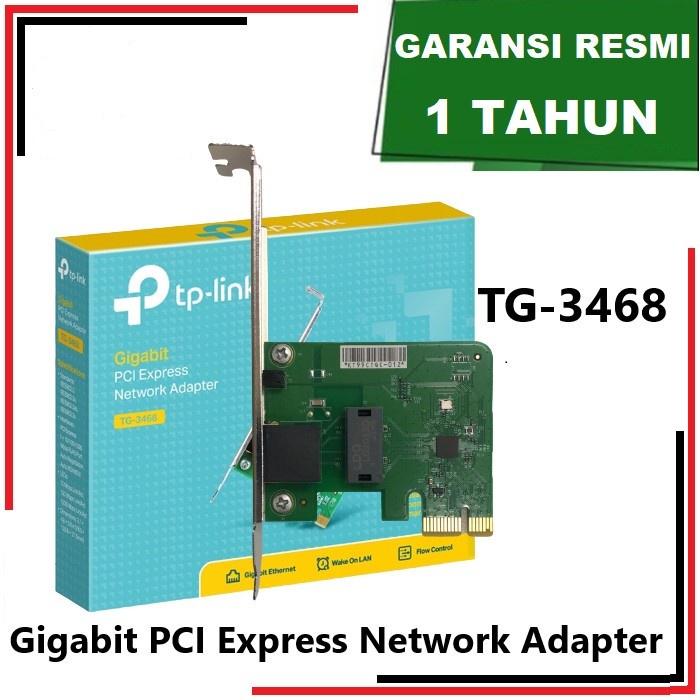

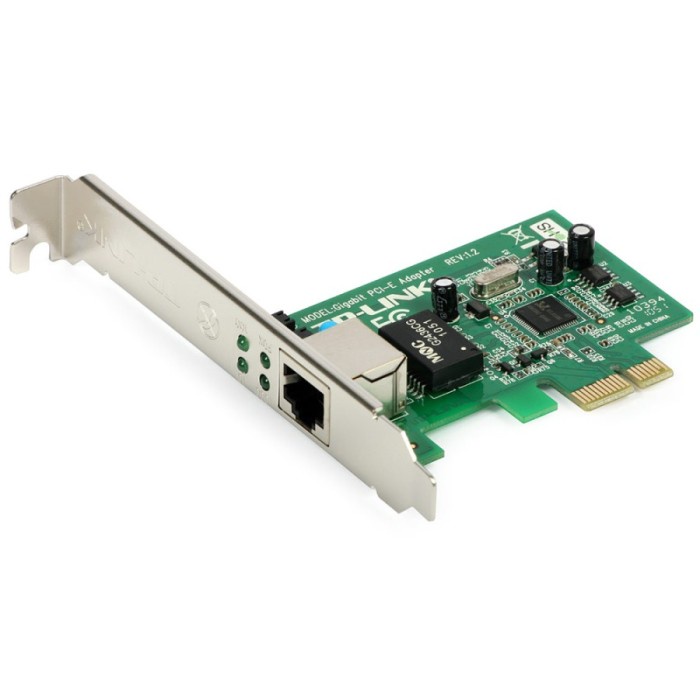

TP-LINK TG3468 Gigabit PCI Express Network Adapter tplink TG-3468

Detail TP-LINK TG3468 Gigabit PCI Express Network Adapter tplink TG-3468

Garansi Resmi TP-LINK Indonesia 1 Tahun


TP-Link TG-3468
Gigabit PCI Express Network Adapter

- 10/100/1000Mbps PCIe Adapter
- 32-bit PCIe interface, saving the finite chassis space
- Wake-on-LAN, convenient to manage over LAN

Standards and Protocols :
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

Interface :
32-bit PCI Express
1 10/100/1000Mbps RJ45 port

Network Media :
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED :
Status

Wireless Standards :
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

Data Rates :
10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode

LED Indicator :
1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act

Dimensions :
3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)

Flow Control :
IEEE 802.3x Flow Control (Full-Duplex)

Certification :
CE, FCC, RoHS

System Requirements :
Windows 10(32/64bits), Windows 8.1(32/64bits), Windows 8(32/64bits), Windows
7(32/64bits), Windows Vista(32/64bits), Windows XP

Environment :
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents :
- Gigabit PCI Express Network Adapter TG-3468
- Resource CD
- Quick Installation Guide
- Low-Profile Bracket
