TP-LINK TG3468 Gigabit PCI Express Network Adapter TG-3468 TP LINK

Detail TP-LINK TG3468 Gigabit PCI Express Network Adapter TG-3468 TP LINK

Mendukung Wake-on-LAN, Auto-Negosiasi dan Auto MDI / MDIX, Mendukung IEEE802.3x Flow Control untuk Mode Full-duplex mode dan backpressure untuk mode Half-duplex, Mendukung Layer 2 IEEE 802.1p Priority Encoding dan IEEE802.1q VLAN tagging, Mendukung penurunan daya / link down power saving, DOS/ Win98SE/ Me/ 2000/ XP/ Vista/ Linux/ Novell Netware.

Spesifikasi :
- Standar dan Protokol : IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
- Tampilan :
32-bit PCI Express
1 10/100/1000Mbps RJ45 port
- Media Jaringan :
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
- Data Rate :
10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
- Indikator LED : 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
- Flow Control : IEEE 802.3x Flow Control (Full-Duplex)
Lainnya
- Sertifikasi : CE, FCC, RoHS
- Isi Paket :
Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide
- Kebutuhan Sistem : Windows 10/8.1/8/7/XP/Vista

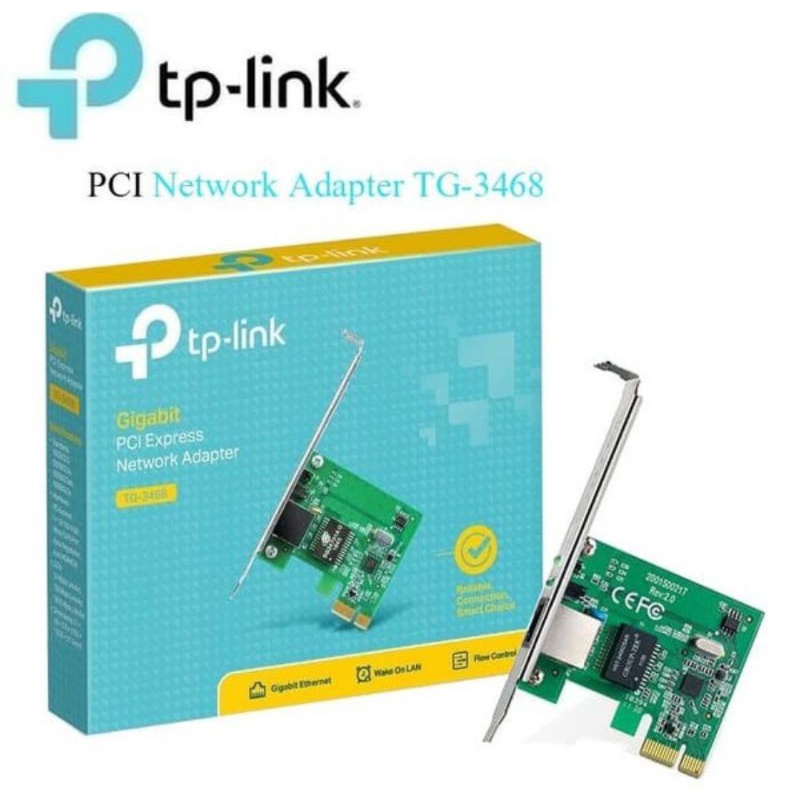

Gambar produk
