TP-LINK TG-3468 PCI Express Gigabit LAN Network Adapter TG3468 TPLink

Detail TP-LINK TG-3468 PCI Express Gigabit LAN Network Adapter TG3468 TPLink

Deskripsi TP-LINK TG-3468 PCI Express Gigabit LAN Network Adapter TG3468 TPLink

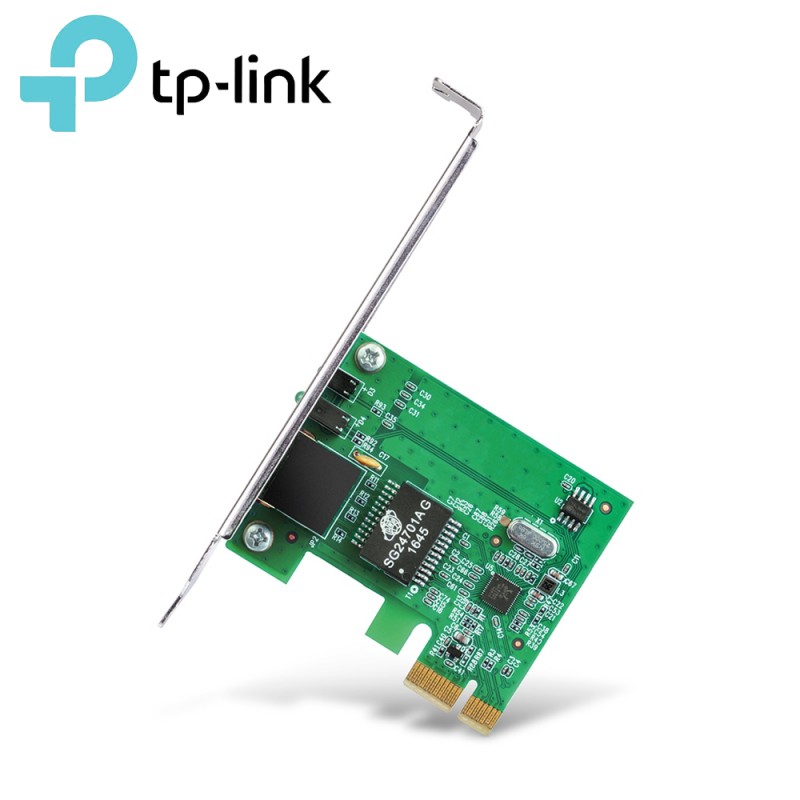

TPLINK TG-3468 Gigabit PCI Express Network Adapter
10/100/1000MBPS PCIe Adapter
32-bit PCIe interface, menghemat ruang casing yang terbatas
Wake-on-LAN, nyaman untuk mengelola melalui LAN

PCIe Gigabit Network Adapter TG-3468 adalah adapter kinerja tinggi yang dirancanguntuk kecepatan tinggi PCI Express Bus Arsitektur. Dirancang untuk mendukungkecepatan jaringan 10/100/1000MBPS Auto-Negotiation, 802.3x flow control dan Wake-on-LAN teknologi.
Support casing low profile (ada bawaan bracket utk casing mini)

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface 32-bit PCI Express
1 10/100/1000Mbps RJ45 port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
Data Rates 10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Flow Control IEEE 802.3x Flow Control (Full-Duplex)
OTHERS
Certification CE, FCC, RoHS
Package Contents Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide
System Requirements Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Gambar produk
