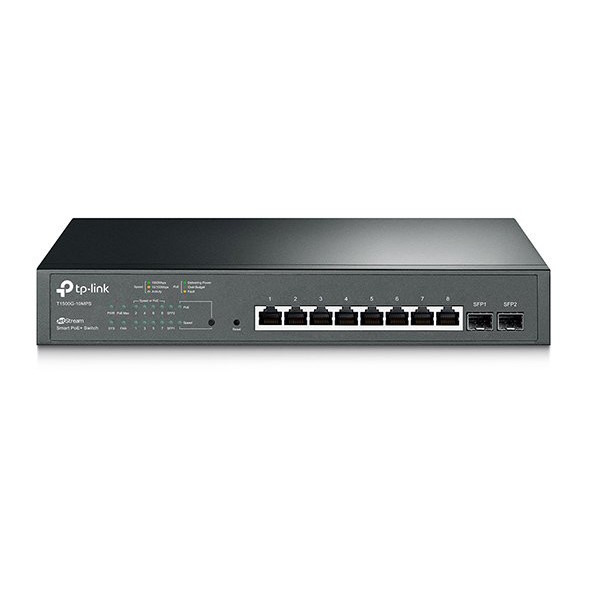

TP Link T1500G-10MPS

Detail TP Link T1500G-10MPS

Specifications :

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports, all supporting PoE+
2 100/1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
Fan Quantity 1
Power Supply 100-240V, 50/60Hz
Power Consumption Maximum (PoE on): 136.6W (220V/50Hz)
Maximum (PoE off): 20.6W (220V/50Hz)
PoE+ Ports(RJ45) Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 116W
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
Mounting Rack Mountable
Max Power Consumption 15.61W (220V/50Hz with no PD connected)
139.52W (220V/50Hz with 116W PD connected)
Max Heat Dissipation 53.26 BTU/h (with no PD connected)
476.04 BTU/h (with 116W PD connected)
PERFORMANCE
Switching Capacity 20Gbps
Packet Forwarding Rate 14.9Mpps
MAC Address Table 8K
Packet Buffer Memory 512KB
Jumbo Frame 9KB
