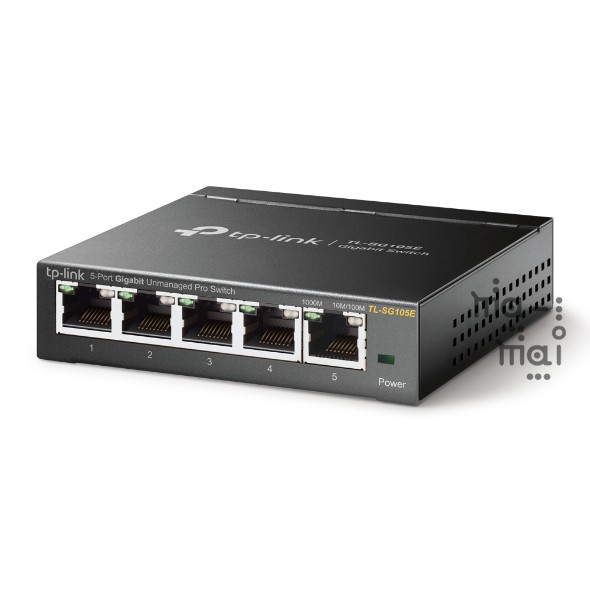

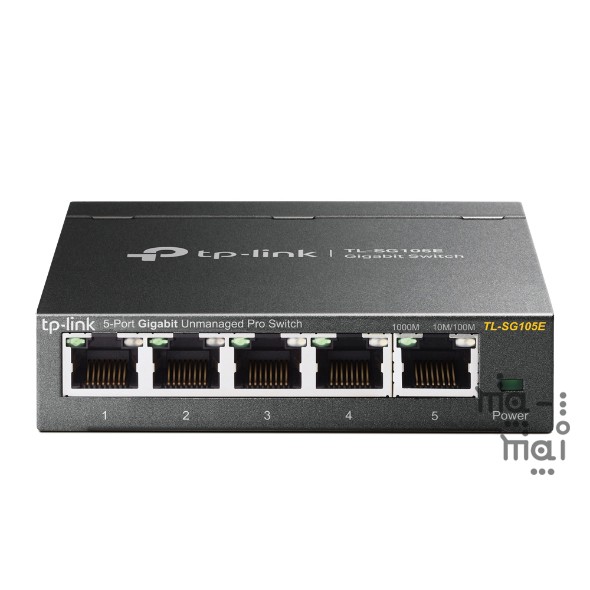

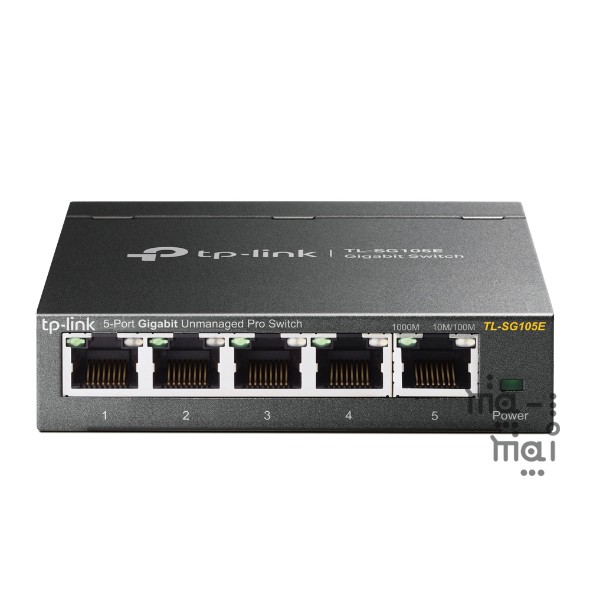

TP-Link Switch TL-SG105E 5-Port Gigabit Unmanaged Pro

Detail TP-Link Switch TL-SG105E 5-Port Gigabit Unmanaged Pro

Terima kasih Sudah berkunjung di ma-mai.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih


5-Port Gigabit Easy Smart Switch
TL-SG105E

5 10/100/1000Mbps RJ45 ports
Plug and play, with no configuration required
Durable metal housing for physical robustness
Easy management through the web interface or standalone Windows utility
Green technology reduces power consumption

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.1q
IEEE 802.1p
Interface 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 9VDC/0.6A)
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in.
(100 x 98 x 25 mm)
Max Power Consumption 2.7W
Max Heat Dissipation 9.1 BTU/h
PERFORMANCE
Packet Forwarding Rate 7.4Mpps
MAC Address Table 2K
Packet Buffer Memory 1Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Quality of Service Port-based QoS
802.1p/DSCP QoS with 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE RoHS

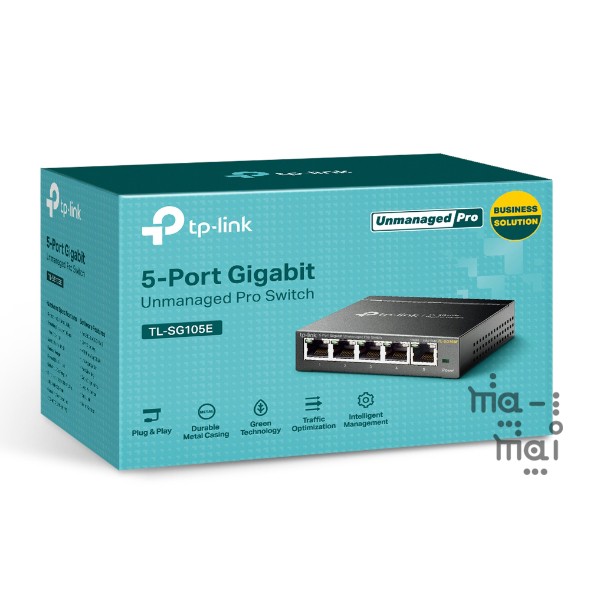

Package Contents TL-SG105E
Power Adapter
Installation Guide
Rubber Feet
System Requirements Microsoft® Windows® for management utility
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Gambar produk
