Detail TP-LINK Switch T2600G-18TS ( TL-SG3216) JetStream 16-Port Gigabit L2 Managed Switch with 2 SFP Slots

16 Gigabit RJ45 Ports and 2 Gigabit SFP Slots
Selectable RJ45 or Micro-USB Console Port
L2+ feature——Static Routing, helps route internal traffic for more efficient use of network resources
IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you with robust security strategies
L2/L3/L4 QoS and IGMP snooping that optimize voice and video application
DDM provides monitoring of all SFP Modules inserted to the switch
IPv6 supported with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
2 100/1000Mbps SFP Slots
1 RJ45 Console Port
1 Micro-USB Console Port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
Physical Security Lock Yes
Power Supply 100~240VAC, 50/60Hz
Dimensions ( W x D x H ) 17.3*8.7*1.7 in.(440*220*44 mm)
Mounting Rack Mountable
Max Power Consumption 11.47W (220V/50Hz)
Max Heat Dissipation 39.14 BTU/h

Switching Capacity 36Gbps
Packet Forwarding Rate 26.78Mpps
MAC Address Table 8k
Jumbo Frame 9216 Bytes

Quality of Service Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 and L2+ Features Static Routing
DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
L2PT

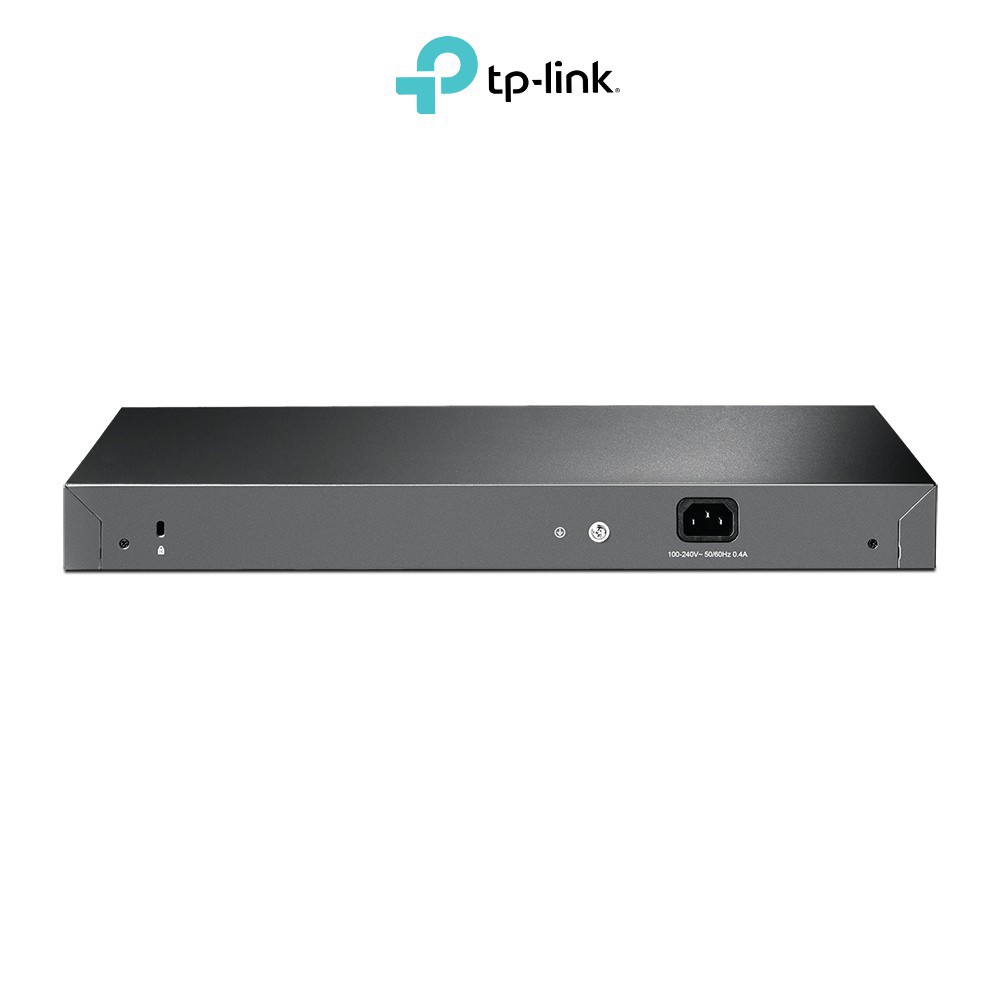

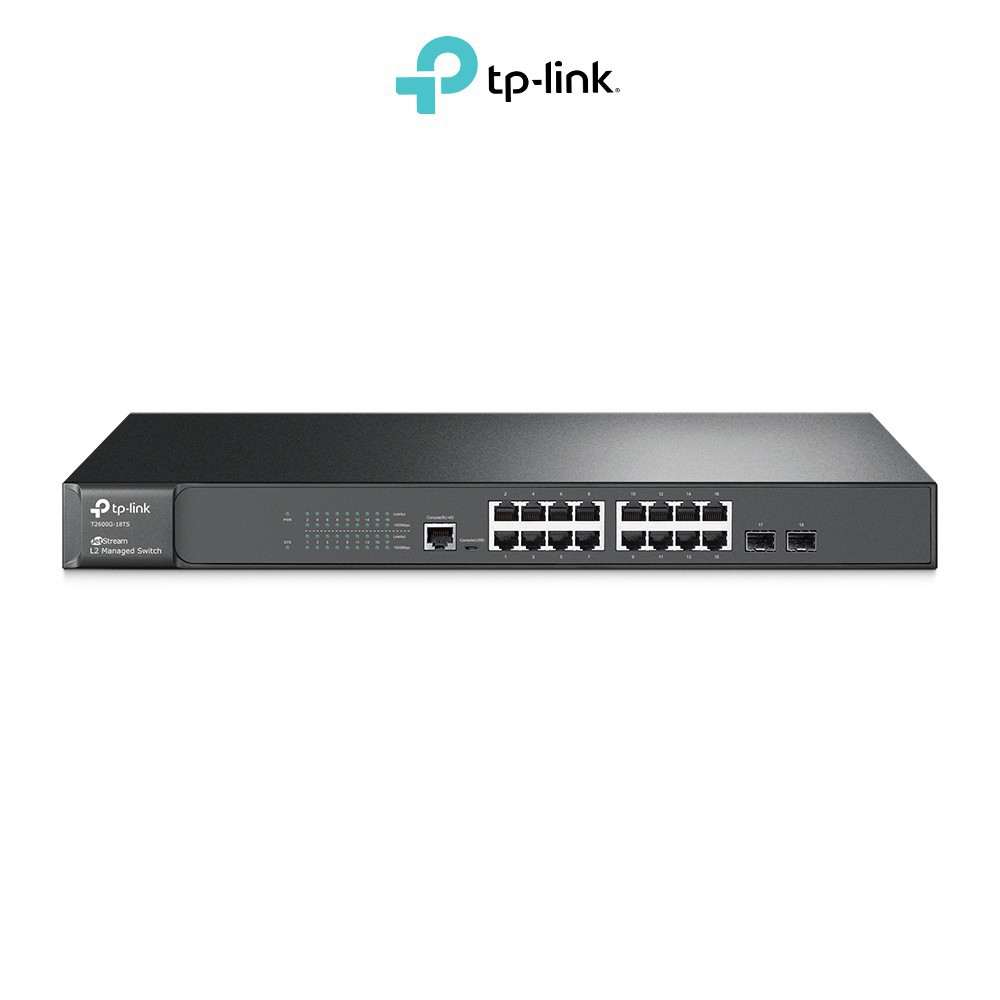

Gambar produk
