TP-Link Outdoor Radio CPE610 5GHz 300Mbps 23dBi Outdoor CPE

Detail TP-Link Outdoor Radio CPE610 5GHz 300Mbps 23dBi Outdoor CPE

Terima kasih Sudah berkunjung di ma-mai.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih


5GHz 300Mbps 23dBi Outdoor CPE
CPE610

Up to 300Mbps on 5GHz wireless data rates
23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
Excellent beam directivity, improved latency and noise cancellation
Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
Pharos Control gives administrators a free, centralized management system
Passive PoE supports to allow flexible deployment and convenient installation
HARDWARE FEATURES
Processor 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM,8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Dimensions 4.4 x 11.0 x 8.1 in.
(360 x 280 x 207 mm)
Antenna Gain 23dBi
Antenna Beamwidth 9°(Azimuth), 7°(Elevation)
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz
Transmit Power Max. 27dBm (Adjustable power by 1dBm)

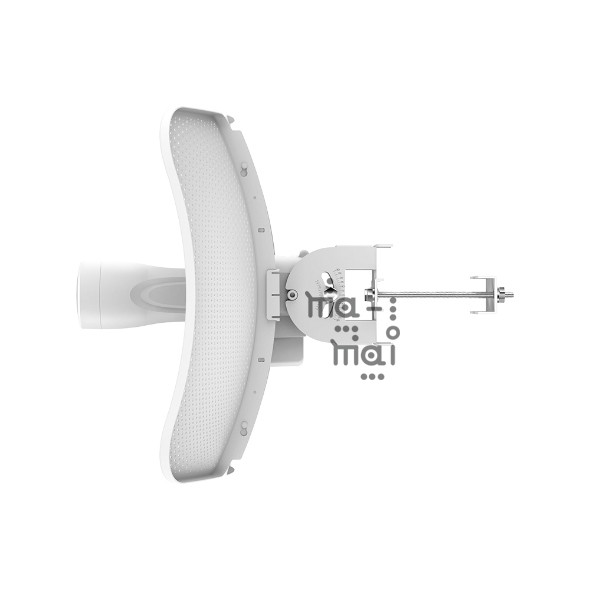

Gambar produk
