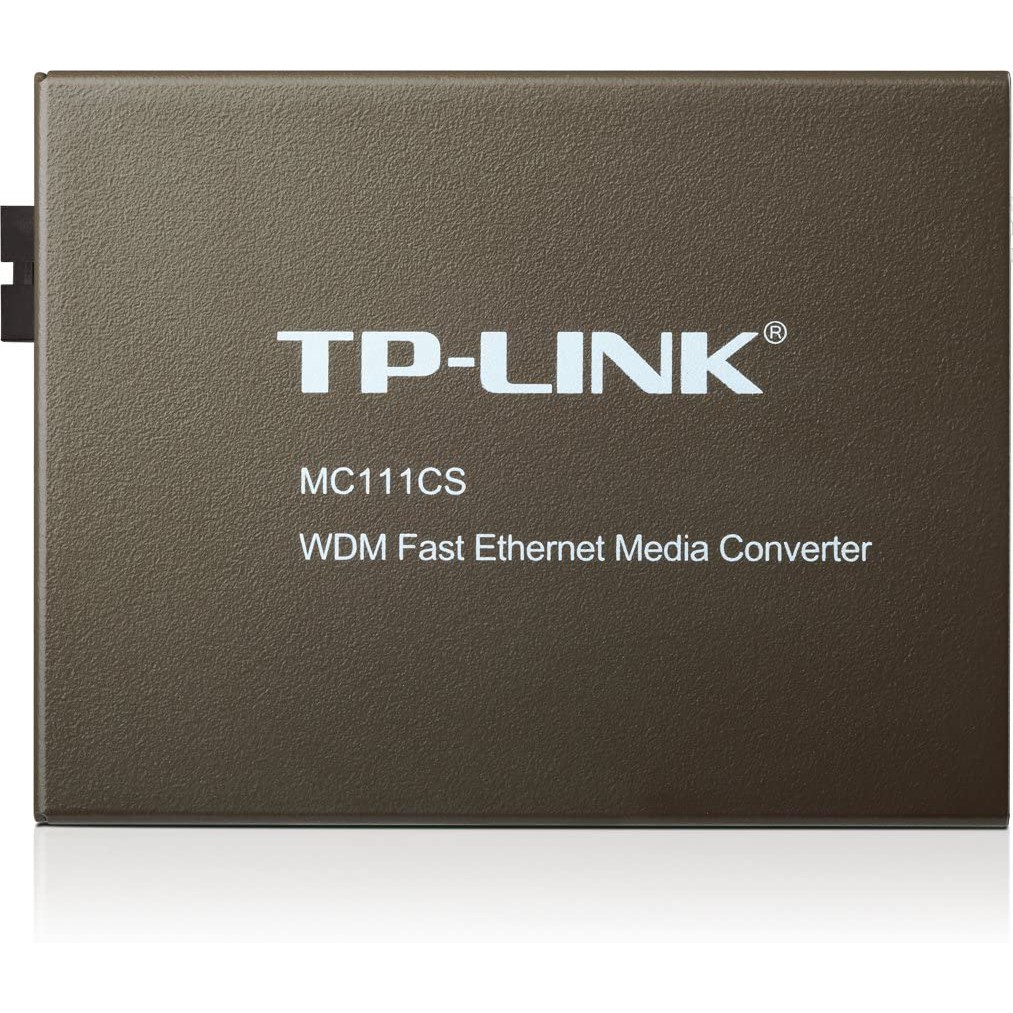

TP-Link Media Converter MC111CS 10/100Mbps WDM Media Converter

Detail TP-Link Media Converter MC111CS 10/100Mbps WDM Media Converter

Terima kasih Sudah berkunjung di ma-mai.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

MC111CS
10/100Mbps WDM Media Converter

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20km

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Extends fiber distance up to 20km
Ports 1 100M SC/UPC port
1 100M RJ45 port (Auto MDI/MDIX)
Wave Length 1550nm Tx/1310nm Rx
WDM TX 1550nm
WDM RX 1310nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX Single-mode Fiber

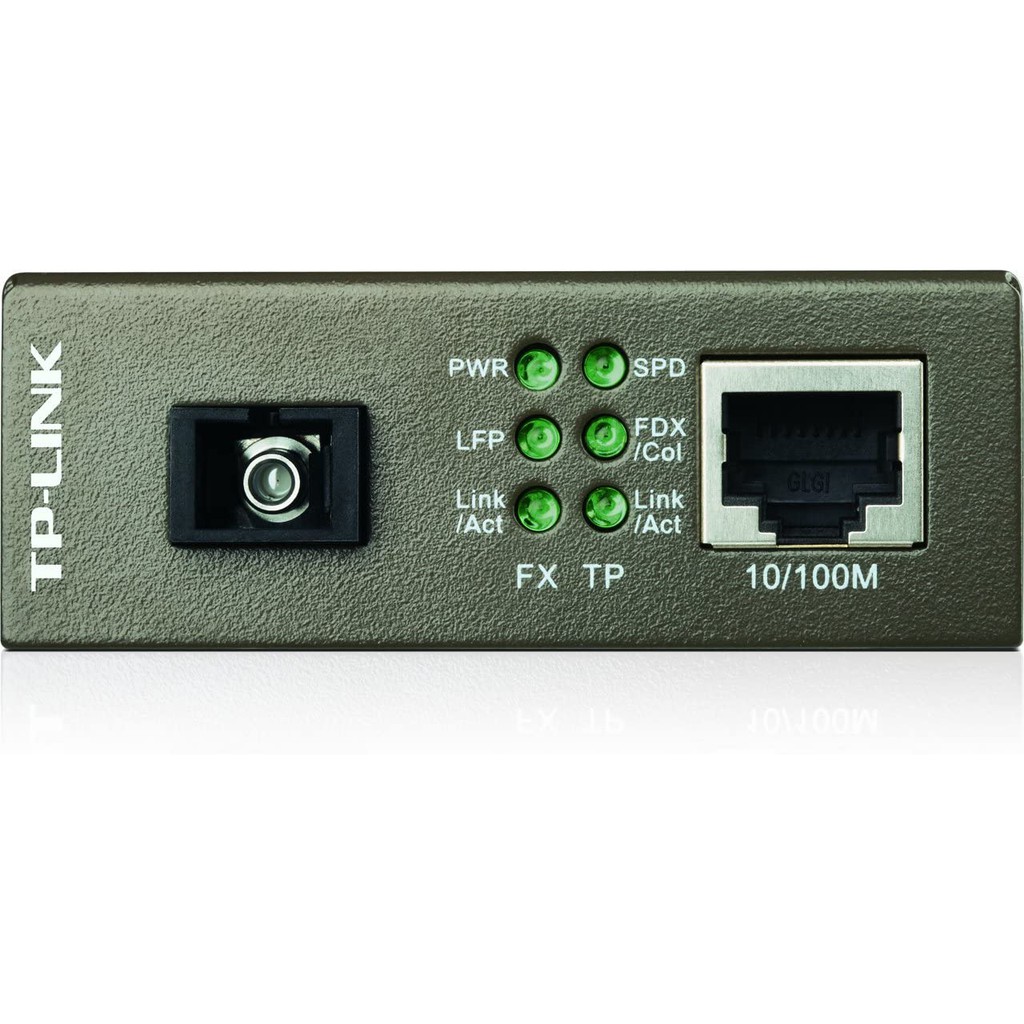

LED Indicators PWR, FDX/Col, Link/Act, SPD
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 2.49W
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Gambar produk
