Detail TP-LINK MC210CS Gigabit Single-Mode Media Converter

Deskripsi Gigabit Single-Mode Media Converter MC210CS / TP-Link MC210CS

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

TP-LINK MC210CS

is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 9.3 miles (15km).

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic Function Extends fiber distance up to 9.3 miles (15km)
Ports 1 x 1000M SC/UPC port
1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm
Network Media 1000BASE-LX Single-mode Fiber
Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 2.9 1.1 in.
(95 73 27 mm)
Power Supply External Power Adapter
Max Power Consumption 1.8W
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Gambar produk

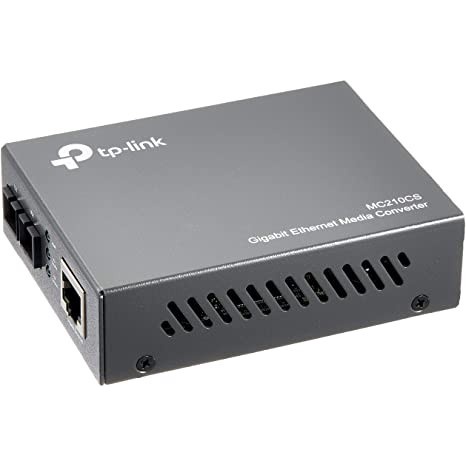

TP-LINK MC210CS Gigabit Single-Mode Media Converter
