TP-Link MC200CM Gigabit Multi-Mode SC Fiber Media Converter Up to 550m

Detail TP-Link MC200CM Gigabit Multi-Mode SC Fiber Media Converter Up to 550m

Produk Asli dan Resmi TP-LINK INDONESIA dan Bergaransi 2 tahun

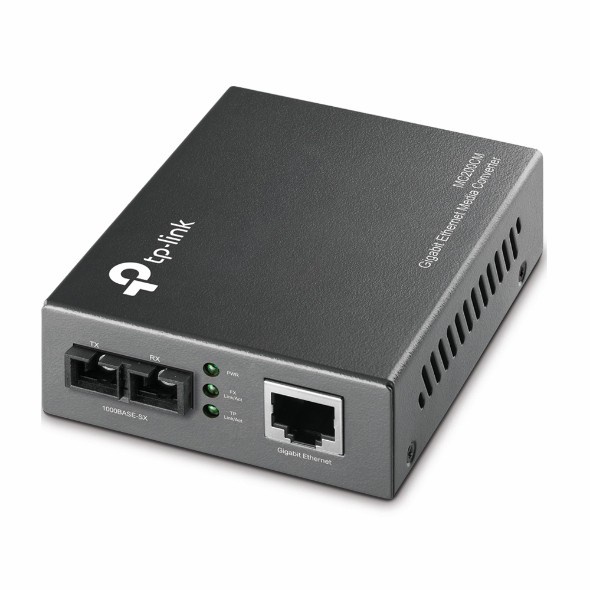

TP-LINK MC200CM
Gigabit Multi-Mode Media Converter

- 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 1,800 feet (550m)

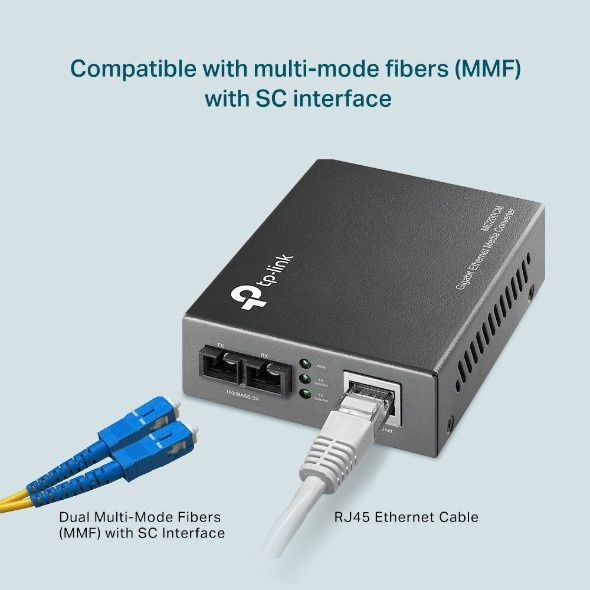

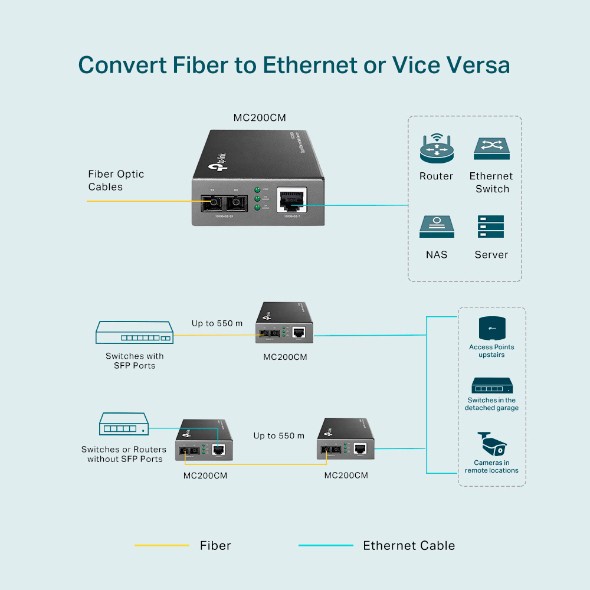

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data

Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).

Standards and Protocols :
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

Basic Function :
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 1,800 feet (550m) using 50/125um fiber
Extends fiber distance up to 720 feet (220m) using 62.5/125um fiber

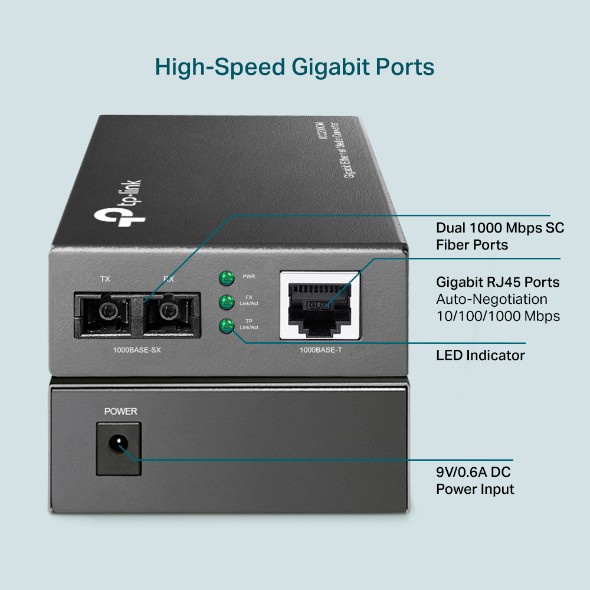

Ports :
1 x 1000M dual SC/UPC port
1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)

Wave Length :
850nm

Network Media 1000BASE-SX :
Multi-mode Fiber

Network Media 1000BASE-T :
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

LED Indicators :
PWR, Link/Act

Dimensions (W*D*H) :
3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)

Power Supply :
External Power Adapter

Max Power Consumption :
1.66W

Package Contents :
- Converter MC200CM
- Power Adapter
- Installation Guide

Gambar produk
