TP-Link MC111CS WDM Fast Ethernet Media Converter

Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > TP-Link MC111CS WDM Fast Ethernet Media Converter
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail TP-Link MC111CS WDM Fast Ethernet Media Converter

Sesuai dengan standar 802.3u 10/100Base-TX, 100Base-FX, Fitur Link Fault
Passthrough and Far End Fault meminimalkan terputusnya koneksi jaringan,
Mengadopsi teknologi WDM, transmisi dan menerima data pada satu single fiber.

Spesifikasi:
- Standar dan Protokol : IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Fungsi Dasar :
Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Link Fault Passthrough and Far End Fault minimize the loss caused by link
failure timely
Extends fiber distance up to 20km
- Ports :
1 100M SC/UPC port
1 100M RJ45 port (Auto MDI/MDIX)
- Panjang Gelombang : 1550nm Tx/1310nm Rx
- WDM TX : 1550nm
- WDM RX : 1310nm
- Media Jaringan 100BASE-T : UTP category 3, 4, 5 cable (maximum 100m),
EIA/TIA-568 100 STP (maximum 100m)
- Media Jaringan 100BASE-T : UTP category 5, 5e cable (maximum 100m),
EIA/TIA-568 100 STP (maximum 100m)
- Media Jaringan 100BASE-FX : Single-mode Fiber
- Indikator LED : PWR, FDX/Col, Link/Act, SPD
- Dimensi (WxDxH) : 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
- Catu Daya : External Power Adapter
- Max Power Consumption : 2.49W
- Keselamatan & Emisi : FCC, CE, RoHS

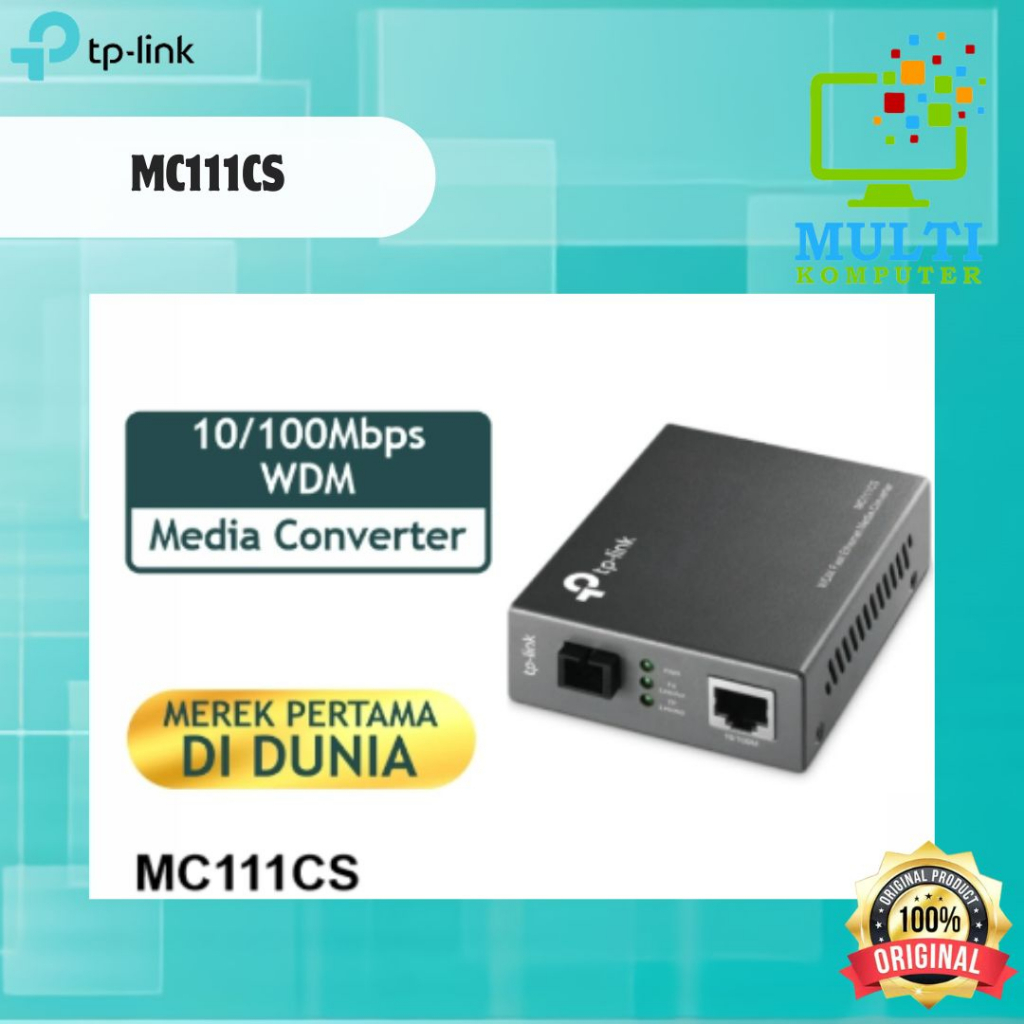

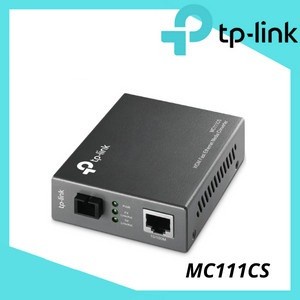

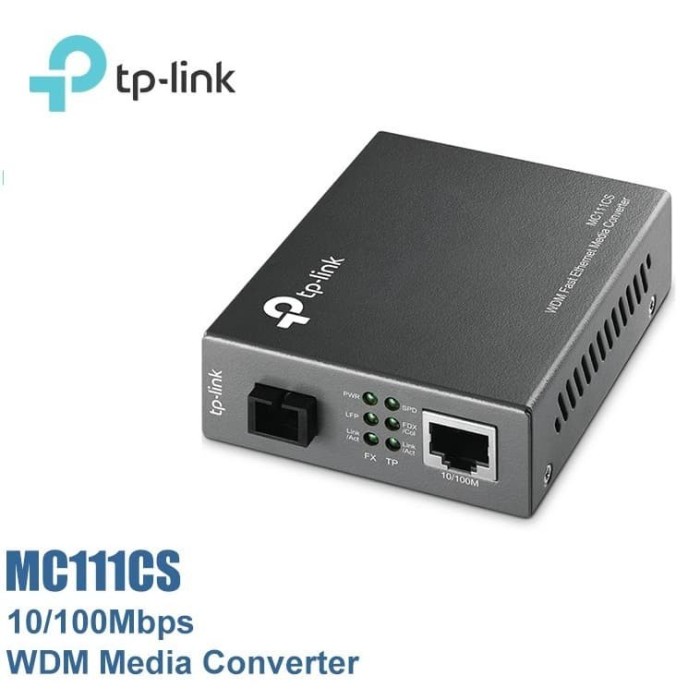

Gambar produk

TP-Link MC111CS WDM Fast Ethernet Media Converter
TP-Link MC111CS WDM Fast Ethernet Media Converter
TP-Link MC111CS WDM Fast Ethernet Media Converter
TP-Link MC111CS WDM Fast Ethernet Media Converter
TP-Link MC111CS WDM Fast Ethernet Media Converter
TP-Link MC111CS WDM Fast Ethernet Media Converter
