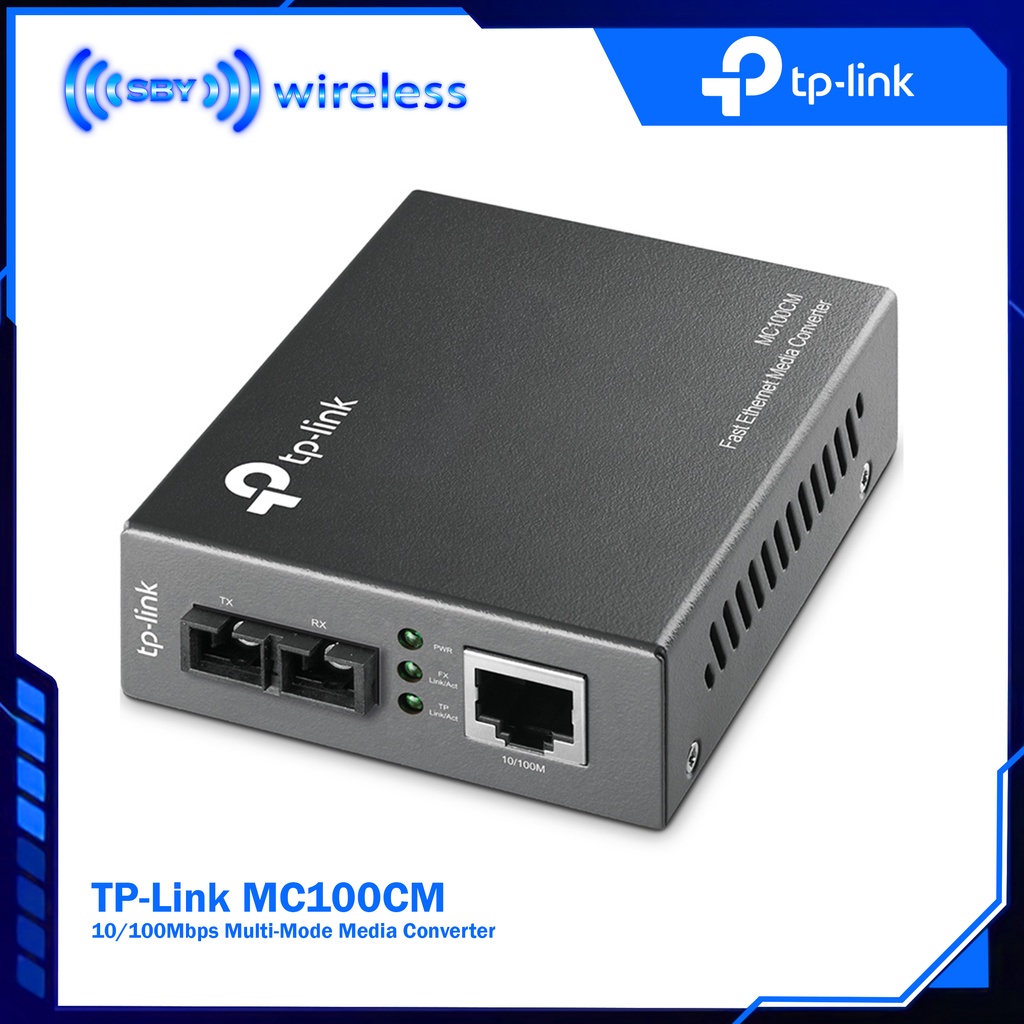

TP-LINK MC100CM 10/100Mbps Multi-Mode Media Converter TPLINK

Detail TP-LINK MC100CM 10/100Mbps Multi-Mode Media Converter TPLINK

TPLink MC100CM 10/100Mbps Multi-Mode Media Converter
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Ranges up to 2km (1.2 miles) transmission distance with multi-mode fiber

MEDIA CONVERTER & MODULE
Standards and Protocols : IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function : Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 2km (1.2 miles)

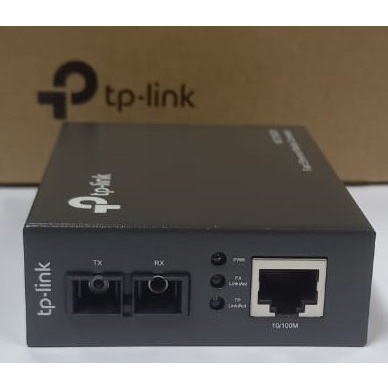

Ports : 1x 100M dual SC/UPC port
1x 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length : 1310nm
Network Media 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T : UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX : Multi-mode Fiber
LED Indicators : PWR, Link/Act
Dimensions (W*D*H) : 3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)

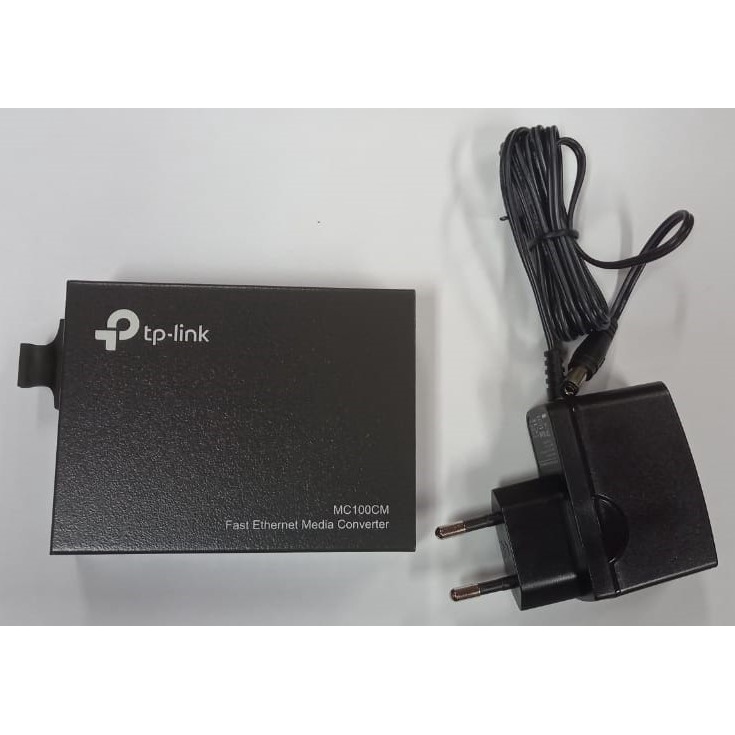

Power Supply : External power supply
Max Power Consumption : 2.4W
Safety & Emission : FCC, CE, RoHS
Environment : Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
