TP-LINK LS105G 5-Port 10/100/1000Mbps Gigabit Desktop Switch TPLINK Metal Case

Detail TP-LINK LS105G 5-Port 10/100/1000Mbps Gigabit Desktop Switch TPLINK Metal Case

TPLINK 5-Port 10/100/1000Mbps Desktop Network Switch
- 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS function
- Plug and play, no configuration needed

HARDWARE FEATURES
Standards and Protocols : IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface : 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity : Fanless
External Power Supply : External Power Adapter (Output: 5VDC / 0.6A)
LED Indicator : System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) : 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Max Power Consumption : 2.776W (220V/50Hz)
Max Heat Dissipation : 9.466 BTU/h

PERFORMANCE
Packet Forwarding Rate : 7.4 Mpps
MAC Address Table : 2K
Packet Buffer Memory : 1 Mb
Jumbo Frame : 16 KB

SOFTWARE FEATURES
Advanced Features : Green Technology
802.3X Flow Control
802.1P/DSCP QoS
Transfer Method : Store and Forward

OTHERS
Certification : CE, FCC, RoHS

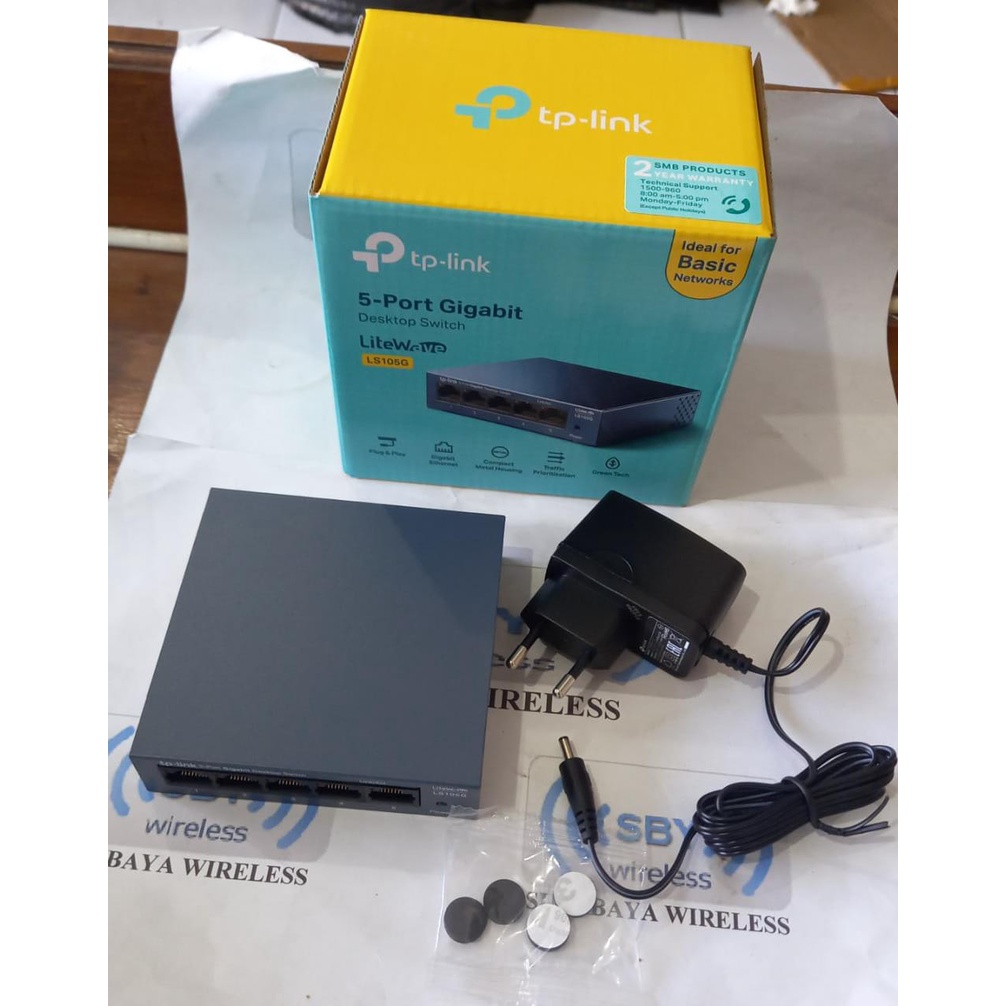

Package Contents : 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment : Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

#TPLINK
