TP LINK ETHERNET 100/100Mbps TG-3468 GIGABIT LAN-TP LINK TG-3468

Detail TP LINK ETHERNET 100/100Mbps TG-3468 GIGABIT LAN-TP LINK TG-3468

Spesifikasi :

TG-3468
Gigabit PCI Express Network Adapter

- 10/100/1000Mbps PCIe Adapter
- 32-bit PCIe interface, saving the finite chassis space
- Wake-on-LAN, convenient to manage over LAN


HARDWARE FEATURES

Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

Interface:
32-bit PCI Express
1 10/100/1000Mbps RJ45 port

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

Data Rates :
10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode

LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Flow Control IEEE 802.3x Flow Control (Full-Duplex)


OTHERS

Certification CE, FCC, RoHS

Package Contents:
Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide

System Requirements Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)

Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing


Garansi Resmi 1 Tahun

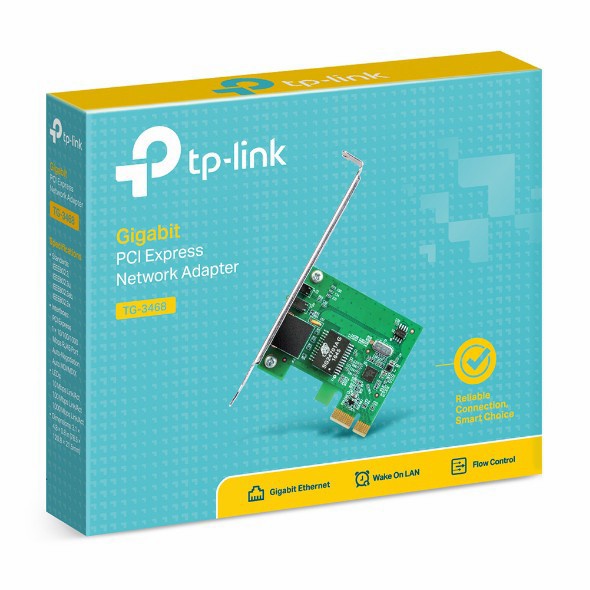

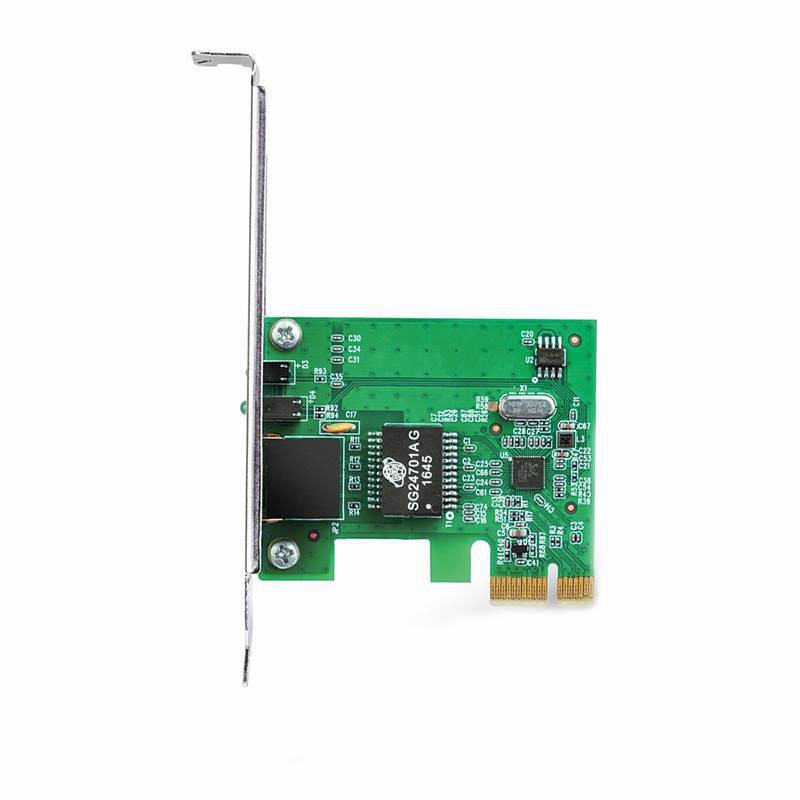

Gambar produk
