TP-LINK EAP245: Wireless Dual Band Gigabit Ceiling Mount Access Point

Detail TP-LINK EAP245: Wireless Dual Band Gigabit Ceiling Mount Access Point

Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
Free EAP Controller Software lets administrators easily manage hundreds of EAPs
Support Power over Ethernet(802.3at) for convenient and affordable installation
Captive portal provides a convenient method for guest authentication
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
Load balance ensures large numbers of users have smooth network experiences in high density business networks
Supports management VLAN for an enhanced network management

SPESIFIKASI:
Interface Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3at PoE）
Button Reset
Power Supply PoE or External 12VDC / 1.5A Power Supply
Power Consumption 12.7 W
Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9in. (180*180*47.5mm)
Antenna Type Internal Omni
2.4GHz: 3* 4dBi
5GHz: 3*4dBi
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mbps
Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmission Power CE：
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<27dBm(2.4GHz & 5GHz)
MANAGEMENT
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents AC1750 Wireless Dual Band Gigabit Access Point EAP245
Power Adapter
Mounting Kits
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

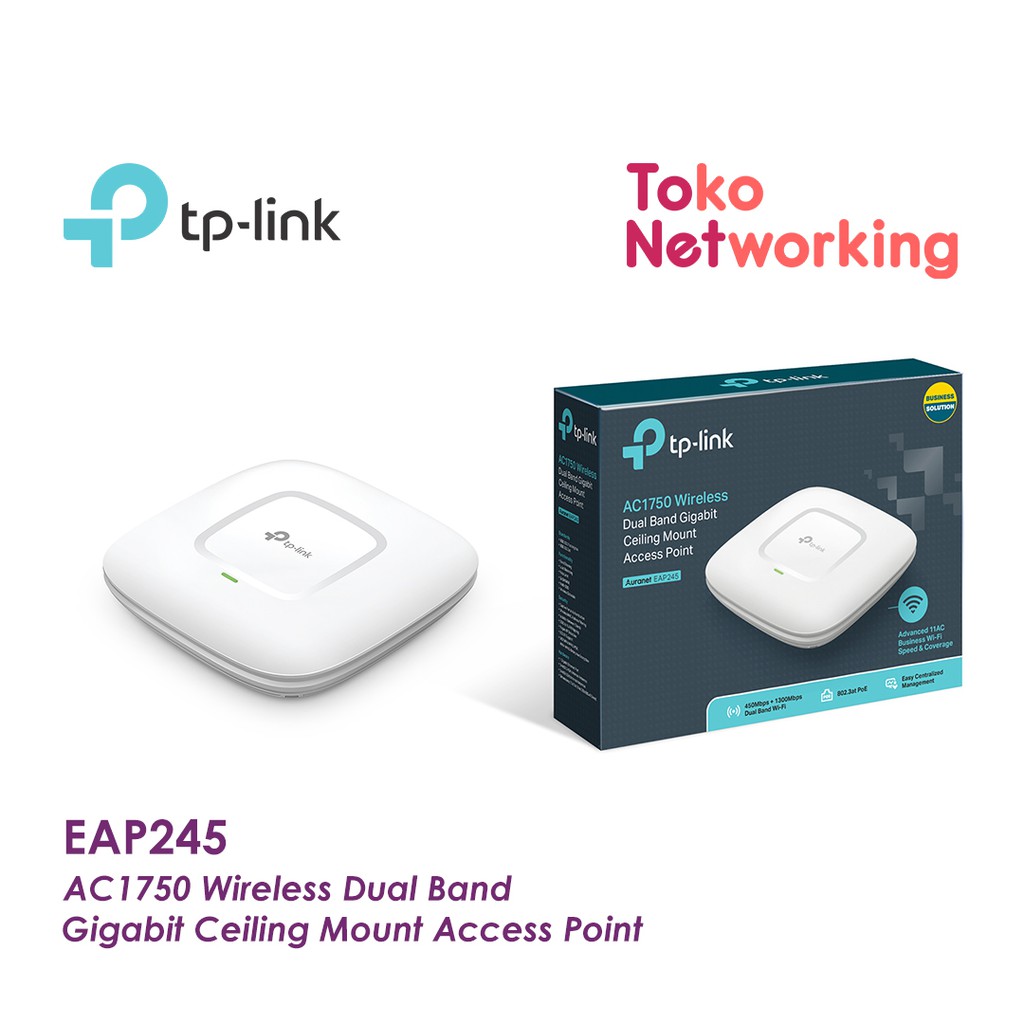

Gambar produk
