Detail TP-LINK EAP115 300Mbps Wireless N Ceiling Mount Access Point
SPECIFICATION : HARDWARE FEATURES Interface Fast Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE) Physical Security Lock Kensington Lock Slot Button Reset Power Supply PoE or external 12VDC/1.0A power supply Power Consumption 5W Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm) Dimensions 7.5×6.8×1.2 in (189.4×172.3×29.5mm) Antenna Type Internal 2* 3dBi Omni Mounting Ceiling /Wall Mounting (Kits included) Watch Dog Yes WIRELESS FEATURES Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER Wireless Functions Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK Transmission Power CE: <20dBm FCC: <26dBm MANAGEMENT Omada App Yes Auranet Controller Software Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cluster Mode Yes Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) EAP Controller Software Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1,v2c System Logging Local/Remote Syslog Local/Remote Syslog Telnet Yes SSH Yes Web-based Management HTTP/HTTPS Management VLAN Yes OTHERS Certification CE, FCC, RoHS Package Contents 300Mbps Wireless N Ceiling Mount Access Point EAP115 Power Adapter Mounting Kits, Installation Guide System Requirements Microsoft Windows 10/8/7/Vista/XP Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

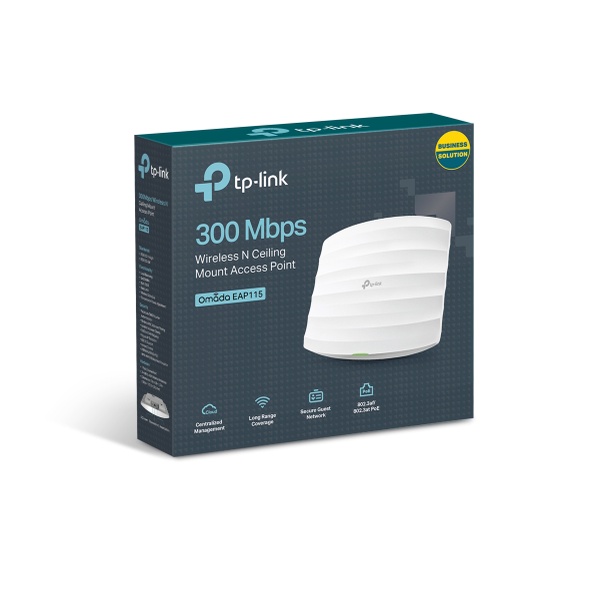

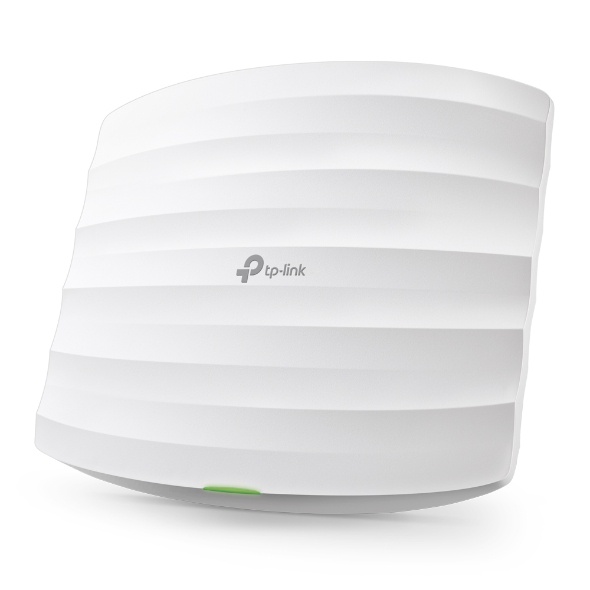

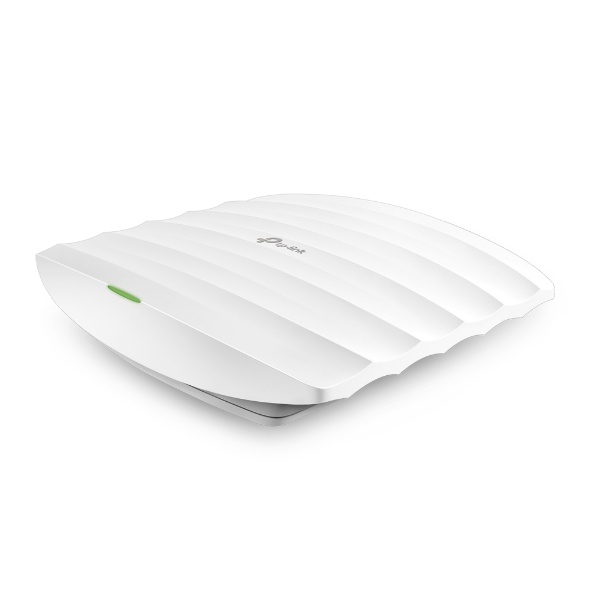

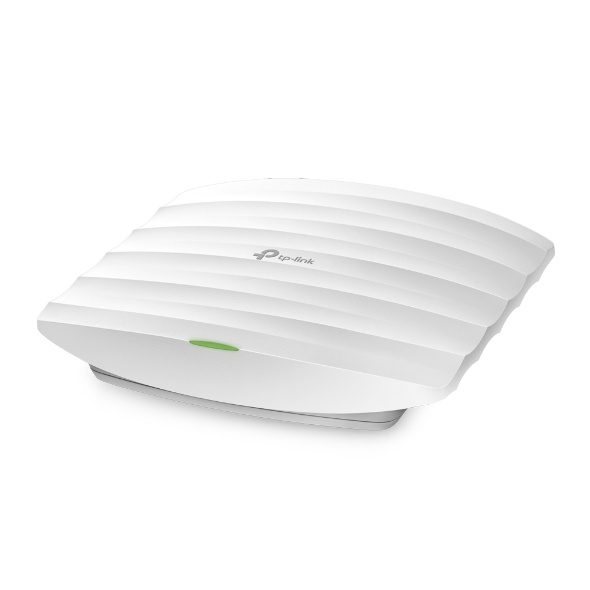

Gambar produk
TP-LINK EAP115 300Mbps Wireless N Ceiling Mount Access PointTP-LINK EAP115 300Mbps Wireless N Ceiling Mount Access PointTP-LINK EAP115 300Mbps Wireless N Ceiling Mount Access PointTP-LINK EAP115 300Mbps Wireless N Ceiling Mount Access Point
