TP Link EAP110 Outdoor Acces Poin EAP-110

Detail TP Link EAP110 Outdoor Acces Poin EAP-110

Deskripsi Produk

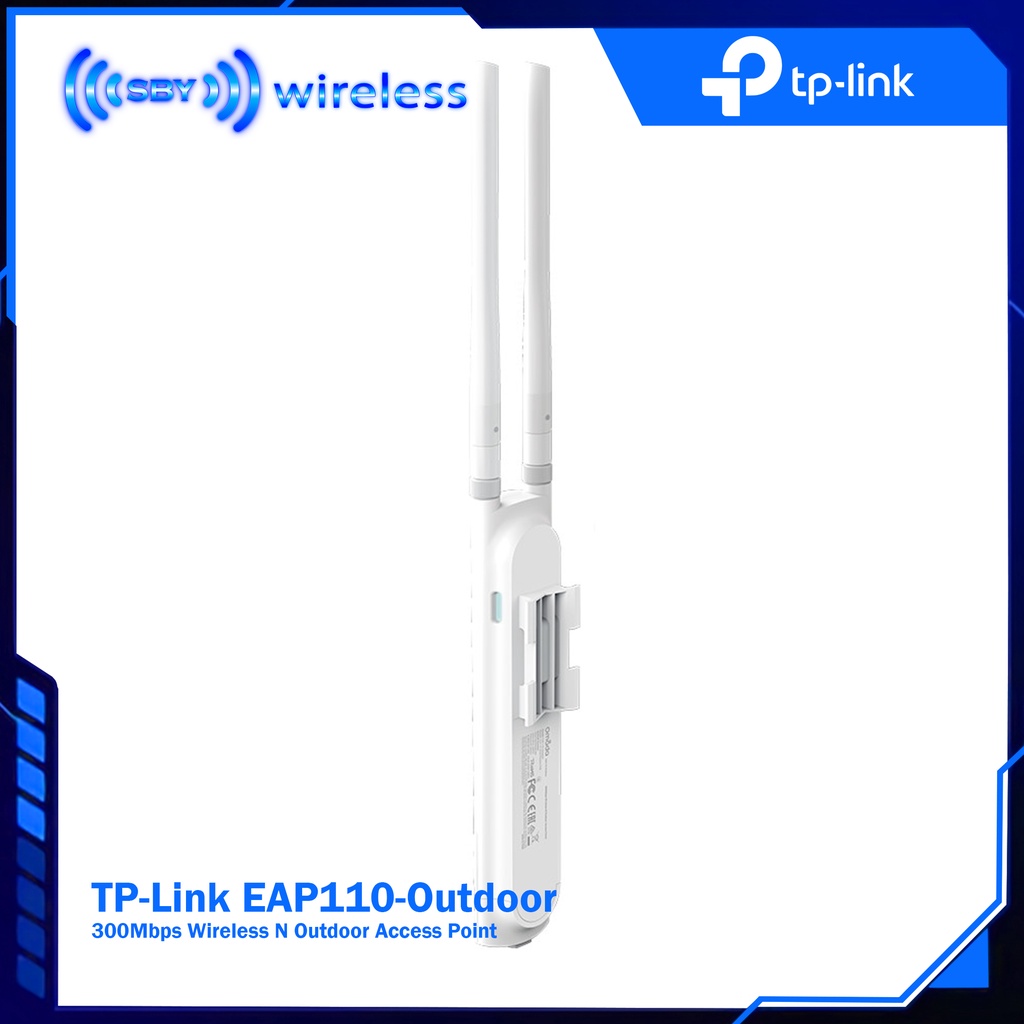

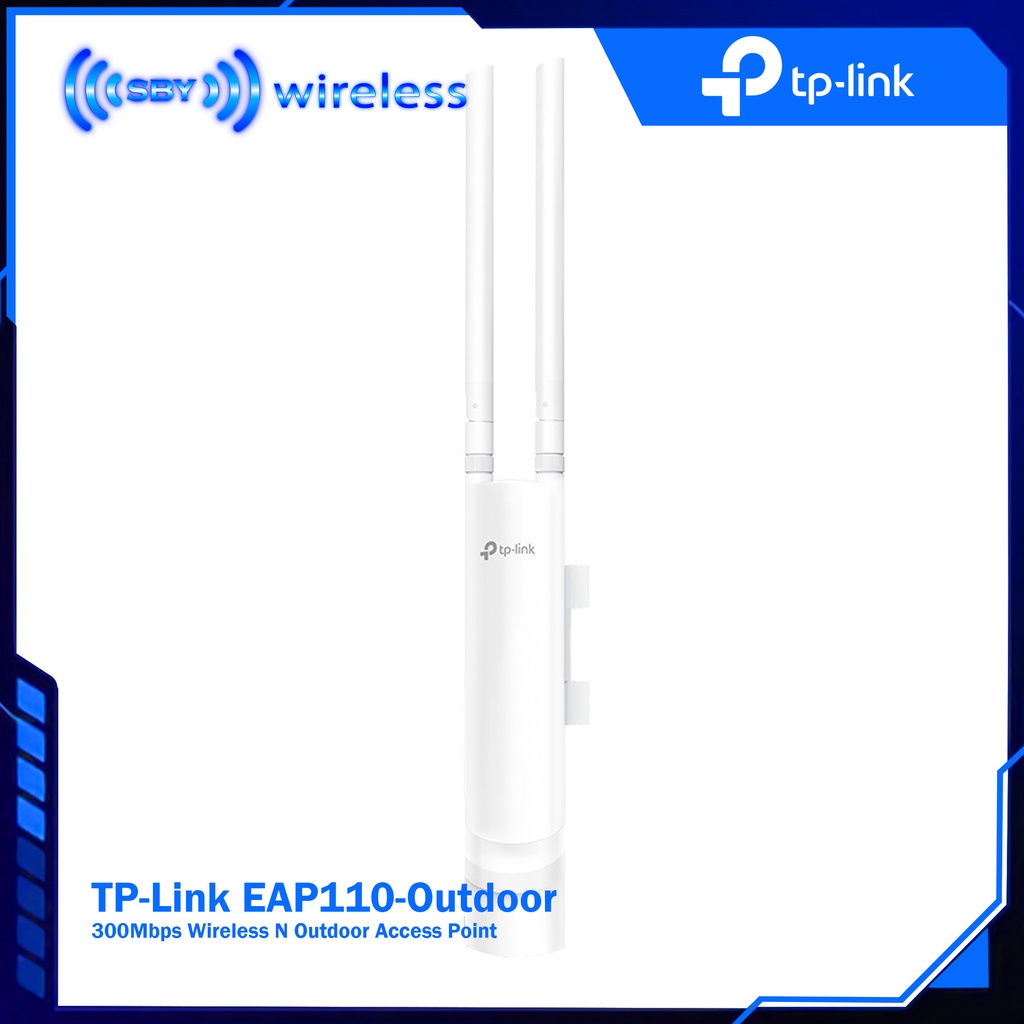

Overview Of 300Mbps Wireless N Outdoor Access Point
#EAP 110 Outdoor
Built for outdoor Wi-Fi applications
Up to 300Mbps Wi-Fi with 2x2 MIMO technology
High transmission power and high gain antennas provide a long-range coverage area
Durable, weatherproof enclosure to withstand fair and foul weather
Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
Free Auranet Controller Software lets administrators easily manage hundreds of EAPs
Captive portal provides a convenient method for guest authentication
Supports management vlan for an enhanced network management

Spesifikasi :

HARDWARE FEATURES

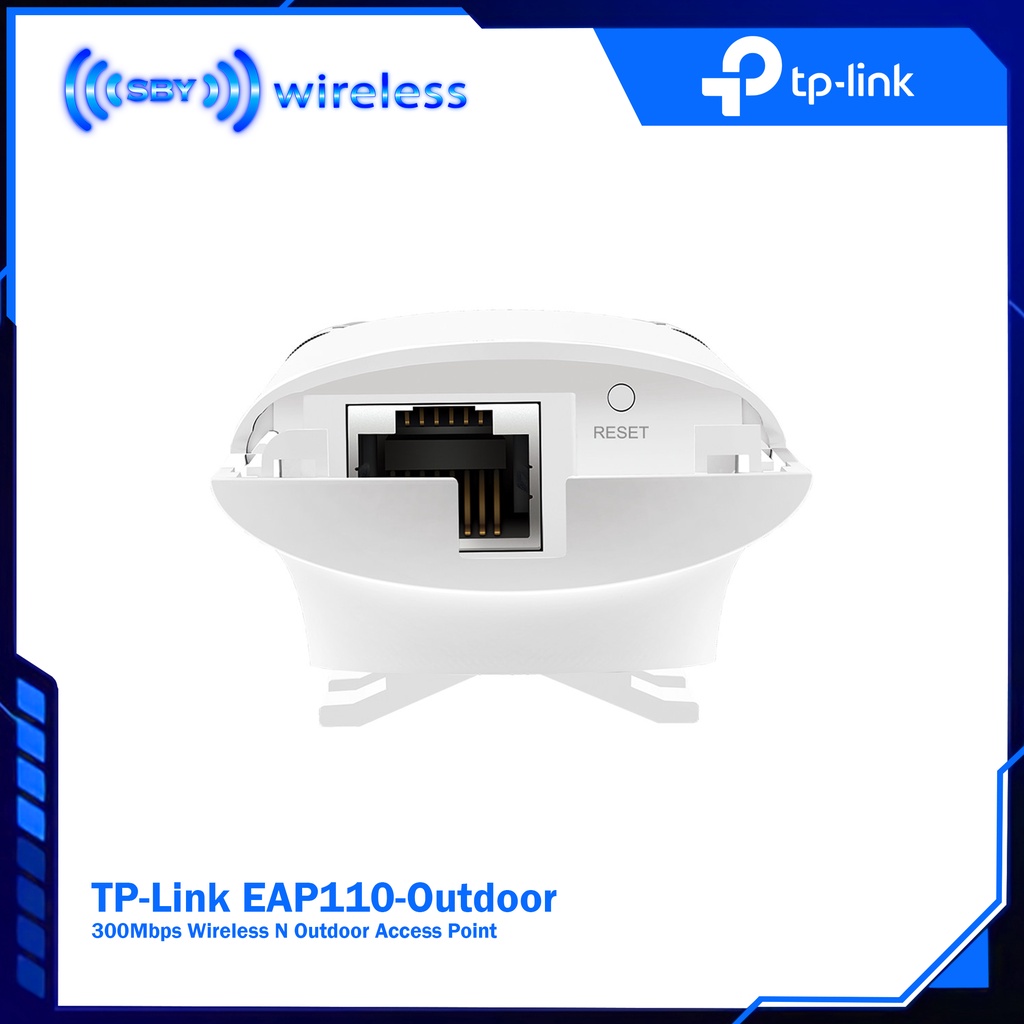

Interface Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button Reset
Power Supply 24VDC / 0.6A Passive PoE Supply
Power Consumption 6.3 W
Dimensions ( W x D x H ) 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
Antenna Type 2*5dBi External Omni waterproof
Weatherproof Enclosure IP65
Mounting Pole / Wall Mounting (Kits included)
Watch Dog Yes

WIRELESS FEATURES
Wireless Standards IEEE 802.11n/g/b
Frequency 2.4GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Transmit Power CE：
<20dBm
FCC:
<27dBm
Wireless Functions Multiple SSIDs（Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App Yes
Auranet Controller Software Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP Yes
System Logging Local/Remote Syslog Yes
Telnet Yes
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS

Package Contents :
300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Waterproof Rubber Insert
Waterproof Antennas
Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: -30℃~65℃ (-22℉~149℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

#TPLINK#EAP
