TP-LINK EAP110 Indoor 300Mbps Wireless N Ceiling

Detail TP-LINK EAP110 Indoor 300Mbps Wireless N Ceiling

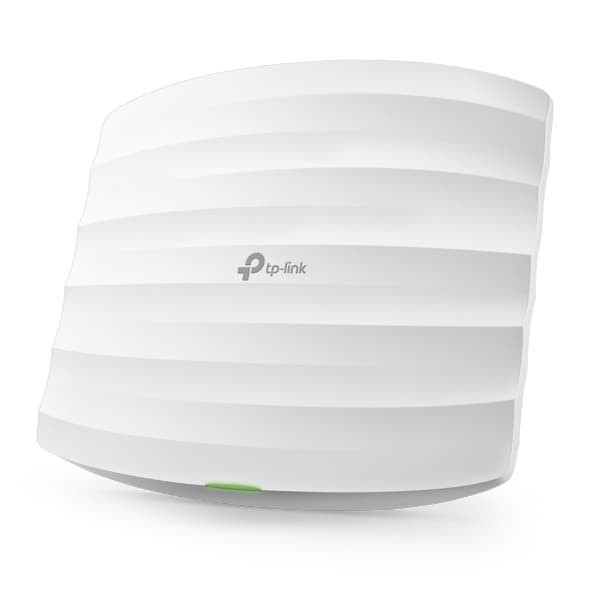

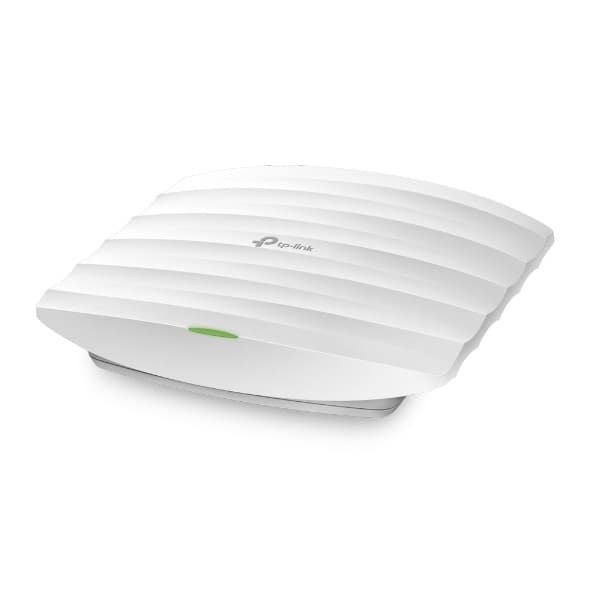

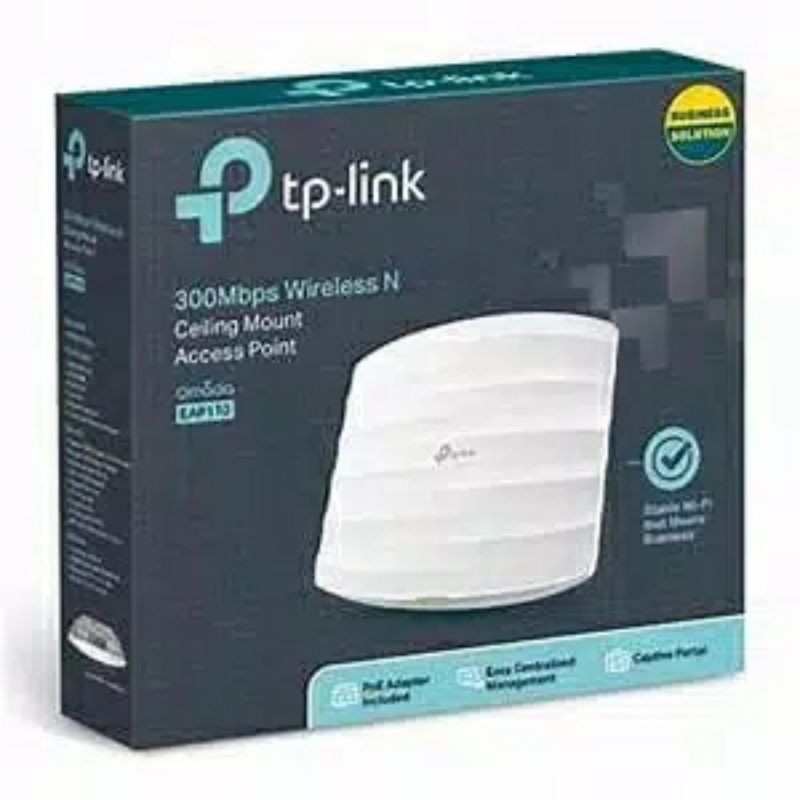

TP-Link EAP110 Indoor 300Mbps Wireless N Ceiling Mount Access Point EAP-110 TPLINK

HARDWARE FEATURES

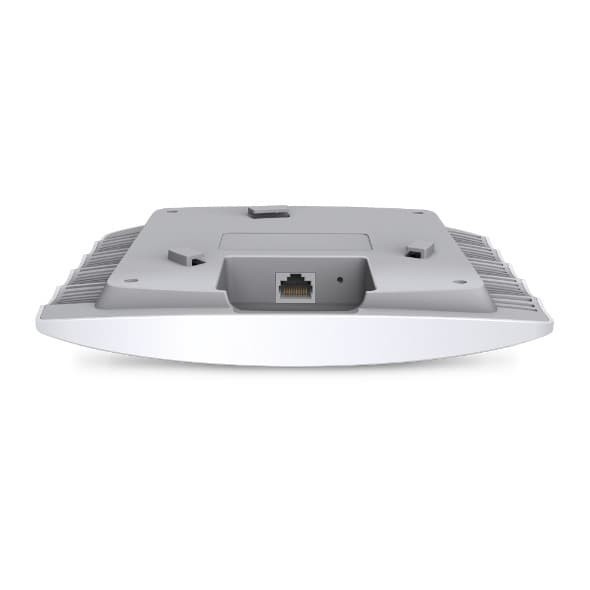

Interface Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button Reset
Power Supply 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 2.8W
Dimensions 7.5×6.8×1.2 in.
(189.4×172.3×29.5mm)
Antenna Type Internal 2* 4dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions Multiple SSID （Up to 8 SSID）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on Dbm)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
WirelessMACaddress Filtering
Wireless Isolation Between Clients
SSID to VLANMapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2Enterprise,WPAPSK / WPA2PSK
Transmission Power CE:
≤19dBm
FCC:
≤21dBm
MANAGEMENT
OmadaCloud Access Yes
OmadaApp Yes
OmadaCloud Controller Yes
OmadaCo
