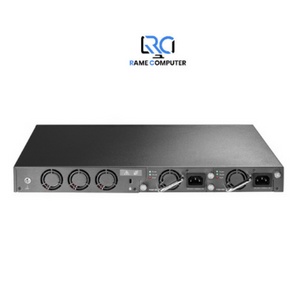

TP-Link DS-P7001-08 DeltaStream 8-port GPON Optical Line Terminal

Detail TP-Link DS-P7001-08 DeltaStream 8-port GPON Optical Line Terminal

8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port.
Dual Redundant Power Supplies: Carrier-class reliability with dual built-in AC+DC power supplies.
Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
HARDWARE FEATURES
Interface • 8× 2.5G PON Ports
• 2× 10 Gbps SFP+ Uplink Ports
• 1× 10/100/1000 Mbps RJ45 Uplink Port
• 1× RJ45 Console Port
• 1× RJ45 MGMT Port
• 1× Alarm Port (Reserved)
Button Reset Button
Power Supply • Dual Power Supplies: 2 AC, 2 DC or AC+DC,
• AC: 100V~240V, 50/60Hz
• DC: -38.4V~-72V
Power Consumption Max. 70W
Dimensions ( W x D x H ) 17.3 × 10.2 × 1.7 in (440 × 260 × 44 mm)
SOFTWARE FEATURES
Security • ACL
• 802.1x Authentication
• ARP Inspection
• IP Source Guard
DHCP • DHCP Server
• DHCP Relay
OMCI Standard OMCI Management Supported
ONU Authentication ONU Auto Authentication
ONU Security • Rouge ONU Detection and Isolation
• Uplink and Downlink Data Encryption
Multi-Service Multi-Service Traffic Identify and Rate Limit
QoS • IEEE 802.1p/DSCP QoS
• Voice VLAN
• Auto VoIP
Routing Static Routing
Mulitcast • IGMP Snooping
• MLD Snooping
Centralized Management • Large-Scale Devices Management
• OLT Batch Configure, Upgrade, Reboot
• Multi-Site Management
• Intelligent Network Monitoring
• Real-time Network Overview
