TP-LINK Deco M5 AC1300 Whole Home Mesh Wi-Fi System - 3 Pack

Detail TP-LINK Deco M5 AC1300 Whole Home Mesh Wi-Fi System - 3 Pack

SPECIFICATION :
WIRELESS
Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1300
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)
WiFi Range 3-5 Bedroom Houses (3-pack)TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

4× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity MediumDual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Working Modes Router Mode
Access Point Mode
HARDWARE
Processor Qualcomm 717 MHz Quad-core CPU

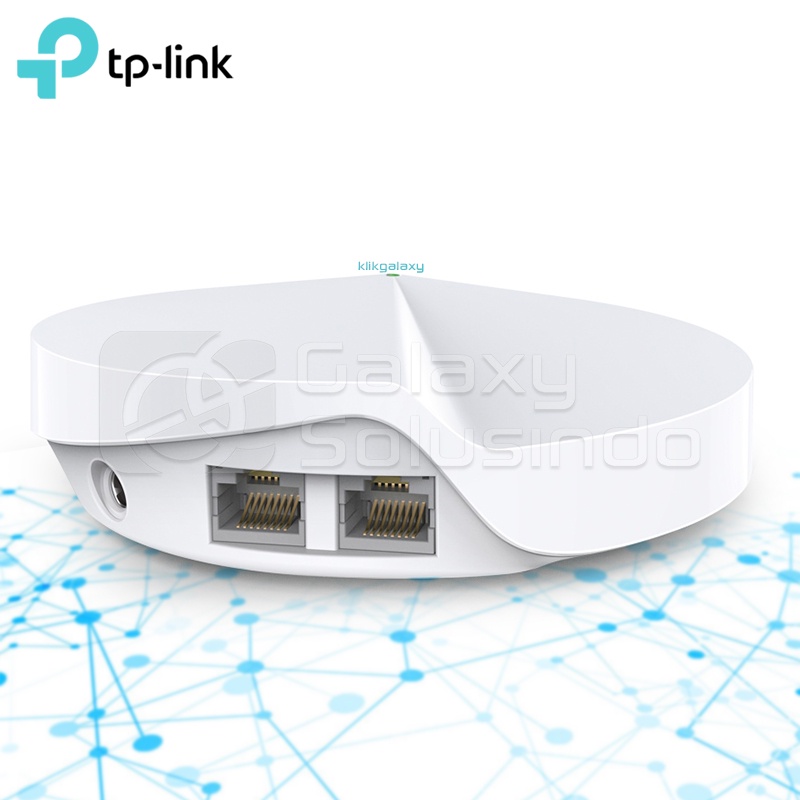

Ethernet Ports 2× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button
SECURITY
WiFi Encryption WPA-Personal
WPA2-Personal
Network Security SPI Firewall
Access Control

HomeCare™ AntivirusMalicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeCare™
Parental Controls HomeCare™ Parental ControlsCustom Profiles
Content Filtering
URL FIltering
Time Limit
Time Schedule (Bed Time)
Log Insight
Usage Monitor
Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service HomeCare™ QoSQoS by Device
QoS by Application
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
PHYSICAL
Dimensions (W×D×H) 4.7 × 4.7 × 1.5 in
(120 × 120 × 38 mm)
Package Contents Deco M5 (3-pack)
3 Deco M5 Units
1 RJ45 Ethernet Cable
3 Power Adapters
1 Quick Installation Guide
OTHERS
System Requirements Android 4.4 or later
iOS 9.0 or later
Certifications CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm
