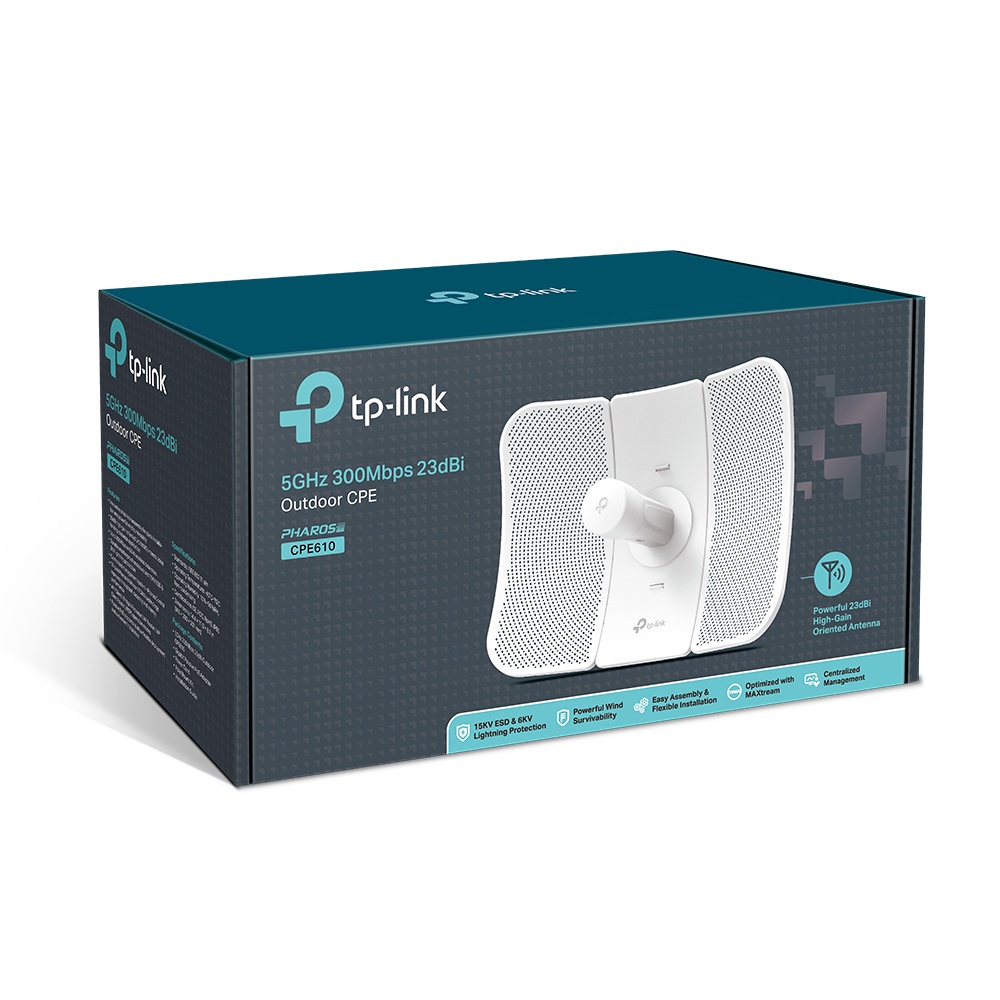

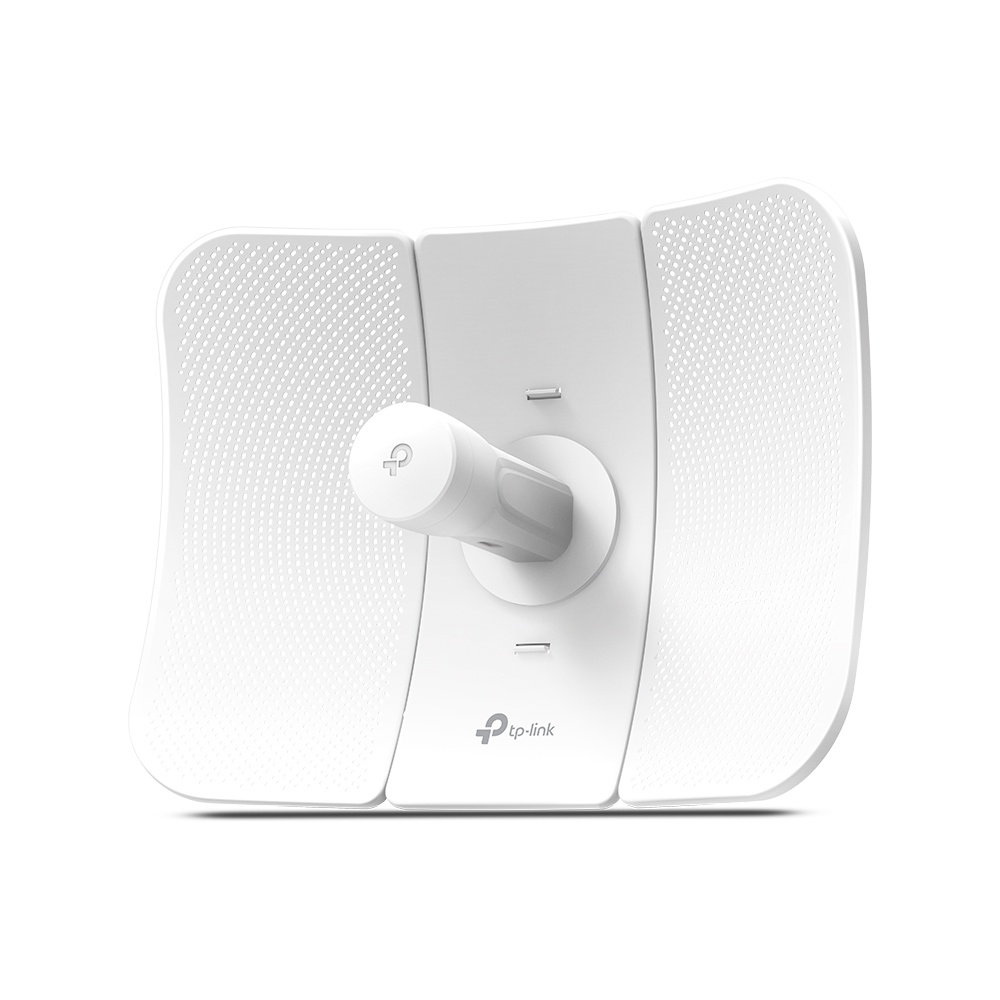

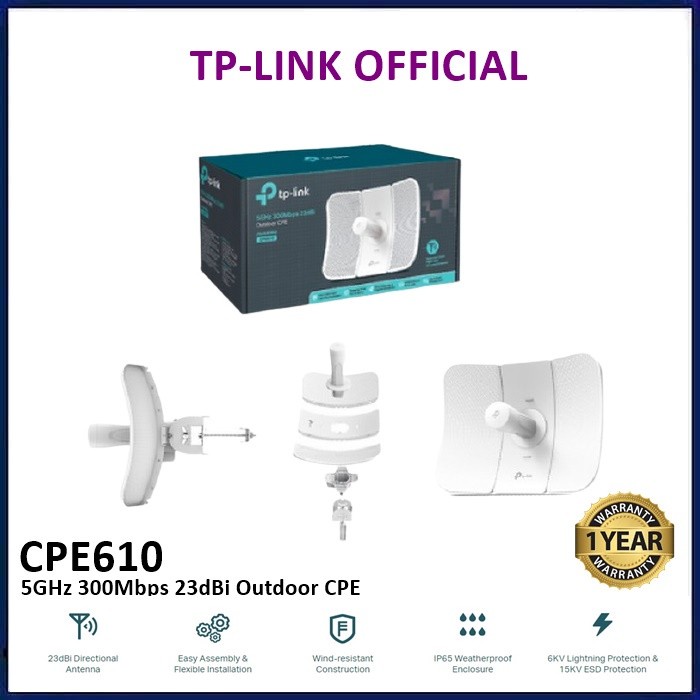

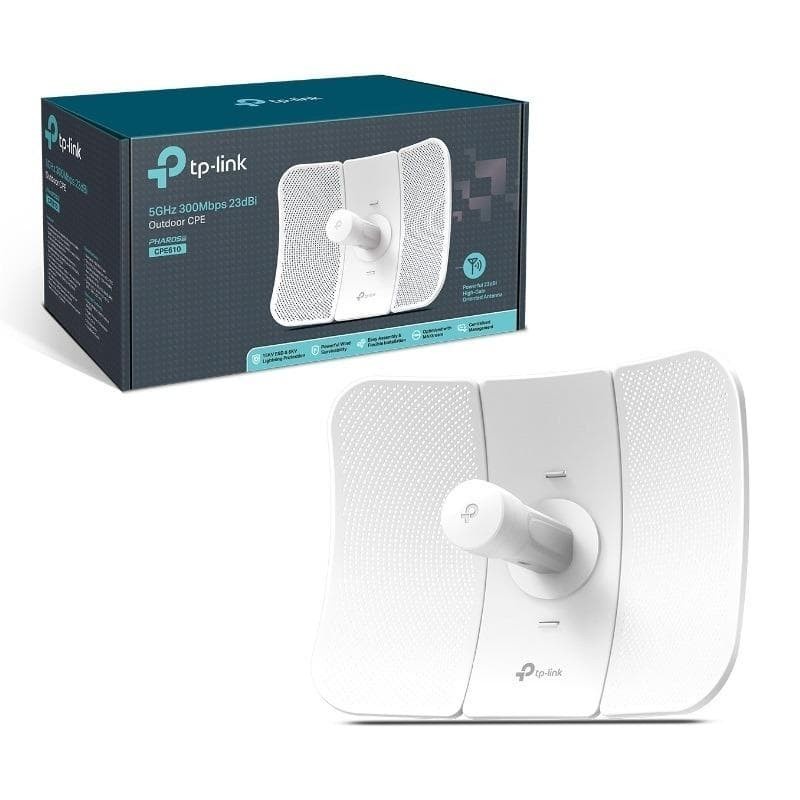

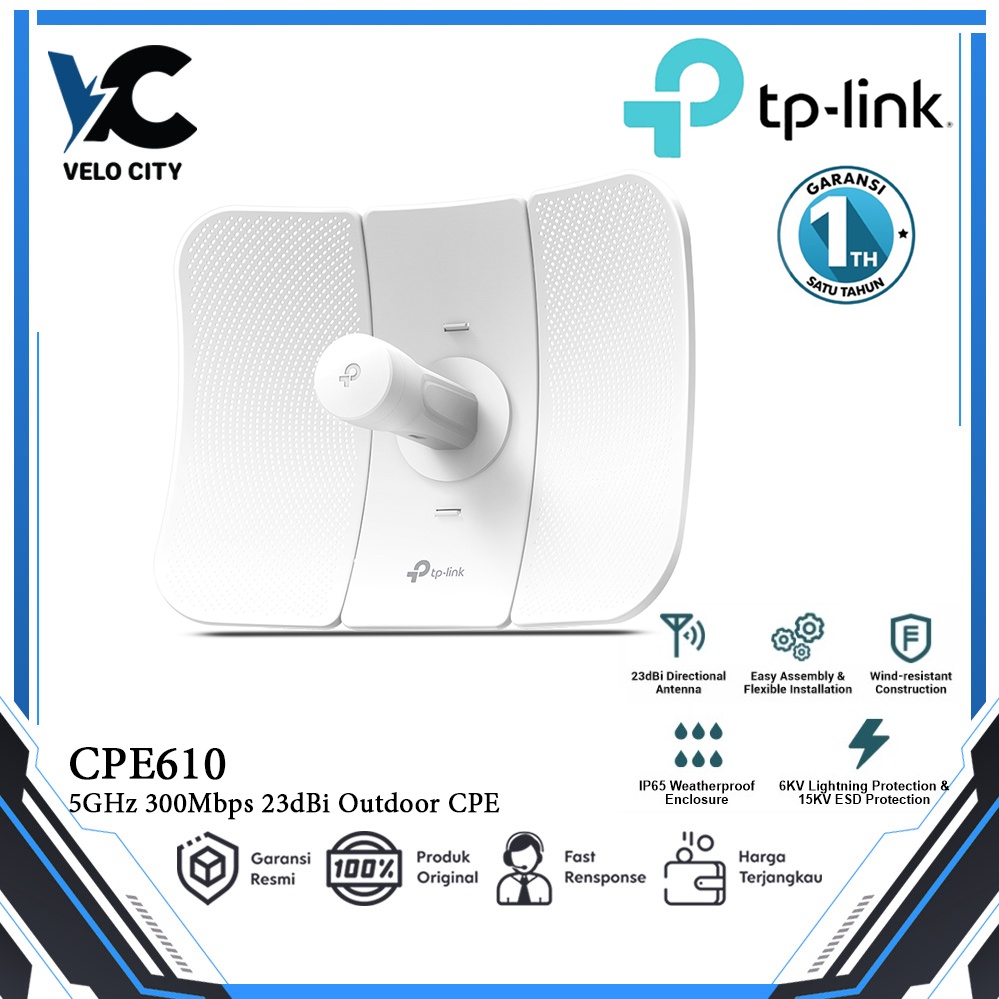

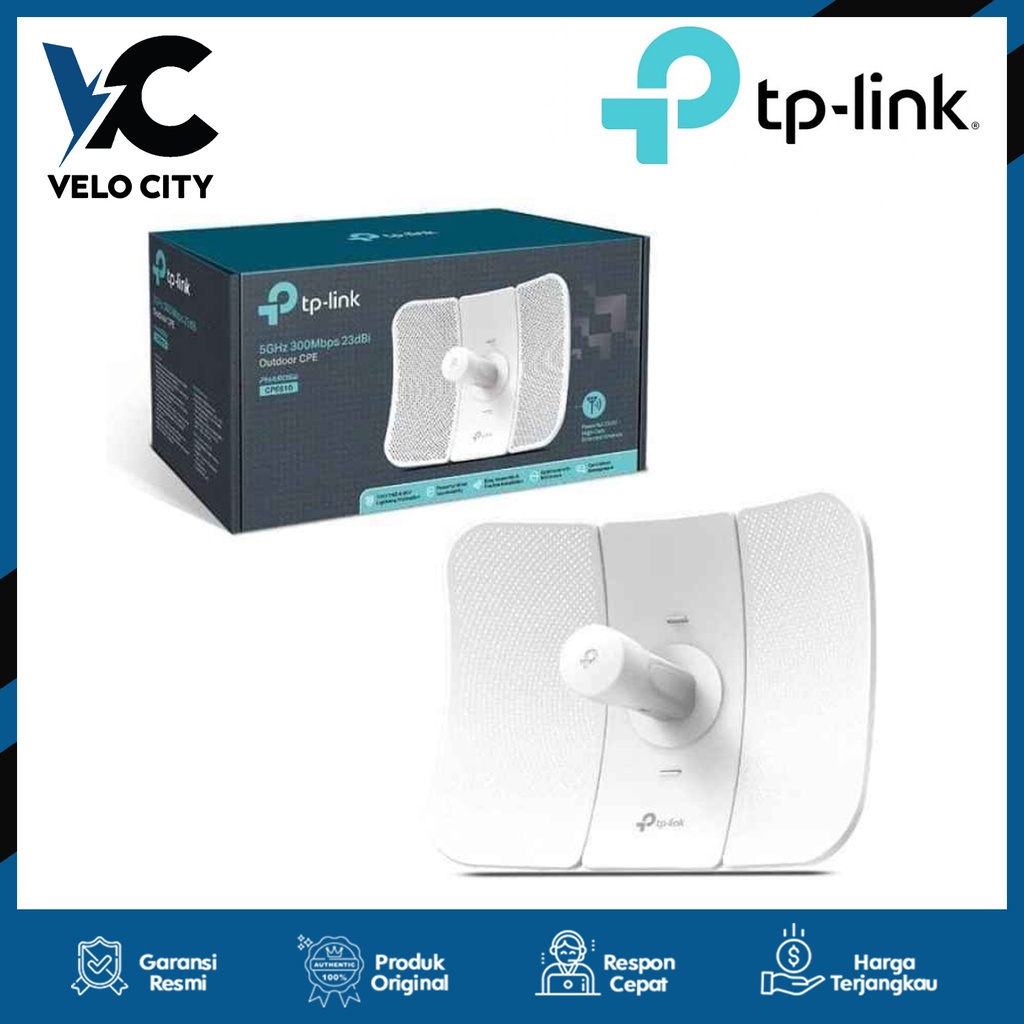

TP-Link CPE610 TPLink 5GHz 300Mbps 23dBi Outdoor CPE Antenna Antena

Detail TP-Link CPE610 TPLink 5GHz 300Mbps 23dBi Outdoor CPE Antenna Antena

Alasan Mengapa Harus Beli di Velo City :
1. Barang Asli, Baru dan Bergaransi Resmi (Gratis kalo tidak Original)
2. Selalu Ready Stock dan Siap Kirim
3. Packing Aman dan Rapi
4. Pengiriman Tepat Waktu
5. Pelayanan Ramah dengan Product Knowledge yang Baik
6. Proses Klaim Garansi Mudah & dibantu Hingga Selesai
7. Banyak Bonus dan Voucher Cashback yang didapatkan
8. Memiliki Cabang Toko Resmi Offline yang tersebar di seluruh Indonesia


- TP-Link CPE610 TPLink 5GHz 300Mbps 23dBi Outdoor CPE Antenna Antena
- Garansi resmi 1 tahun dari TP-Link Indonesia.


TECHNICAL SPESIFICATION:
- Processor Qualcomm 560MHz CPU, MIPS 74Kc
- Memory : 64MB DDR2 RAM,8MB Flash
- Interface : 1 10/100Mbps Shielded Ethernet Port (LAN/POE), 1 Reset Button
- Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC
- Dimensions 360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)
- Antenna Gain 23dBi
- Antenna Beamwidth 9(Azimuth), 7(Elevation)
- Protection 15KV ESD Protection 6KV Lightning Protection
- Enclosure Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
- Wireless Standards IEEE 802.11a/n
- Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
- Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
- Up to 144.4Mbps (20MHz,Dynamic)
- Up to 72.2Mbps (10MHz,Dynamic)
- Up to 36.1Mbps (5MHz,Dynamic)
- Frequency 5.15~5.85GHz
- Transmit Power Max. 29dBm/790mW (Adjustable power by 1dBm)

SOFTWARE FEATURES
- Operating Modes AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP Client)
- Network Configuration WAN: Static/Dynamic/PPPoE/L2TP/PPTP
- LAN: Static/Dynamic/DHCP
- Forwarding: DMZ/ALG/UPnP/Virtual Server/Port Trigger
- Security: SPI Firewall/ Ping Forbidden/VPN/DoS Protection
- Access Control Static Routing
- Bandwidth ControL IP & MAC Binding
- Wireless Configurations Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz
- Auto Channel Selection Transmit Power Control
- Dynamic Frequency Selection(DFS) WDS Enable/Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption 64/128/152-bit WEP Encryption
- SSID Broadcast Enable/Disable
- Multi-SSID with VLAN Tagging(AP Mode only)
- Distance/ACK Timeout Setting Wireless MAC Address Filter

Package Contents
- Outdoor Wireless CPE
- 24V 0.5A Passive PoE Adapter

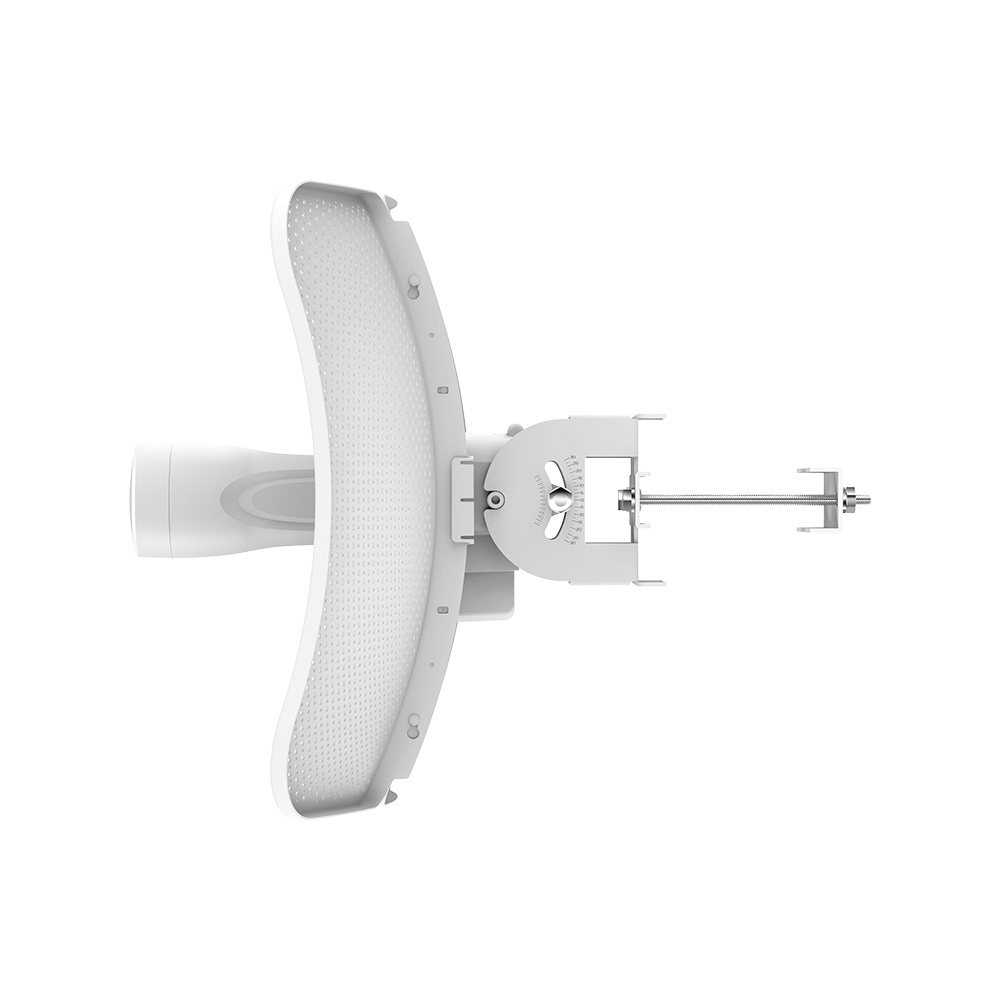

- Pole Mounting Straps
- AC Power Cord
- Installation Guide

Gambar produk
