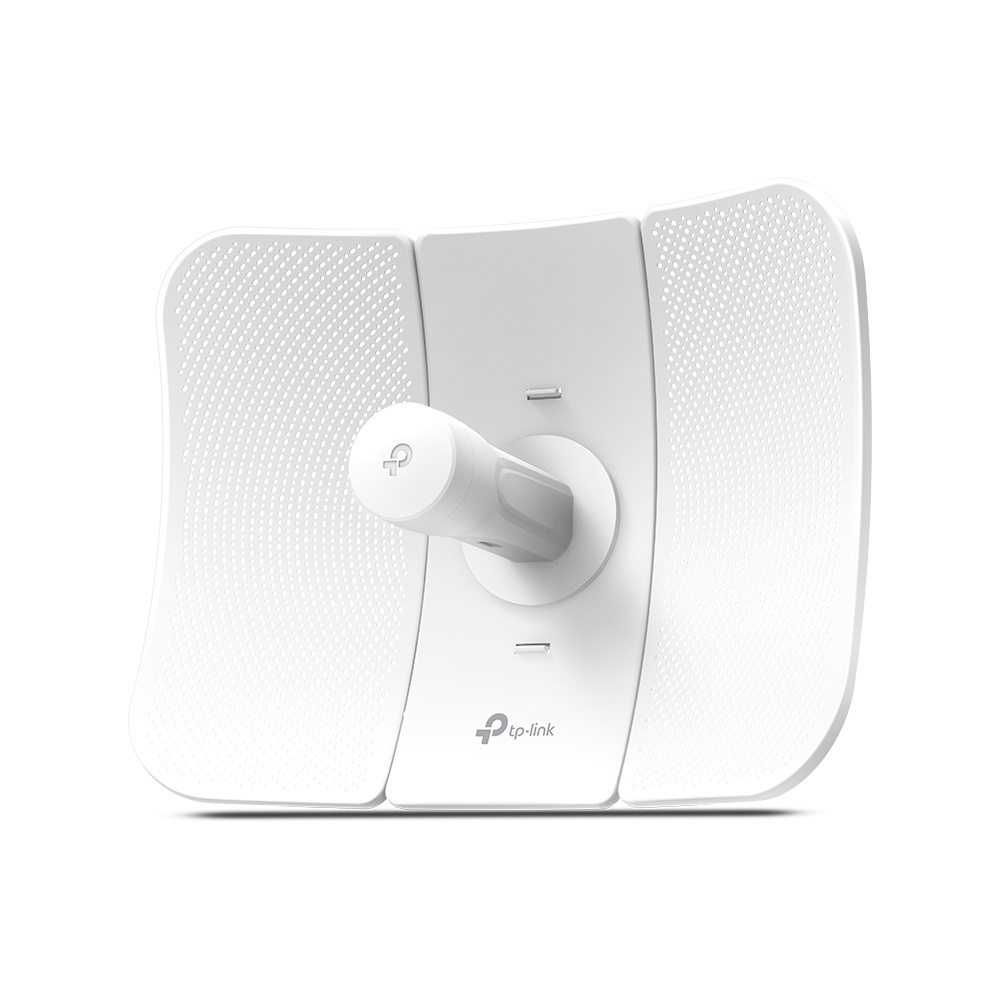

TP-LINK CPE610 Litebeam 5Ghz 23dBi 300Mbps Outdoor Wireless TPLINK

Detail TP-LINK CPE610 Litebeam 5Ghz 23dBi 300Mbps Outdoor Wireless TPLINK

TP-LINK CPE610 TPLINK Litebeam 5Ghz 23dBi 300Mbps Outdoor TPLINK

SPESIFICATION
HARDWARE FEATURES
Processor
-Qualcomm 560MHz CPU, MIPS 74Kc
Memory
-64MB DDR2 RAM,8MB Flash
Interface
-1 10/100Mbps Shielded Ethernet Port (LAN/POE)
-1 Reset Button
Power Supply
-Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC

WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n
Proprietary Protocol
TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency
5.15~5.85GHz
Transmit Power
Max. 25dBm (Adjustable power by 1dBm)
Power Consumption
-7.41 W
-Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )
-366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain
-23dBi
Antenna Beamwidth
-9°(Azimuth), 7°(Elevation)
Protection
-15KV ESD Protection
-6KV Lightning Protection
Enclosure
-Material: Outdoor PC stabilized plastic
-Weatherproof: IP65 water and dust proof design

SOFTWARE FEATURES
-Network Configuration
-WAN: Static/Dynamic/PPPoE/L2TP/PPTP
-LAN: Static/Dynamic/DHCP
-Forwarding: ALG/UPnP/Virtual Server/Port Trigger
-Security: SPI Firewall/ Ping Forbidden/DoS Protection
-Access Control
-Static Routing
-Bandwidth Control
-IP & MAC Binding

Wireless Configurations
-Pharos MAXtream TDMA Technology
-Selectable Channel Width: 5/10/20/40MHz
-Auto Channel Selection
-Transmit Power Control
-Dynamic Frequency Selection(DFS)
-WDS Enable/Disable
-Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
-64/128/152-bit WEP Encryption
-SSID Broadcast Enable/Disable
-Multi-SSID with VLAN Tagging(AP Mode only)
-Distance/ACK Timeout Setting
-Wireless MAC Address Filter
-Wireless Advanced:
-Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
