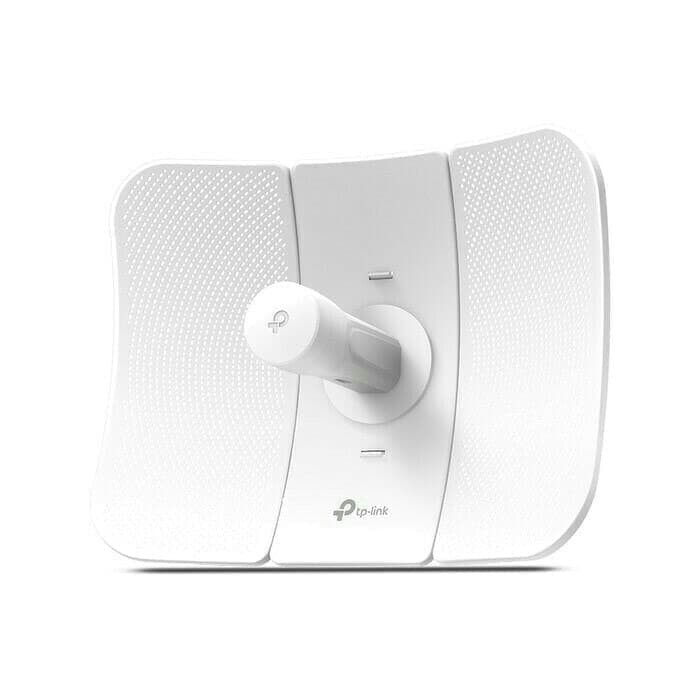

TP-LINK CPE610 5GHz 300Mbps 23dBi Outdoor CPE - TP LINK CPE 610

Detail TP-LINK CPE610 5GHz 300Mbps 23dBi Outdoor CPE - TP LINK CPE 610

Interface :l
1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button

Power Supply:
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC

Antenna Gain 23dBi
Antenna Beamwidth 9(Azimuth), 7(Elevation)
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

Frequency 5.15~5.85GHz
Transmit Power Max. 27dBm power by 1dBm

Network Configuration:
WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding

Wireless Configurations:
Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection DFS
WDS Enable/Disable
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging AP Mode only
Distance/ACK Timeout Setting
MAC Address Filter
Advanced:
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management:
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent v2c
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools:
Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute

System-level Optimizations:
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

Certification CE, FCC, IC, RoHS, IP65

Package Contents:
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter

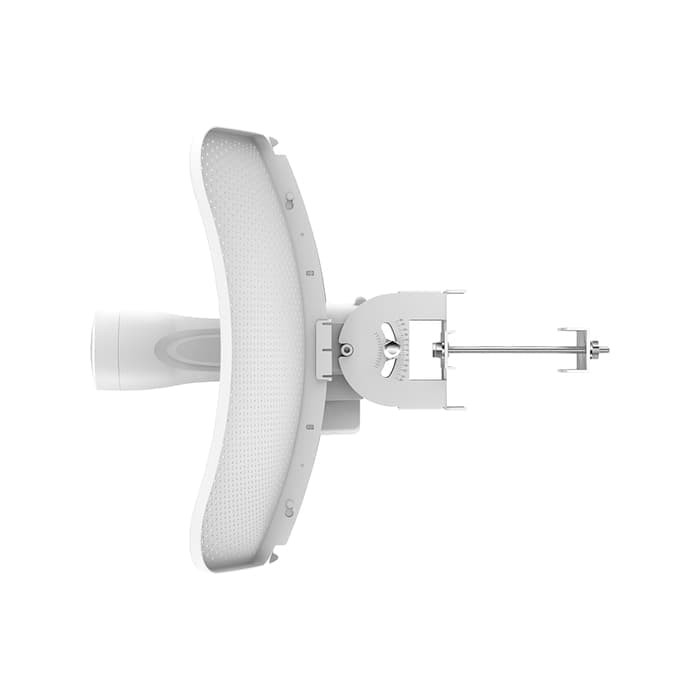

Pole Mounting Straps
AC Power Cord
Installation Guide
