TP-Link CPE510 5GHz 300Mbps 13dbi Outdoor CPE 510

Detail TP-Link CPE510 5GHz 300Mbps 13dbi Outdoor CPE 510

TP-Link CPE510 5GHz 300Mbps 13dbi Outdoor CPE 510 , Ver: 3.20

Terpasang antena MIMO directional 13dBi dual-polarized 2×2
Daya transmisi disesuaikan dari 0 sampai 27dBm/500mw
Optimasi sistem level agar dapat melebihi jarak jauh 15km transmisi nirkabel
TP-LINK Pharos MAXtream TDMA (Time-Division Multiple-Access-) teknologi peningkatan kinerja produk pada throughput, kapasitas dan kinerja latency, ideal untuk aplikasi PTMP
Sistem Manajemen terpusat – Pharos Kontrol
Mode operasi AP / Client / Repeater / AP Router / AP Client Router (WISP)
Pasif PoE Adapter mendukung penyebaran Power over Ethernet dan memungkinkan perangkat dapat diatur ulang jarak jauh

HARDWARE FEATURES
Processor Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 13 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 224 x 79 x 60 mm
Antenna Type Built-in 13dBi 2×2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection 15KV ESD Protection
6000V Lightning Protection
Enclosure Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Reception Sensitivity • 802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
• 802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Transmission Power 27dBm/500mw (Adjustable power by 1dBm)

SOFTWARE FEATURES
Wireless Configurations Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)

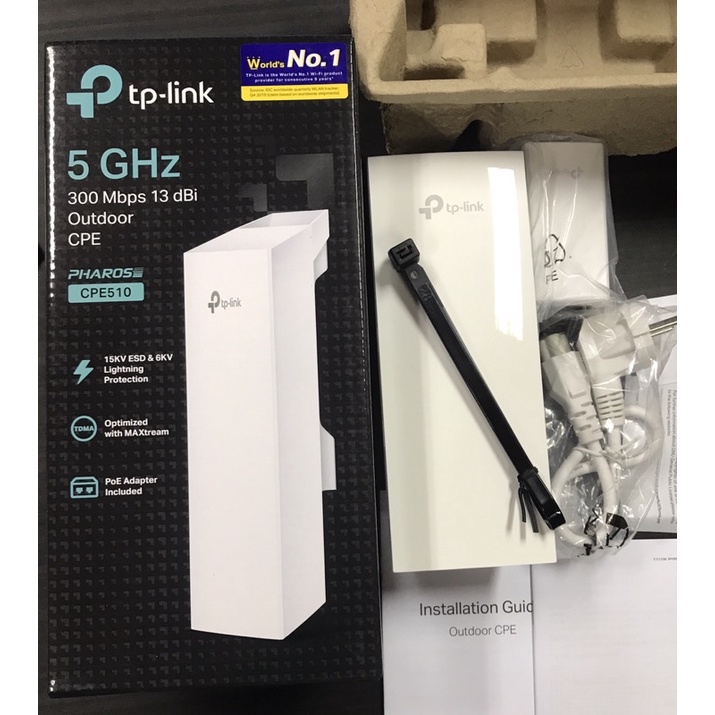

Package Contents :
Outdoor Wireless CPE510
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide

Gambar produk
