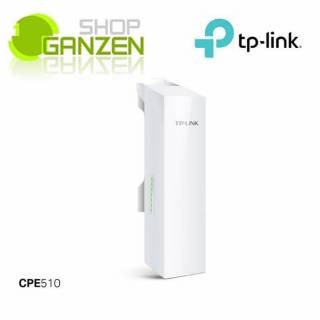

TP-LINK CPE510 5GHz 300Mbps 13dBi Outdoor CPE

Detail TP-LINK CPE510 5GHz 300Mbps 13dBi Outdoor CPE

Deskripsi TP-LINK CPE510 5GHz 300Mbps 13dBi Outdoor CPE - White
Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 23dBm/200mw
System-level optimizations for more than 15km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Processor Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface1
10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 Grounding Terminal
1 Reset Button
Power Supply
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Antenna Type
Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 45° (E-Plane)
Note: For more details, please refer to datasheet

Wireless Standards IEEE 802.11a/n (with Pharos MAXtream disabled)

Frequency 5.15~5.85GHz

Transmission Power 23dBm/200mw (Adjustable power by 1dBm)

Wireless Configurations
Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
