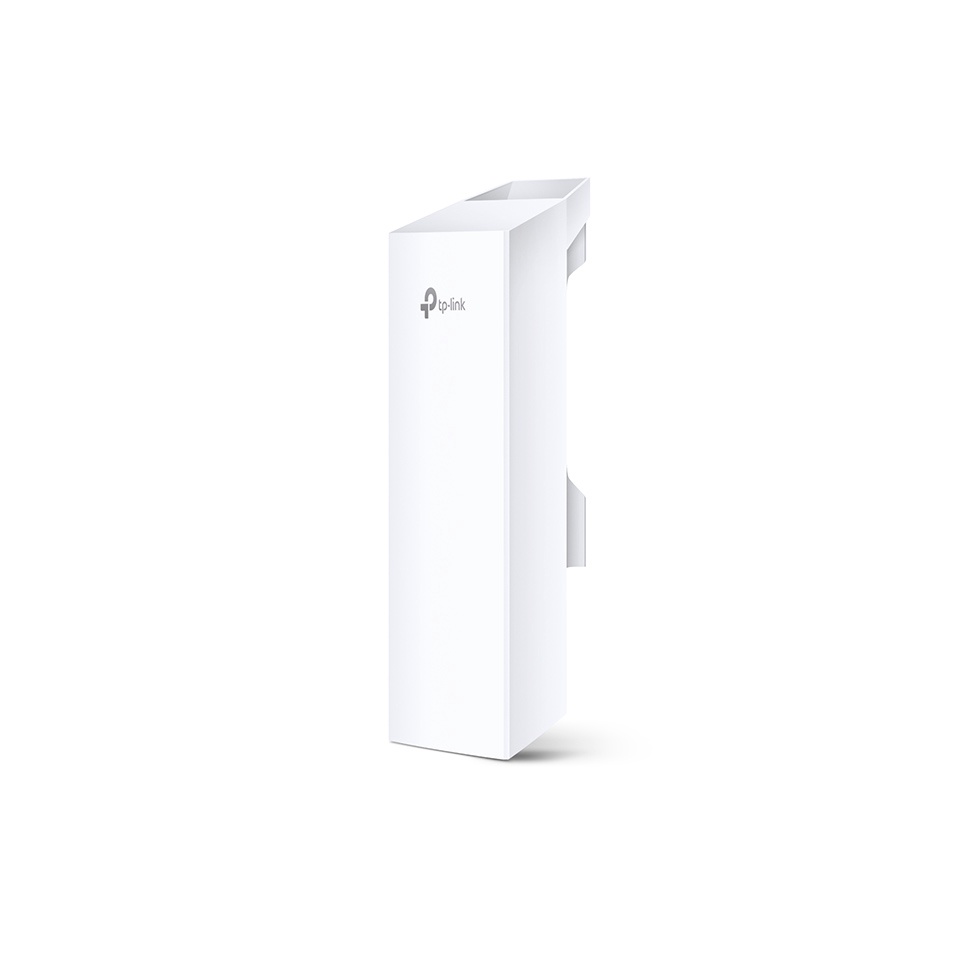

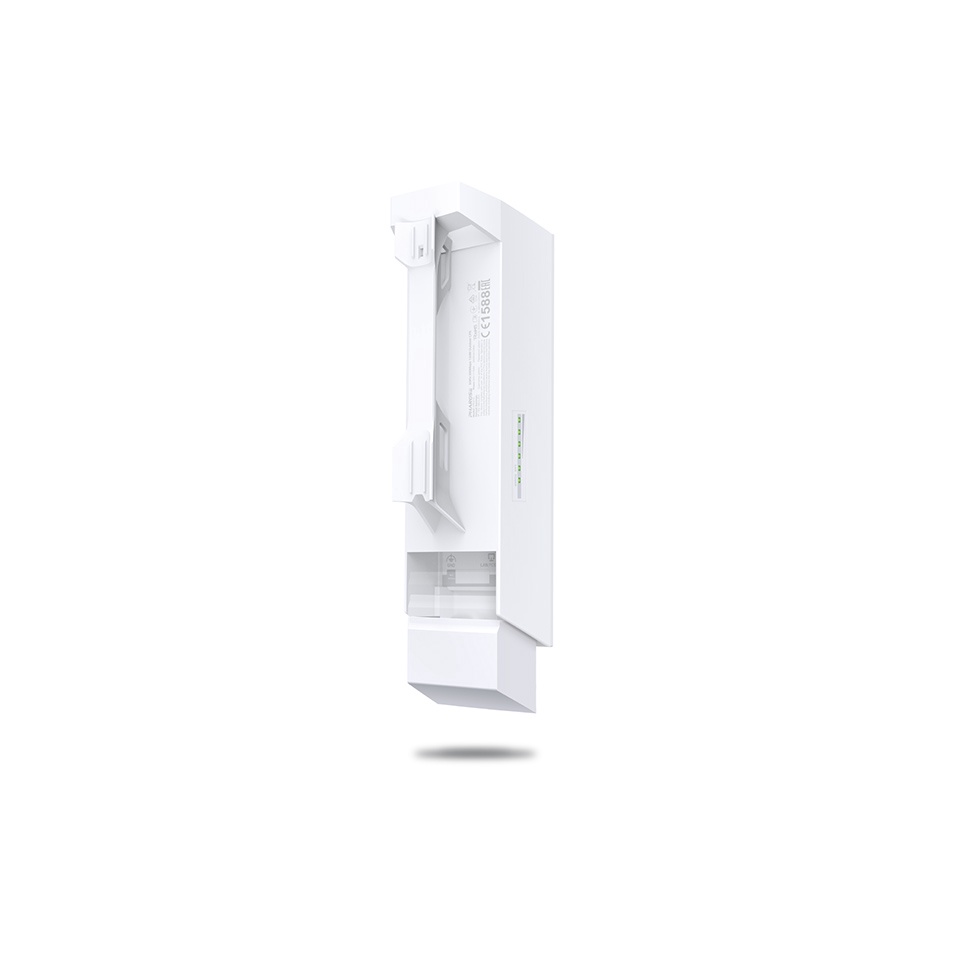

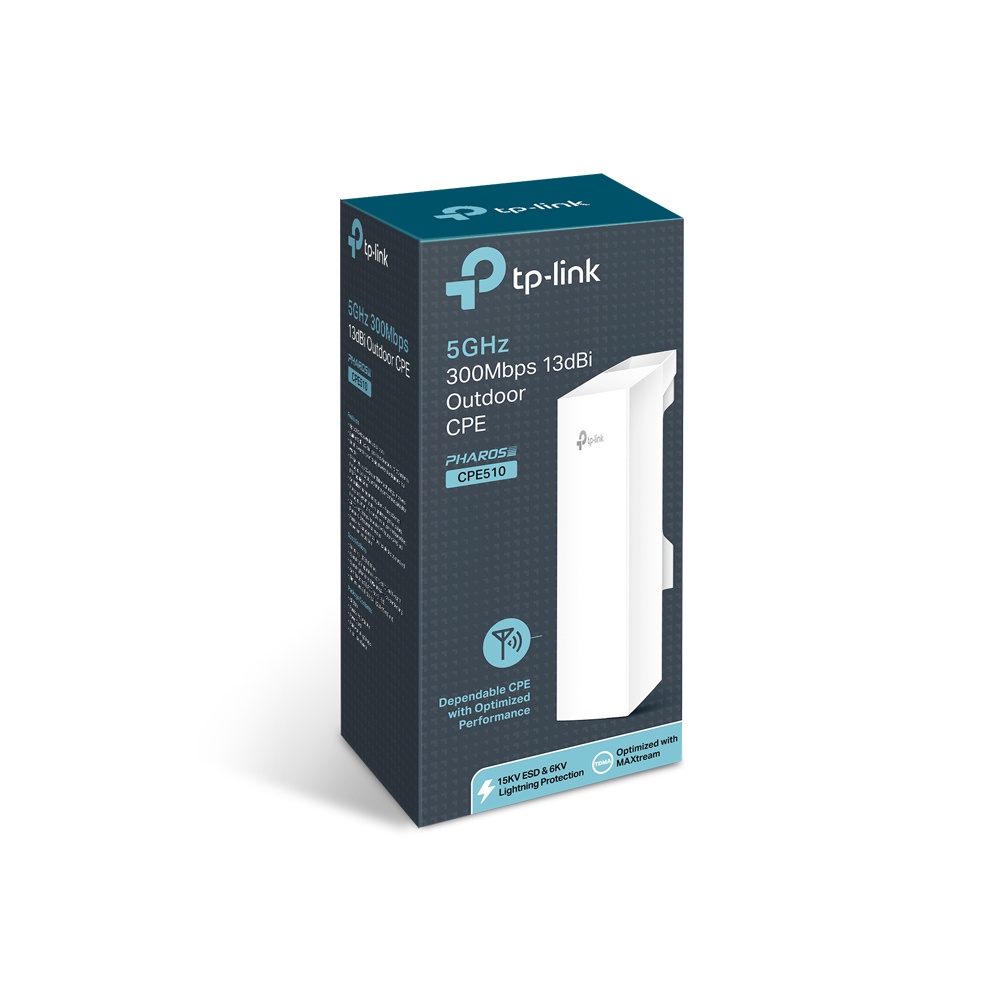

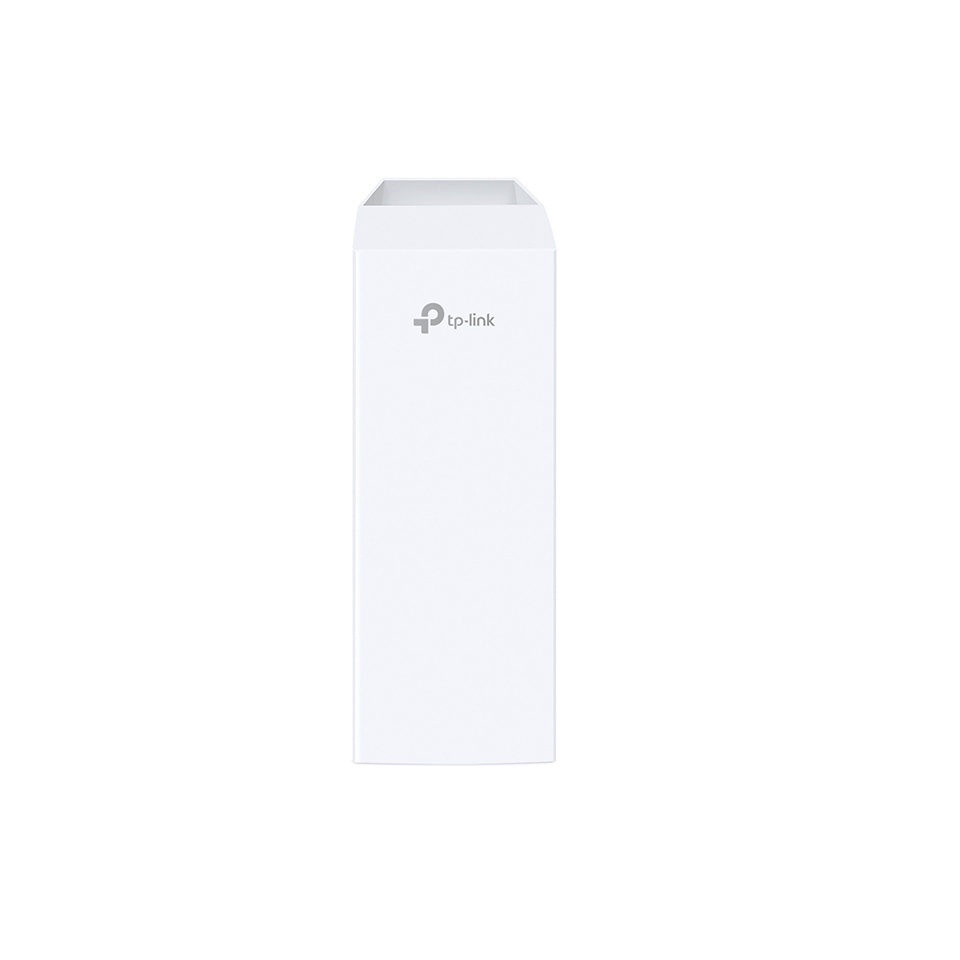

TP-LINK CPE510 5GHz 300Mbps 13dBi Antenna Outdoor Wireless TPLINK

Detail TP-LINK CPE510 5GHz 300Mbps 13dBi Antenna Outdoor Wireless TPLINK

TP-LINK CPE510 5GHz 300Mbps 13dBi Antenna Wireless Outdoor CPE TPLINK

SPESIFICATION
HARDWARE FEATURES
Processor
Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory
64MB DDR2 RAM, 8MB Flash
Interface

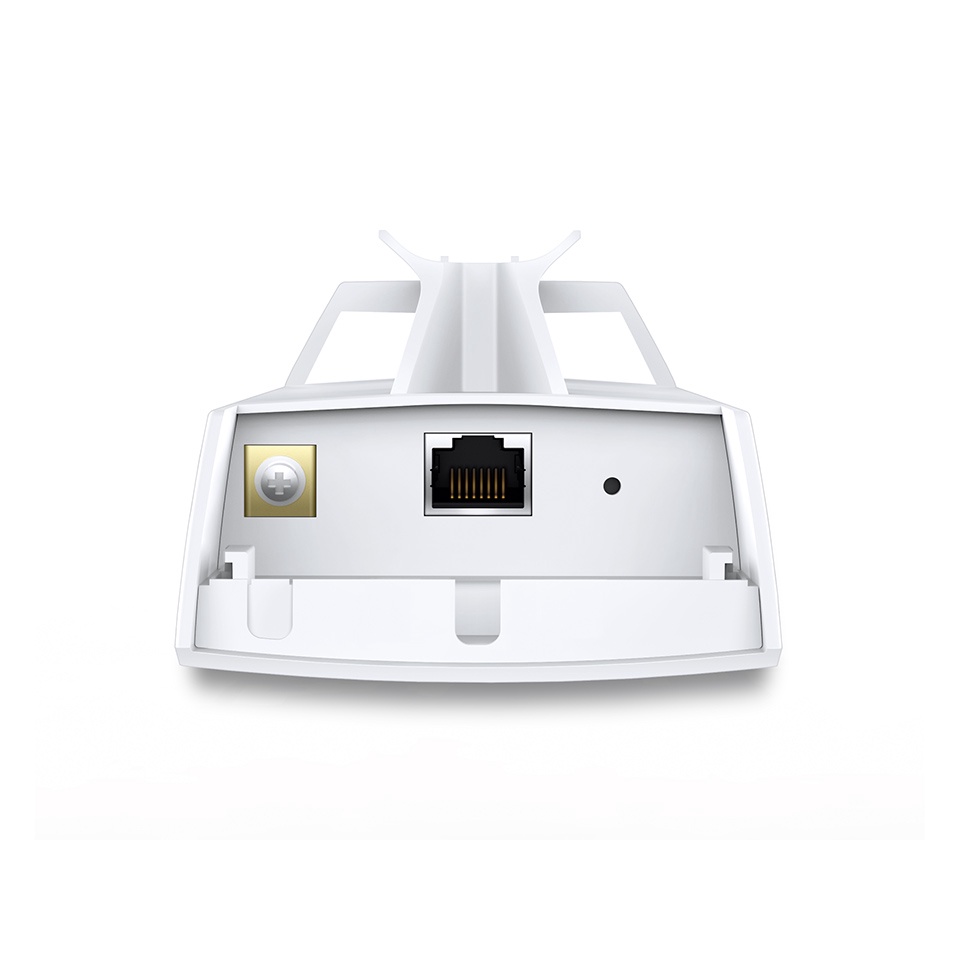

1 10/100Mbps Shielded Ethernet Port (Passive PoE in)
1 Grounding Terminal
1 Reset Button
Power Supply
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )
8.8 x 3.1 x 2.4 in
Antenna Type
Built-in 13dBi 2 x 2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Protection
15KV ESD Protection
6KV Lightning Protection
Enclosure
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol
TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency
5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power
23dBm/200mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

Garansi Resmi 2 Tahun

Gambar produk
