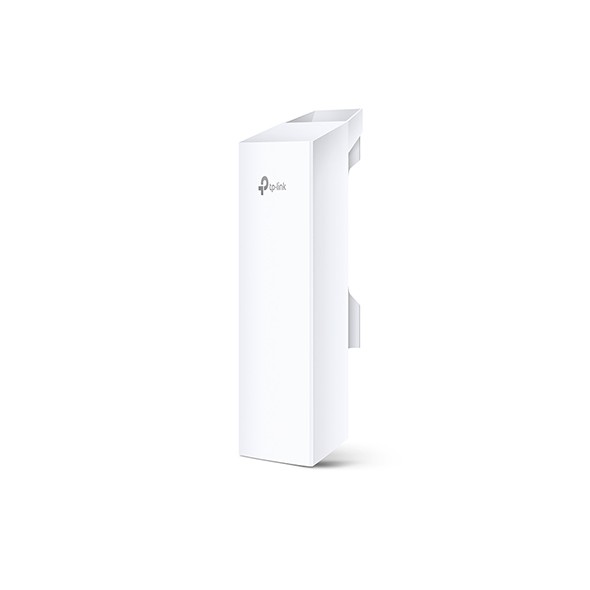

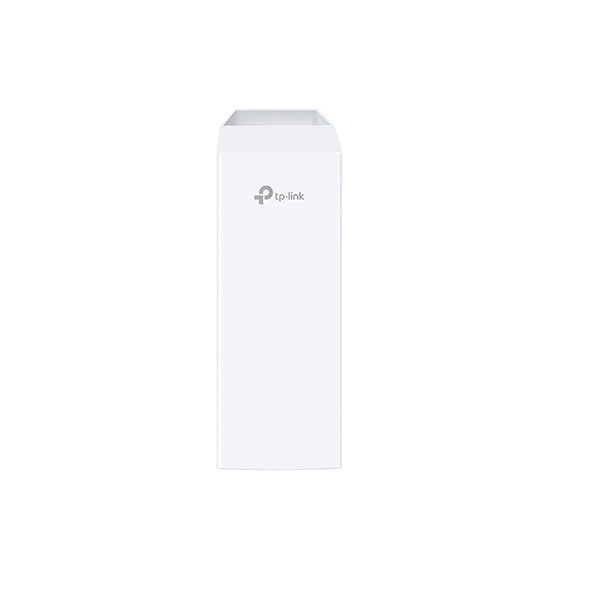

TP-LINK CPE510 5GHz 300Mbps 13dBi Outdoor - TP LINK CPE 510

Detail TP-LINK CPE510 5GHz 300Mbps 13dBi Outdoor - TP LINK CPE 510

Orignal, garansi resmi 1 tahun


HARDWARE FEATURES

Processor Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash

Interface:
1 10/100Mbps Shielded Ethernet Port (Passive PoE in)
1 Grounding Terminal
1 Reset Button

Power Supply:
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC

Power Consumption:
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Antenna Type:
Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45 (H-Plane) / 30 (E-Plane)
Note: For more details, please refer to datasheet

Protection:
15KV ESD Protection
6KV Lightning Protection

Enclosure:
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification


WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)

Frequency:
5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Transmission Power:
23dBm/200mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.


SOFTWARE FEATURES

Wireless Configurations:
Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management :
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools:
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute

System-level Optimizations:
ptimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog


POE ADAPTER FEATURES

Input Current 0.8A Max @ 100VAC
Input Voltage 100VA~240VAC @ 50Hz~60Hz

Output:
24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency >80%
Output Voltage 24VDC(+4,5pins; -7,8pins)
Input 100-240VAC, 50/60Hz

Power Status LEDs:
0~0.8A: Green
0.8A~1.0A: Red

Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Interfaces:
1 AC Jack with Earth Ground
1 10/100/1000Mbps S
