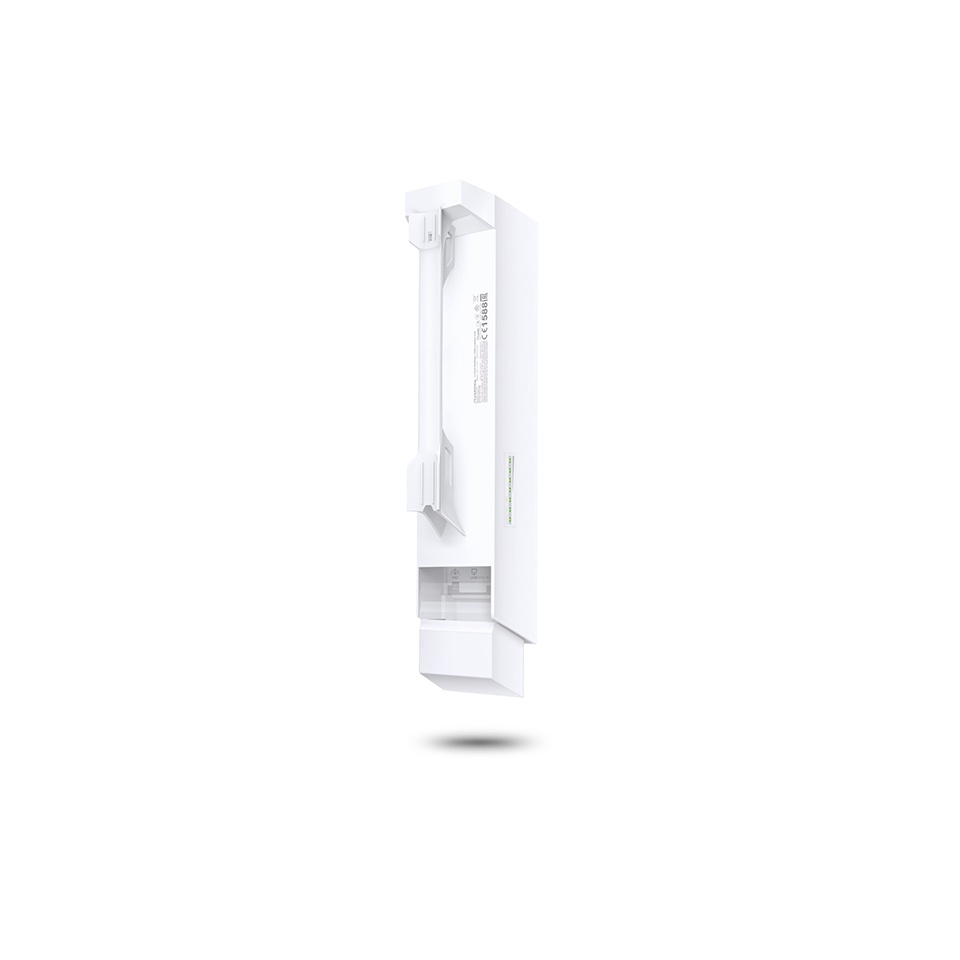

TP-LINK CPE220 300Mbps12dBi 2.4GHz Outdoor Wireless CPE TPLINK

Detail TP-LINK CPE220 300Mbps12dBi 2.4GHz Outdoor Wireless CPE TPLINK

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE TP Link

-Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
-Adjustable transmission power from 0 to 30dBm/1000mw
-System-level optimizations for more than 13km long range wireless transmission
-TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
-Centralized Management System – Pharos Control
-AP / Client / AP Router / AP Client Router (WISP) operation modes
-Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

HARDWARE FEATURES
Processor: Qualcomm Atheros 560MHz CPU, MIPS 24Kc
Memory: 64MB DDR2 RAM, 8MB Flash
Interface:
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button
Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption:
10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
Dimensions (W x D x H) : 11×3.1×2.1 inch (276×79×60 mm)
Antenna Type:
Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection:
15KV ESD Protection
6KV Lightning Protection
Enclosure:
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
