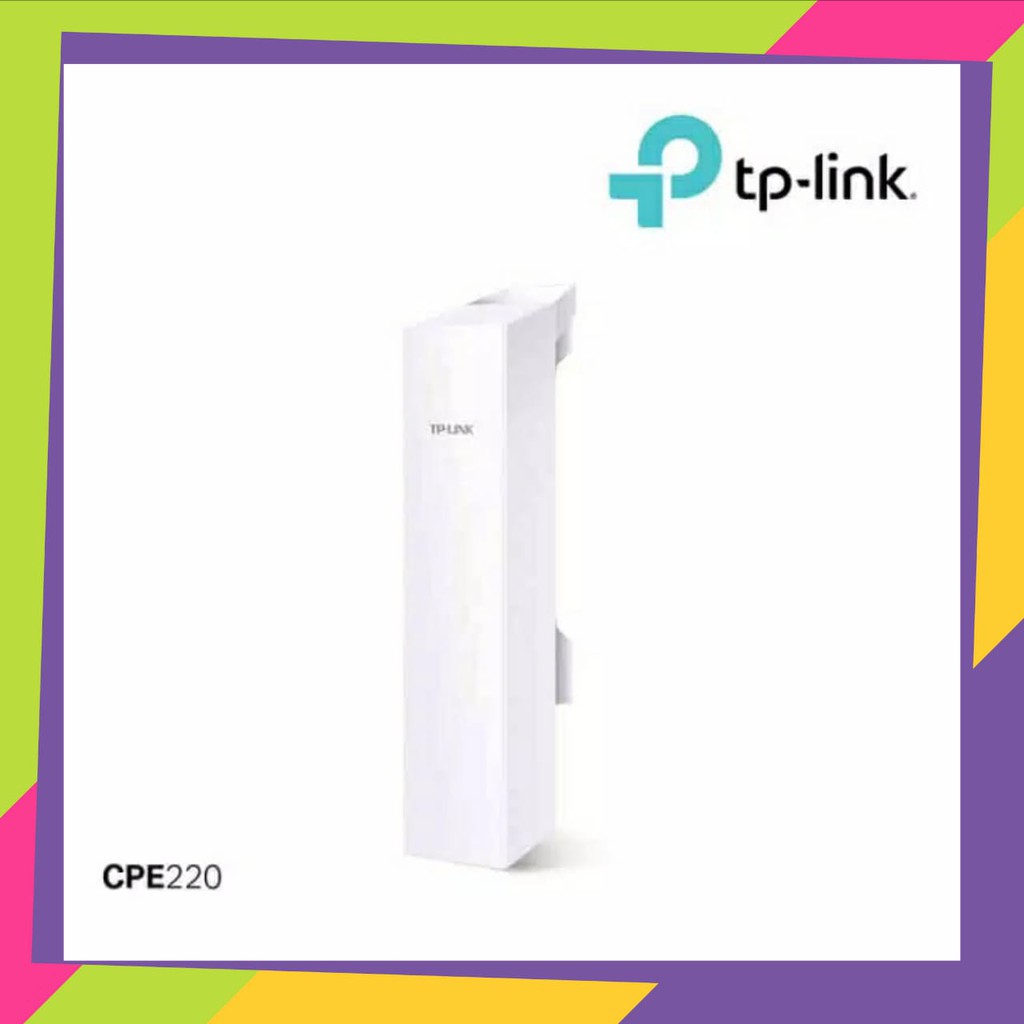

TP-LINK CPE220 300Mbps 12dBi Outdoor CPE Router TP LINK PHAROS CPE220

Detail TP-LINK CPE220 300Mbps 12dBi Outdoor CPE Router TP LINK PHAROS CPE220

TPLINK CPE 2.4GHz 300Mbps 12dBi Outdoor Pharos CPE CPE220, VER 3.0

GARANSI RESMI TPLINK INDONESIA
Antenna built-in MIMO dual-polarized directional 2x2 12dBi
Kekuatan transmisi yang bisa disesuaikan dari 0 sampai 30dBm/1000mw
Optimisasi tingkat sistem untuk transmisi data wireless jarak jauh sampai dengan 13km
Teknologi TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) meningkatkan throughput, kapasitas dan kinerja latency, ideal untuk aplikasi PTMP
Sistem Manajemen terpusat - Pharos Kontrol
Mendukung mode operasi AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)
Adaptor Passive PoE mendukung penggunaan daya melalui Ethernet sampai dengan 60 meter (200 feet) dan memungkinkan perangkat direset secara remote

HARDWARE FEATURES
Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash

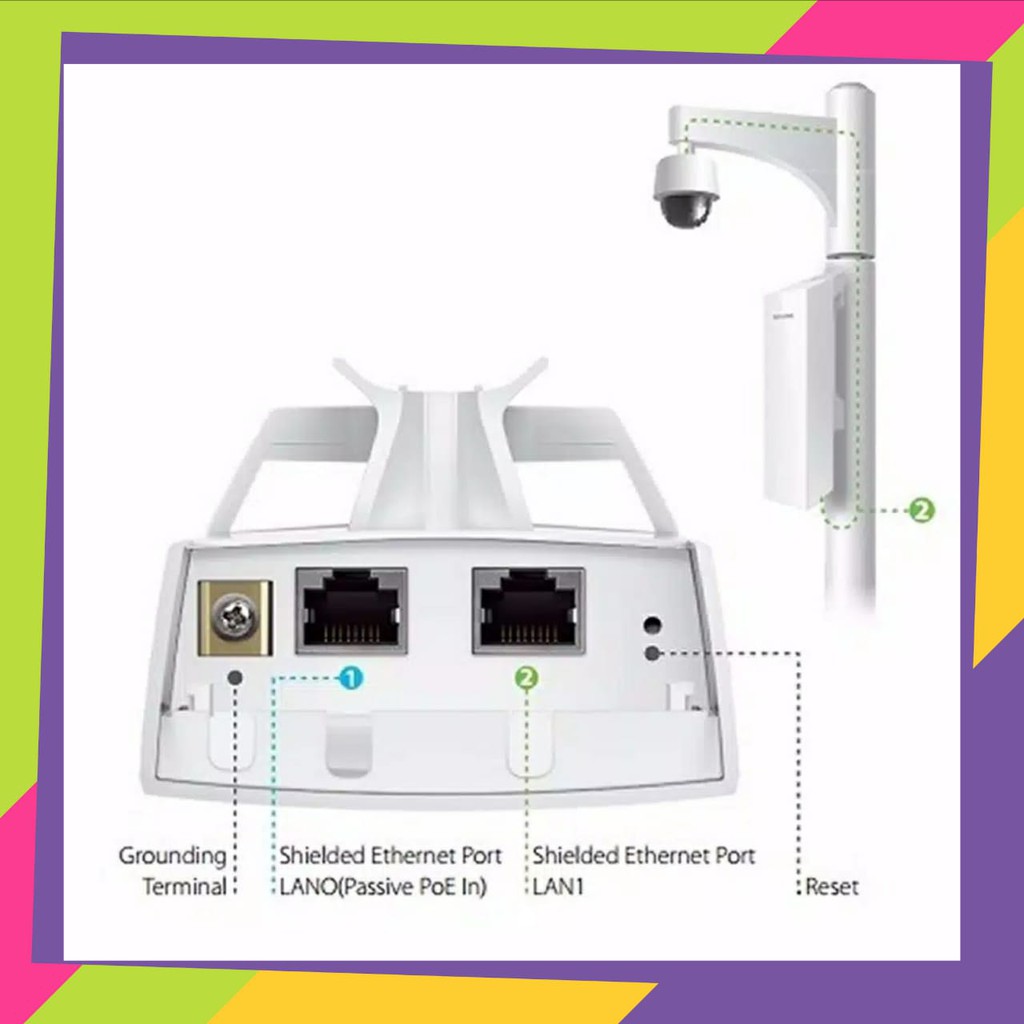

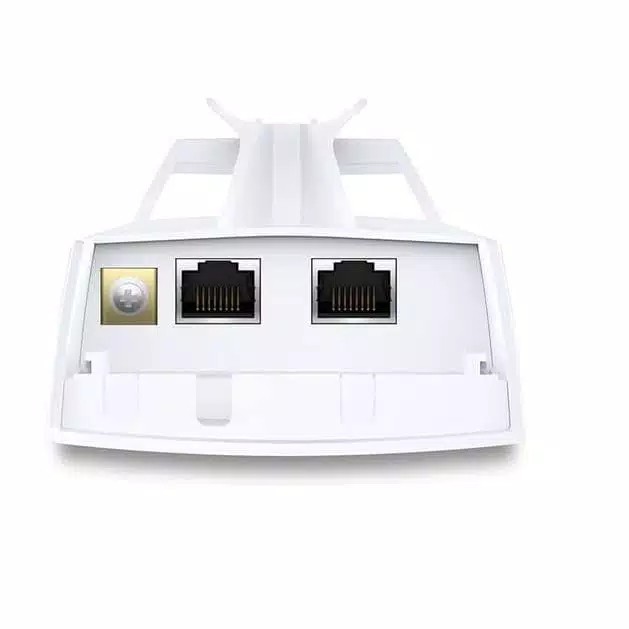

Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 11×3.1×2.1 inch (276×79×60 mm)
Antenna Type Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations
of the countries or regions in which the device is used.
Transmission Power 30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending
on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
Wireless Configurations Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application
#TPLINK#CPE220#CPE
