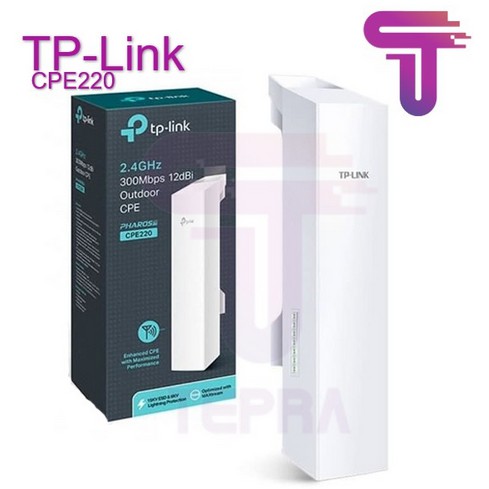

Detail TP-LINK CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

Deskripsi Wireless Outdoor 2.4GHz 300Mbps 12dBi CPE220 TP-Link

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Antenna built-in MIMO dual-polarized directional 2x2 12dBi
Kekuatan transmisi yang bisa disesuaikan dari 0 sampai 30dBm/1000mw
Optimisasi tingkat sistem untuk transmisi data wireless jarak jauh sampai dengan 13km
Teknologi TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) meningkatkan throughput, kapasitas dan kinerja latency, ideal untuk aplikasi PTMP
Sistem Manajemen terpusat - Pharos Kontrol
Mendukung mode operasi AP / Client / AP Router / AP Client Router (WISP)
Adaptor Passive PoE mendukung penggunaan daya melalui Ethernet sampai dengan 60 meter (200 feet) dan memungkinkan perangkat direset secara remote

HARDWARE FEATURES
Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) 11×3.1×2.1 inch (276×79×60 mm)
Antenna Type Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection 15KV ESD Protection
6KV Lightning Protection
Enclosure Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 2.4~2.483GHz
