TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

Detail TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

Garansi Resmi TP-Link 1 Tahun dari TP-Link Indonesia.

Spesifikasi

HARDWARE FEATURES
Processor
Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory
64MB DDR2 RAM, 8MB Flash

Interface
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button

Power Supply
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC

Power Consumption
10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.

Dimensions ( W x D x H )
11×3.1×2.1 inch (276×79×60 mm)

Antenna Type
Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet

Protection
15KV ESD Protection
6KV Lightning Protection

Enclosure
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

WIRELESS FEATURES
Wireless Standards
IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol
TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)

Frequency
2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations
of the countries or regions in which the device is used.

Transmission Power
30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending
on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES
Wireless Configurations
Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute

System-level Optimizations
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

POE ADAPTER FEATURES
Dimensions(W x D x H)
85.8×43.9×31.9 mm

Interfaces
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)

Button
Remote Rese

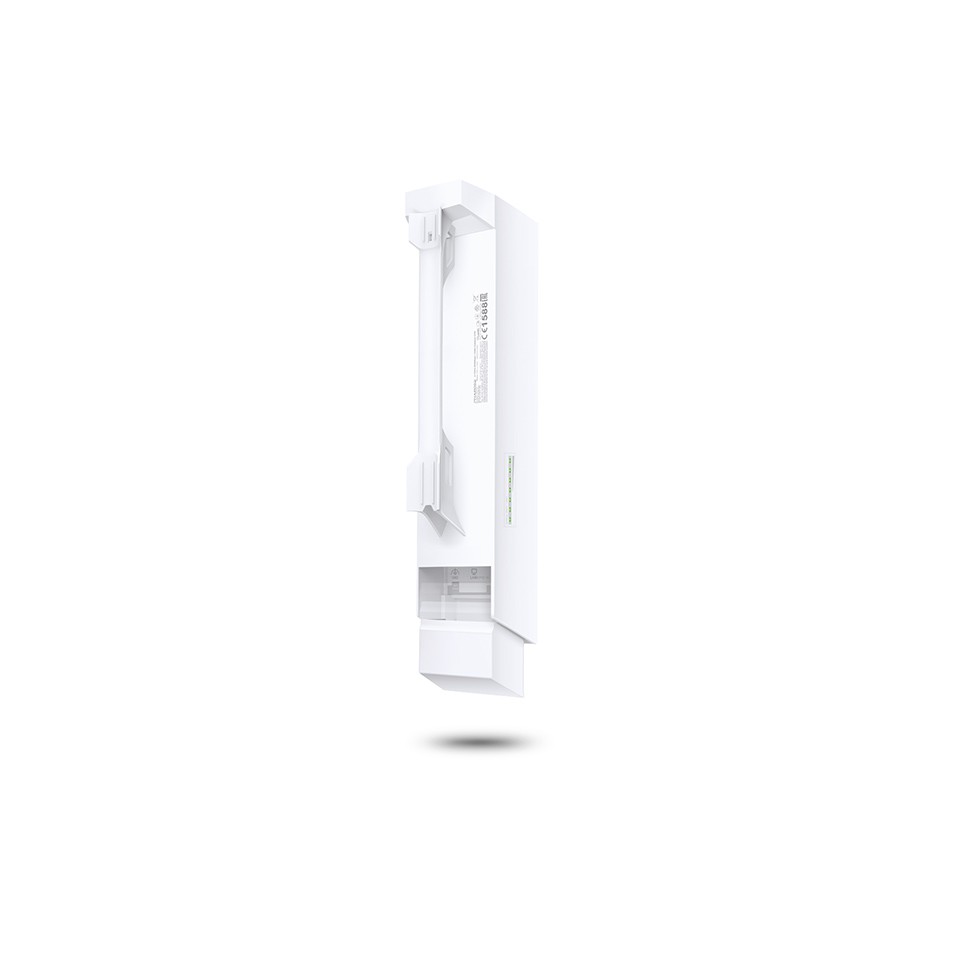

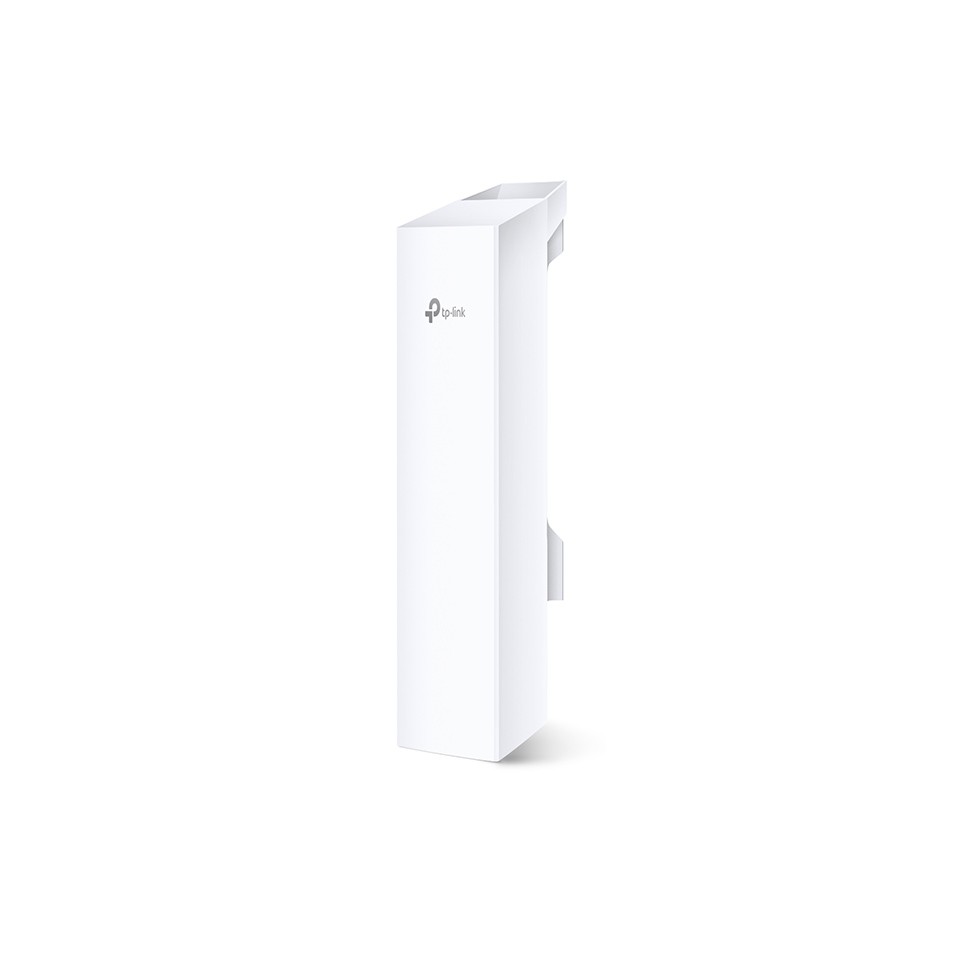

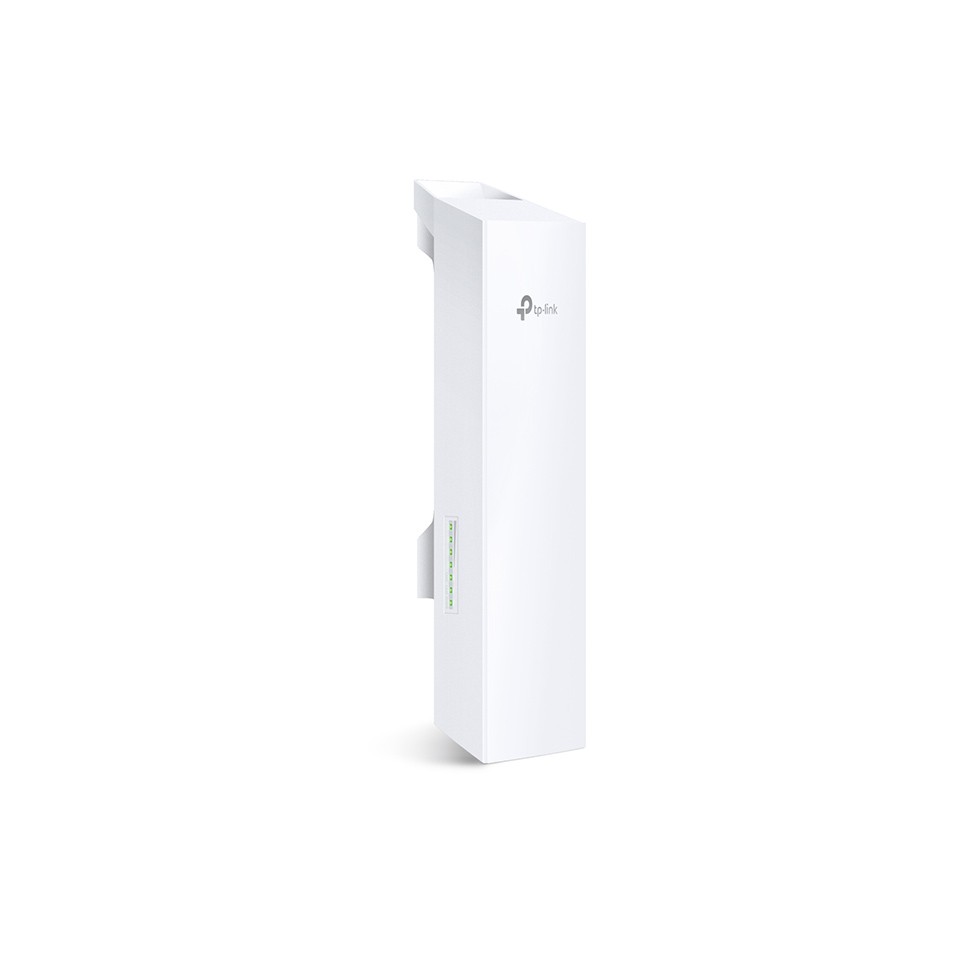

Gambar produk
