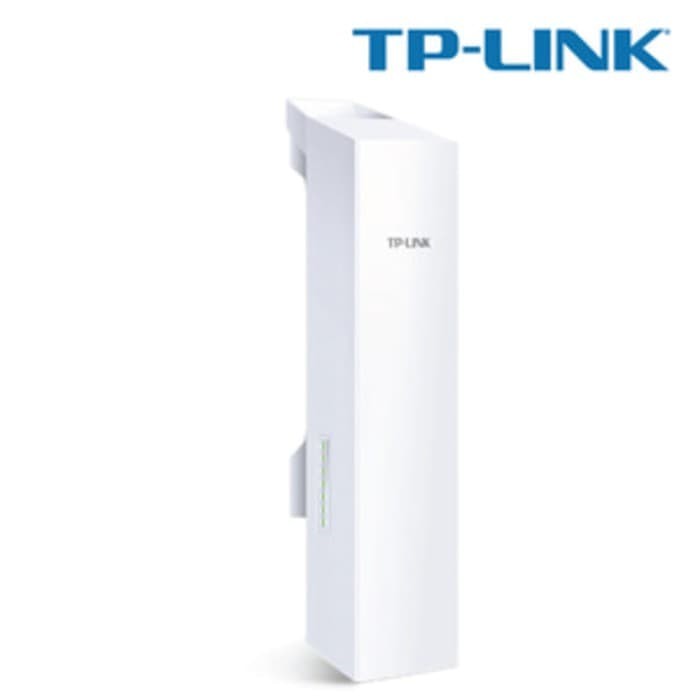

TP-LINK CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

Detail TP-LINK CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

TP-LINK CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE
Garansi 2Tahun

HARDWARE FEATURES
Processor : Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory : 64MB DDR2 RAM, 8MB Flash
Interface :
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
Power Supply : Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ) : 113.12.1 inch (2767960 mm)
Antenna Type : Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60 (H-Plane) / 30 (E-Plane)
Note: For more details, please refer to datasheet
Protection :
15KV ESD Protection
6KV Lightning Protection
Enclosure Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

WIRELESS FEATURES
Frequency : 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations
of the countries or regions in which the device is used.

Transmission Power : 30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending
on the limitations of the countries or regions in which the device is used.

POE ADAPTER FEATURES
Dimensions(W x D x H) : 1105733.5mm
Input Current : 0.8A Max @ 100VAC
Input Voltage : 100VA~240VAC @ 50Hz~60Hz

OTHERS
Certification : CE, FCC, RoHS, IPX5

Gambar produk
