Tp link cp 210 outdoor router wifi 2.4 ghz

Detail Tp link cp 210 outdoor router wifi 2.4 ghz

Processor : Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory : 64MB DDR2 RAM, 8MB Flash
Interface :
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 Grounding Terminal
1 Reset Button
Power Supply : Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption :
10.5 Watts Max
Antenna Type :
Built-in 9dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 65° (H-Plane) / 40° (E-Plane)
Note: For more details, please refer to datasheet
Protection :
15KV ESD Protection
6KV Lightning Protection
Enclosure :
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
Wireless Standards : IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds :
- Up to 300Mbps (40MHz,Dynamic)
- Up to 144.4Mbps (20MHz,Dynamic)
- Up to 72.2Mbps (10MHz,Dynamic)
- Up to 36.1Mbps (5MHz,Dynamic)
Frequency :
2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power :
27dBm/500mw (Adjustable power by 1dBm)
Interfaces :
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
Button : Remote Reset Button
Power Status LEDs : Green
Input : 100-240VAC, 50/60Hz
Output :
24VDC, 0.25A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

GARANSI RESMI 1 TAHUN

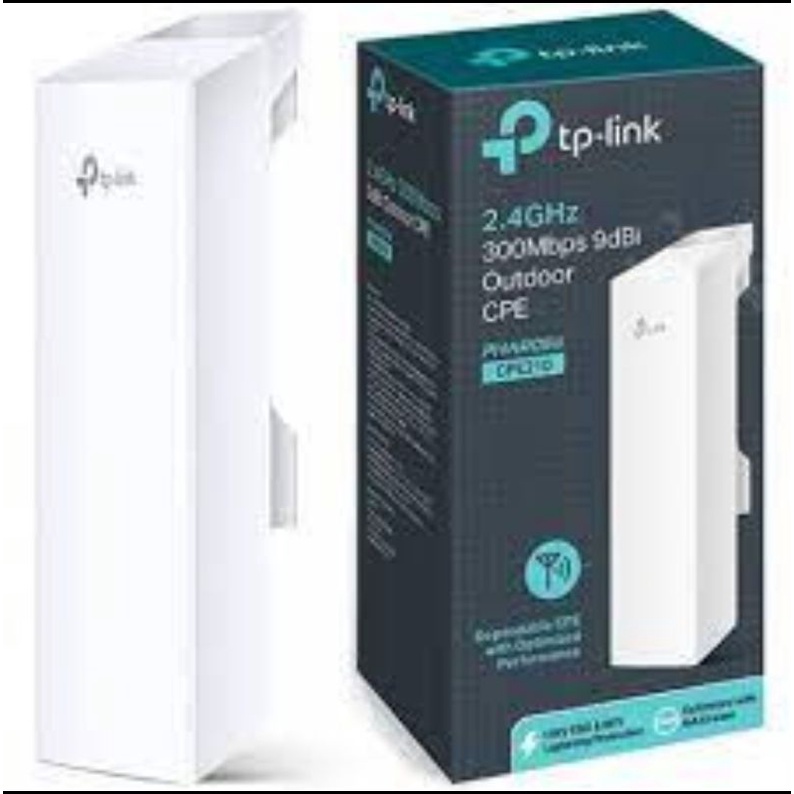

Gambar produk
