TP-LINK Archer C64 AC1200 Wireless MU-MIMO WiFi Router TPLINK

Detail TP-LINK Archer C64 AC1200 Wireless MU-MIMO WiFi Router TPLINK

TPLink Archer C64 , AC1200 Wireless MU-MIMO WiFi Router,Full Gigabit Ethernet

- 802.11ac Wave2 WiFi – 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band†
- Boosted WiFi Coverage – 4 external antennas provide stable wireless connections and optimal coverage
- MU-MIMO – Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once‡
- Beamforming – Beamforming technology delivers a highly efficient wireless connection
- AP Mode – Supports Access Point mode to create a new WiFi access point
- Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage
- Easy Setup – Easy network management at your fingertips with TP-Link Tether

Specifications
WIRELESS
Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation
Working Modes Router Mode
Access Point Mode

HARDWARE
Processor 1.2 GHz CPU
Ethernet Ports:
1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons WPS/Reset Button
Power 12V = 1A

SECURITY
WiFi Encryption:
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Network Security:
SPI Firewall
Access Control
IP and MAC Binding

Guest Network:
1× 2.4 GHz Guest Network
1× 5 GHz Guest Network

SOFTWARE
Protocols:
IPv4
IPv6

Parental Controls:
URL Filtering
Time Controls

WAN Types:
Dynamic IP
Static IP
PPPoE(Dual Access)
PPTP(Dual Access)
L2TP(Dual Access)

Quality of Service:
QoS by Device

Cloud Service:
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding:
Port Forwarding
Port Triggering
UPnP
DMZ

IPTV :
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP:
Server
DHCP Client List
Address Reservation

DDNS :
TP-Link
NO-IP
DynDNS

Management:
Tether App
Webpage
Check Web Emulator>

OTHER
System Requirements :
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)

Certifications :
CE, RoHS

Environment :
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:
<20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5 GHz)

WiFi Reception Sensitivity
5 GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm

2.4 GHz:
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT20 MCS7:-77dBm
11n HT40 MCS7:-74dBm
11ac VHT20 MCS8:-73dBm
11ac VHT40 MCS9:-68dBm
PHYSICAL
Dimensions (W×D×H) 4.7 × 4.7 × 1.1 in
(120 × 120 × 27.9 mm)

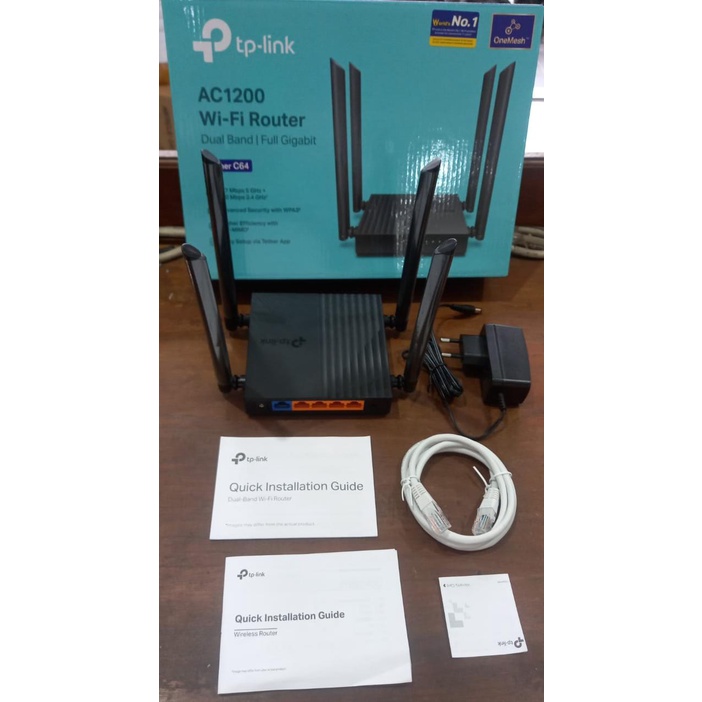

Package Contents :
Wireless Router Archer C64
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
#TPLINK#ARCHER#C64#DUAL_BAND
