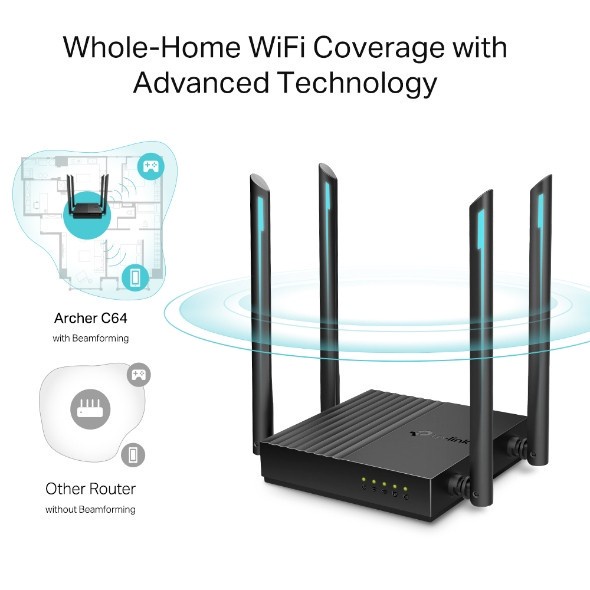

802.11ac Wave2 WiFi – 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band† Boosted WiFi Coverage – 4 external antennas provide stable wireless connections and optimal coverage MU-MIMO – Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once‡ Beamforming – Beamforming technology delivers a highly efficient wireless connection AP Mode – Supports Access Point mode to create a new WiFi access point Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage Easy Setup – Easy network management at your fingertips with TP-Link Tether WIRELESS Standards Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) WiFi Range 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity Medium Dual-Band Allocate devices to different bands for optimal performance
MU-MIMO Simultaneously communicates with multiple MU-MIMO clients

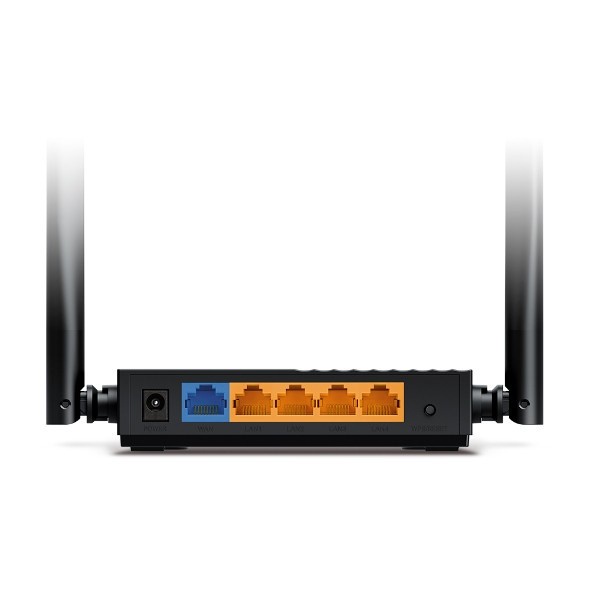

Airtime Fairness Improves network efficiency by limiting excessive occupation Working Modes Router Mode Access Point Mode HARDWARE Processor 1.2 GHz CPU Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN Ports Buttons WPS/Reset Button Power 12V = 1A SECURITY WiFi Encryption WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) Network Security SPI Firewall Access Control IP and MAC Binding Guest Network 1× 2.4 GHz Guest Network 1× 5 GHz Guest Network SOFTWARE Protocols IPv4 IPv6 Parental Controls URL Filtering Time Controls WAN Types Dynamic IP Static IP PPPoE(Dual Access) PPTP(Dual Access) L2TP(Dual Access) Quality of Service QoS by Device Cloud Service OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding Port Triggering UPnP DMZ IPTV IGMP Prox
