TOWERPRO MOTOR SERVO MG996R MG996 METAL GEAR UPGRADE MG995

Detail TOWERPRO MOTOR SERVO MG996R MG996 METAL GEAR UPGRADE MG995

P/N : MTR-0007

HARAP BACA DESKRIPSI


barang yang kami jual sudah melalui QC pabrik untuk jaminan kualitas dan fungsi. tidak ada garansi untuk barang yang kami jual, kecuali kesalahan kirim barang atau kekurangan barang dapat diselesaikan melalui diskusi. membeli berarti setuju dengan ketentuan ini.
=============

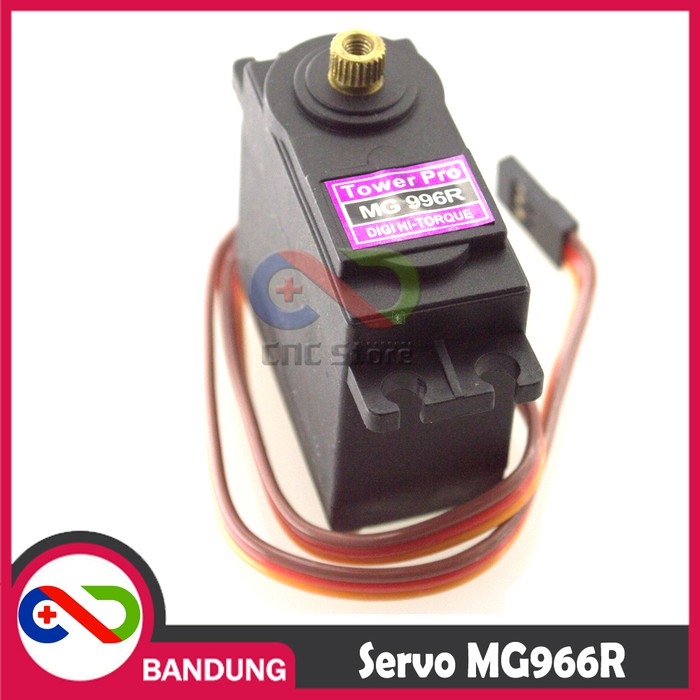

This High-Torque MG996R Digital Servo features metal gearing resulting in extra high 10kg stalling torque in a tiny package. The MG996R is essentially an upgraded version of the famous MG995 servo, and features upgraded shock-proofing and a redesigned PCB and IC control system that make it much more accurate than its predecessor. The gearing and motor have also been upgraded to improve dead bandwith and centering. The unit comes complete with 30cm wire and 3 pin 'S' type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

This high-torque standard servo can rotate approximately 180 degrees (90 OFF). You can use any servo code, hardware or library to control these servos, so it's great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. The MG996R Metal Gear Servo also comes with a selection of arms and hardware to get you set up nice and fast!

Specifications :
- Weight: 55 g
- Dimension: 40.7 x 19.7 x 42.9 mm approx.
- Gear Type: All Metal Gears
- Stall torque: 9.4 kgfcm (4.8 V ), 11 kgfcm (6 V)
- Degree: max 180 degrees servo rotation
- Operating speed: 0.17 s/60 (4.8 V), 0.14 s/60 (6 V)
- Operating voltage: 4.8 V a 7.2 V
- Running Current 500 mA - 900 mA (6V)
- Stall Current 2.5 A (6V)
- Dead band width: 5us
- Stable and shock proof double ball bearing design
- Temperature range: 0C - 55C

Paket :

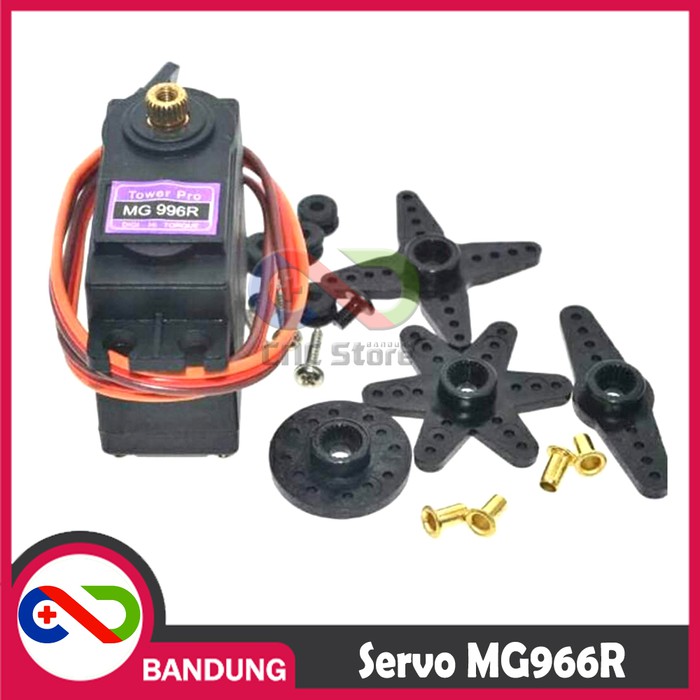

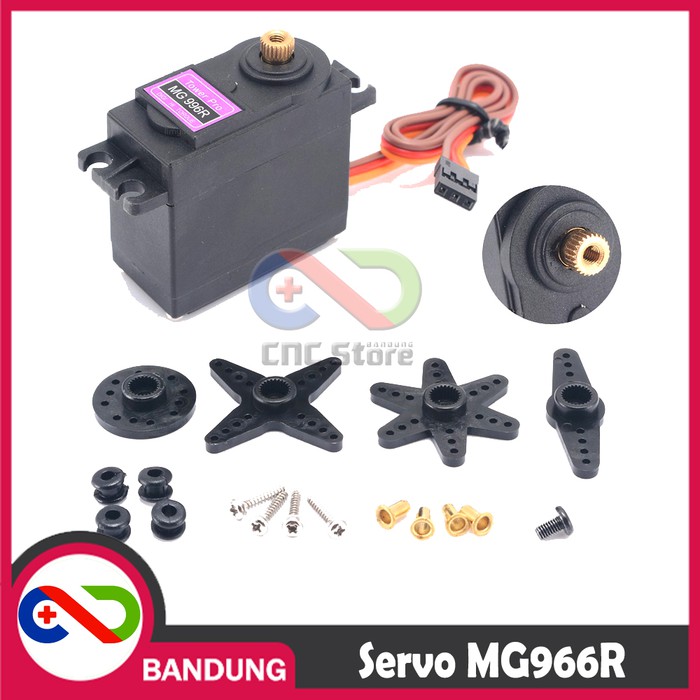

1. 1x Servo Motor TowerPro MG996R 180°

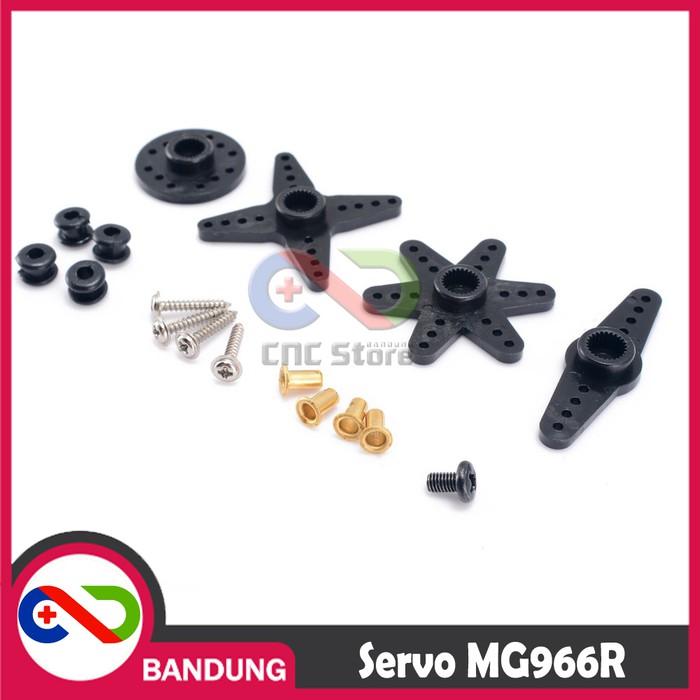

2. 1x set accesories
