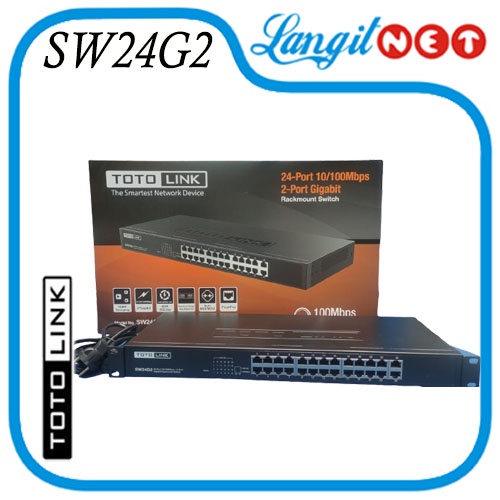

TOTOLINK SW24G2 Unmanaged Switch

Detail TOTOLINK SW24G2 Unmanaged Switch

Overview
SW24G2 is a Fast Ethernet Switch that designed for large home, SMB(Small and Medium Business) or workgroup users. It provides 24 10/100Mbps+2 10/100/1000Mbps ports and all ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, 19-inch rack-mountable steel case makes the device an ideal solution for business and office use.

Features
Complies with IEEE 802.3, IEEE 802.3u,IEEE 802.3ab, IEEE 802.3x standards
24 10/100Mbps+2 10/100/1000Mbps autonegotiated RJ45 ports
Supports IEEE 802.3x flow control for full duplex mode and backpressure for halfduplex mode,dynamic LED indicator
16K entry MAC address table and automatic address learning
8.8Gbps Switching Capacity
Supports barrierfree full wire speed transmission
Supports Auto MDI/MDIX, no need crossover wires Transmission adopts store-and-forward mechanism to provide full wire-speed forwarding rate to ensure data integrity
Standard 19inch rack-mountable steel case

Package Contents :
- SW24G2 Rackmount Switch *1
- Power Cord *1
- Rackmount Kit $2
- Quick Installation Guide *1

Specifications :
Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface : 24x10/100Mbps+2-Port 10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
Network Media :
10BASE-T: UTP Cat 3, 4, 5 cable
100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable
Power Supply : AC 100-240V,50/60Hz,0.6A
Backup Bandwidth : 8.8Gbps
MAC Address Table : 16K
Multicast : Support IGMP Snooping
Transmission Method : Store-and-forward
LED : 1 Power, 26 LANs, 2*1000Mbps
Dimensions (LxWxH) : 440 x 180 x 44mm
Operating Temperature : 0C-40 C (32 F-104 F)
Storage Temperature : -40 C-70 C (-40 F-158 F)
